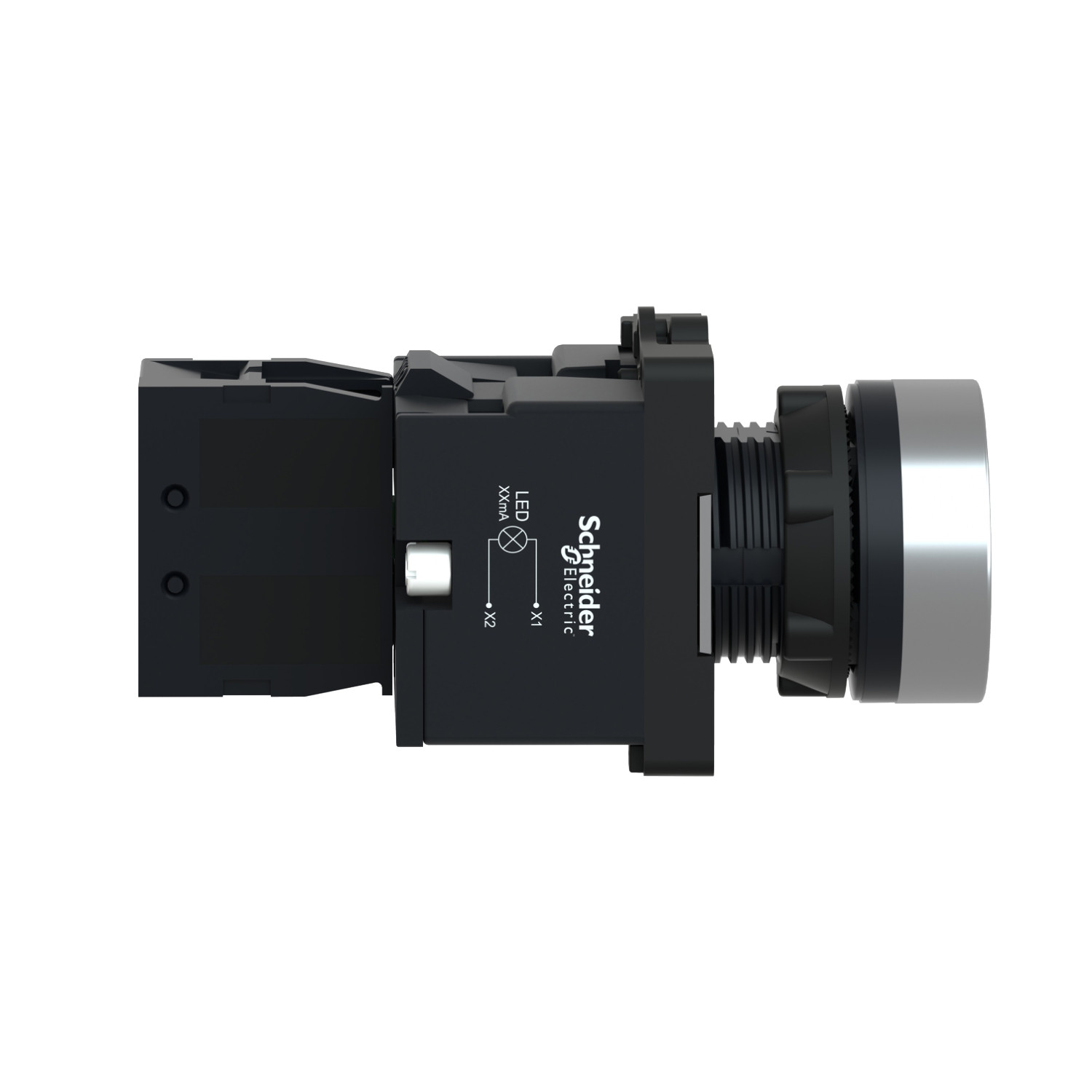

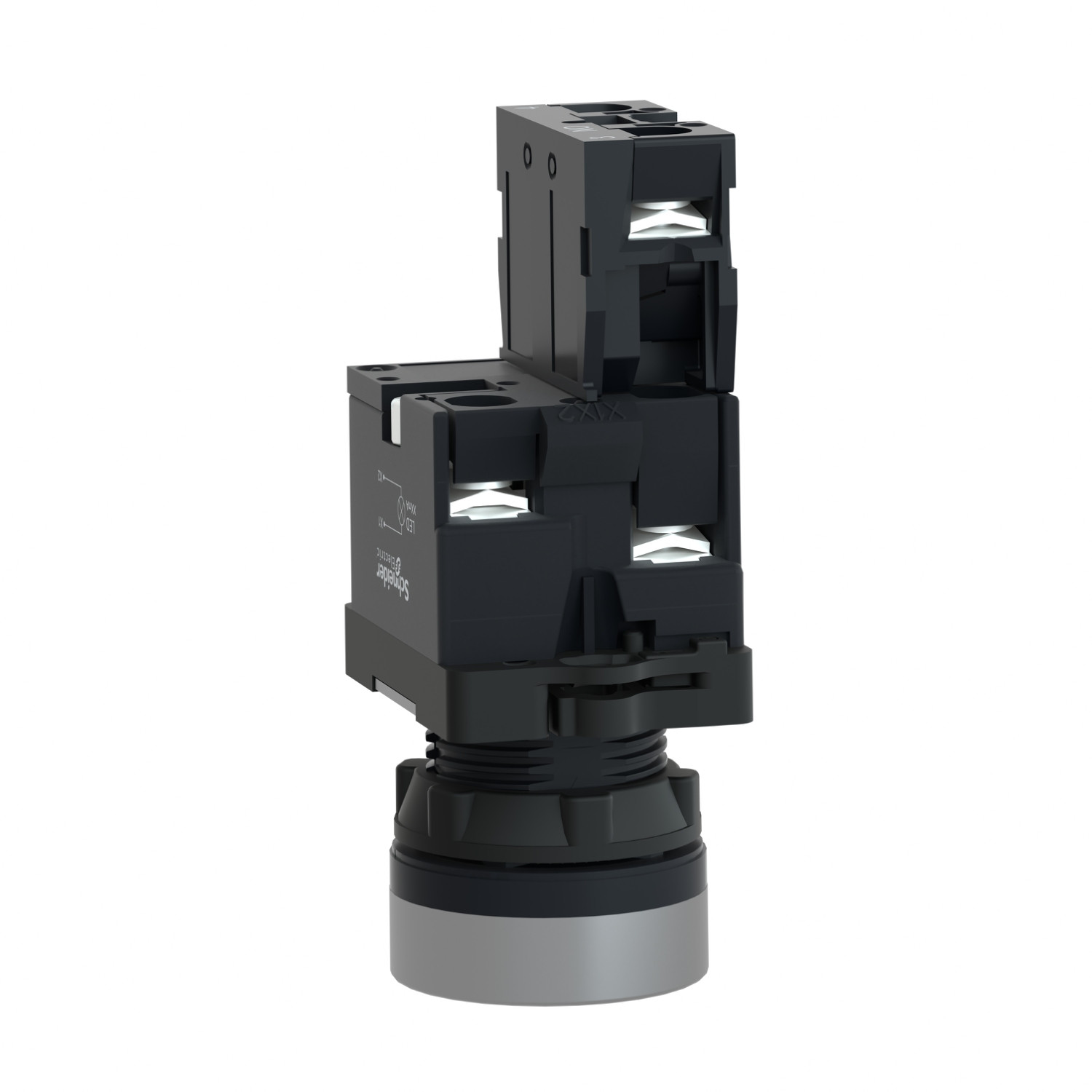

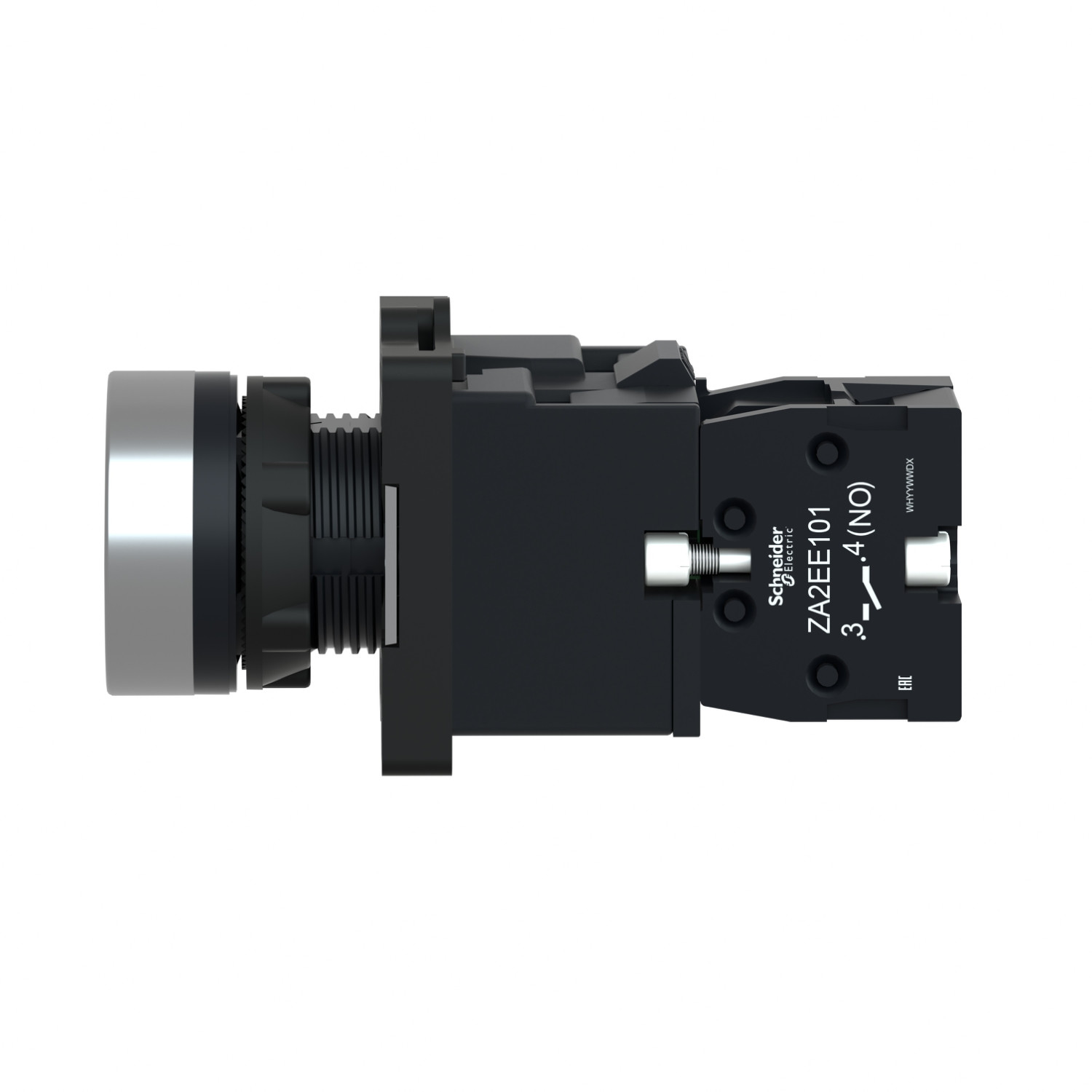

Schneider XA2EW31B1 Harmony | Complete Illuminated Push Button Ø22mm
1. Overview
The Schneider XA2EW31B1 Harmony is a complete illuminated push button from the Easy Harmony XA2 series, designed for industrial and automation control applications. It features a flush white actuator with integral LED illumination, ensuring clear visibility in various environments. With a 22mm mounting size, 24V AC/DC voltage rating, and a spring return mechanism, it provides reliable and efficient control operation.
2. Key Features
- Illuminated White Actuator: Enhances visibility in low-light conditions.
- Spring Return Mechanism: Automatically returns to its original position after being pressed.
- Flush Design: Provides a sleek and compact look for control panels.
- Standard Ø22mm Mounting: Compatible with most industrial setups.
- Durable Plastic Housing: Lightweight yet robust for long-lasting use.
- Reliable Contact Configuration: 1NO (Normally Open) for momentary control functions.
- Low Voltage Operation: Operates at 24V AC/DC for enhanced safety and versatility.
3. Technical Specifications
- Series: Easy Harmony XA2
- Type: Illuminated Push Button
- Material: Plastic
- Mounting Diameter: Ø22mm

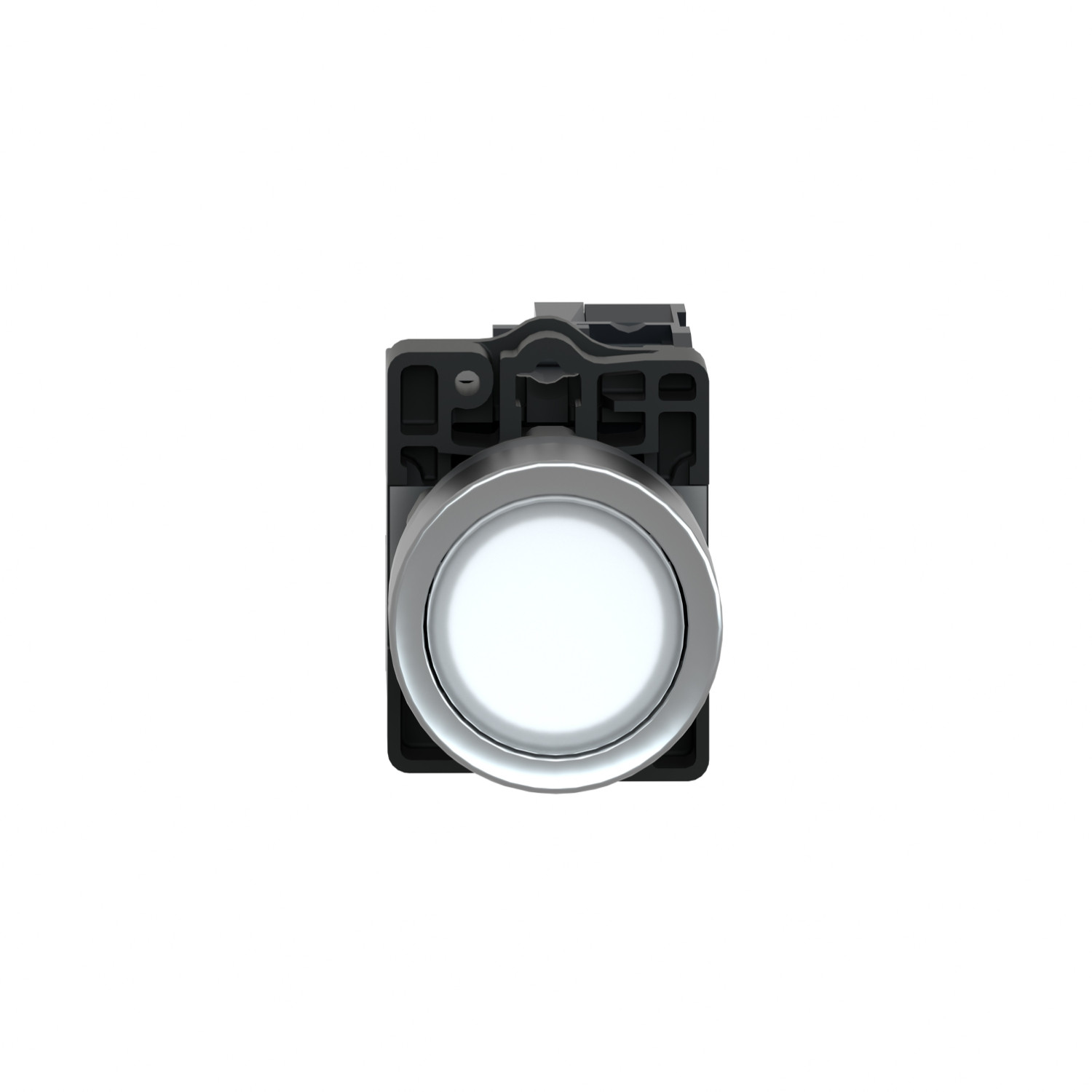

- Actuator Color: White
- Illumination Type: Integral LED
- Operating Voltage: 24V AC/DC
- Action Type: Spring Return (Momentary)

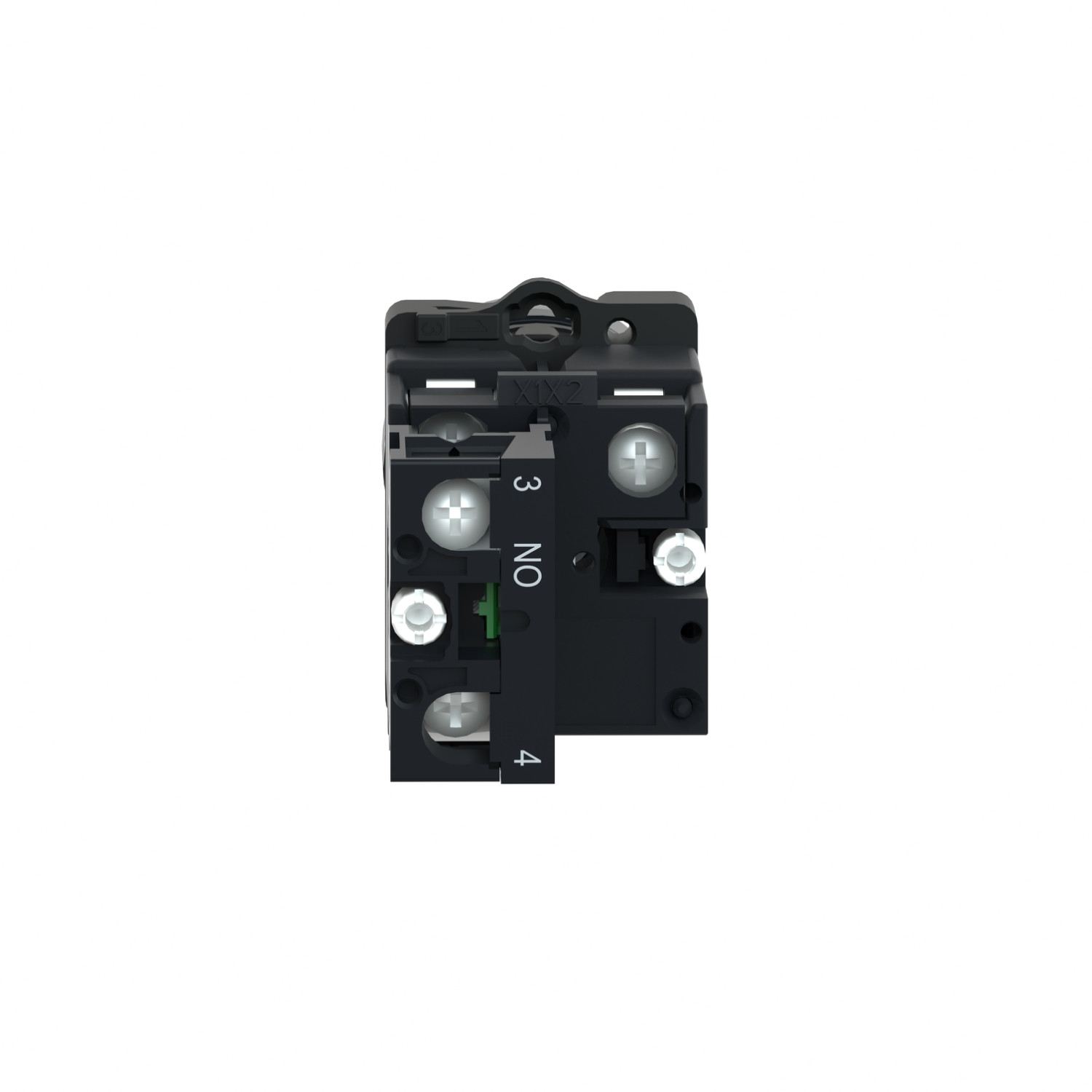

- Contact Type: 1NO (Normally Open)
4. Benefits
- Enhanced Visibility: Integrated LED provides clear operational status.
- Efficient Control: Ideal for start/stop functions in automation systems.
- Compact & Modern Design: Flush mount ensures a neat panel layout.
- Easy Installation: Standard Ø22mm size for quick panel integration.
- Reliable & Durable: Ensures long-term performance in industrial environments.
5. Applications
- Industrial Control Panels
- Manufacturing & Automation Systems
- Machine Start/Stop Operations
- Electrical & Process Control Equipment
6. Conclusion
The Schneider XA2EW31B1 Harmony is a high-quality, illuminated push button designed for reliable industrial control. With its flush white actuator, integral LED lighting, and 24V AC/DC compatibility, it ensures efficient operation, enhanced visibility, and easy integration into automation and control systems.
