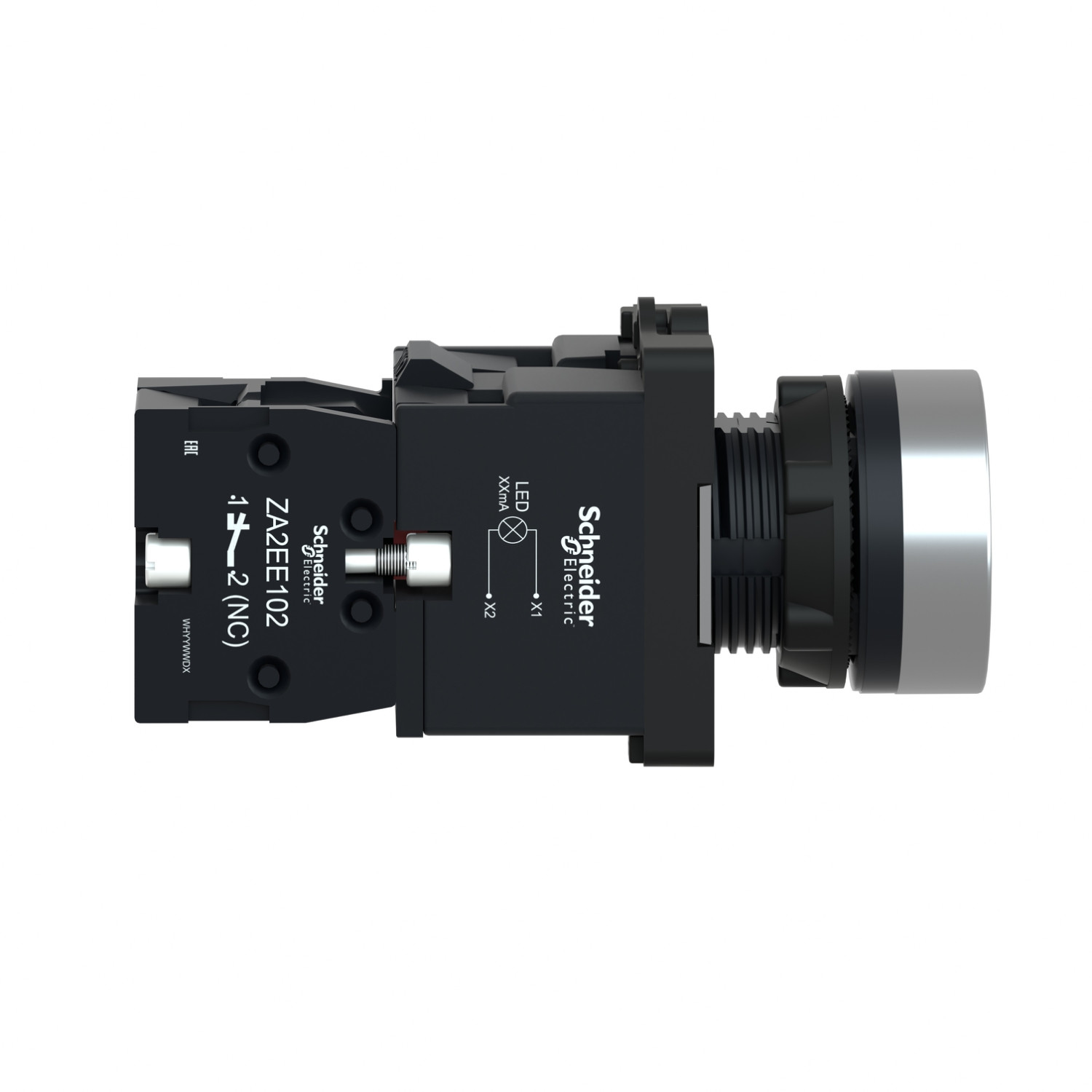

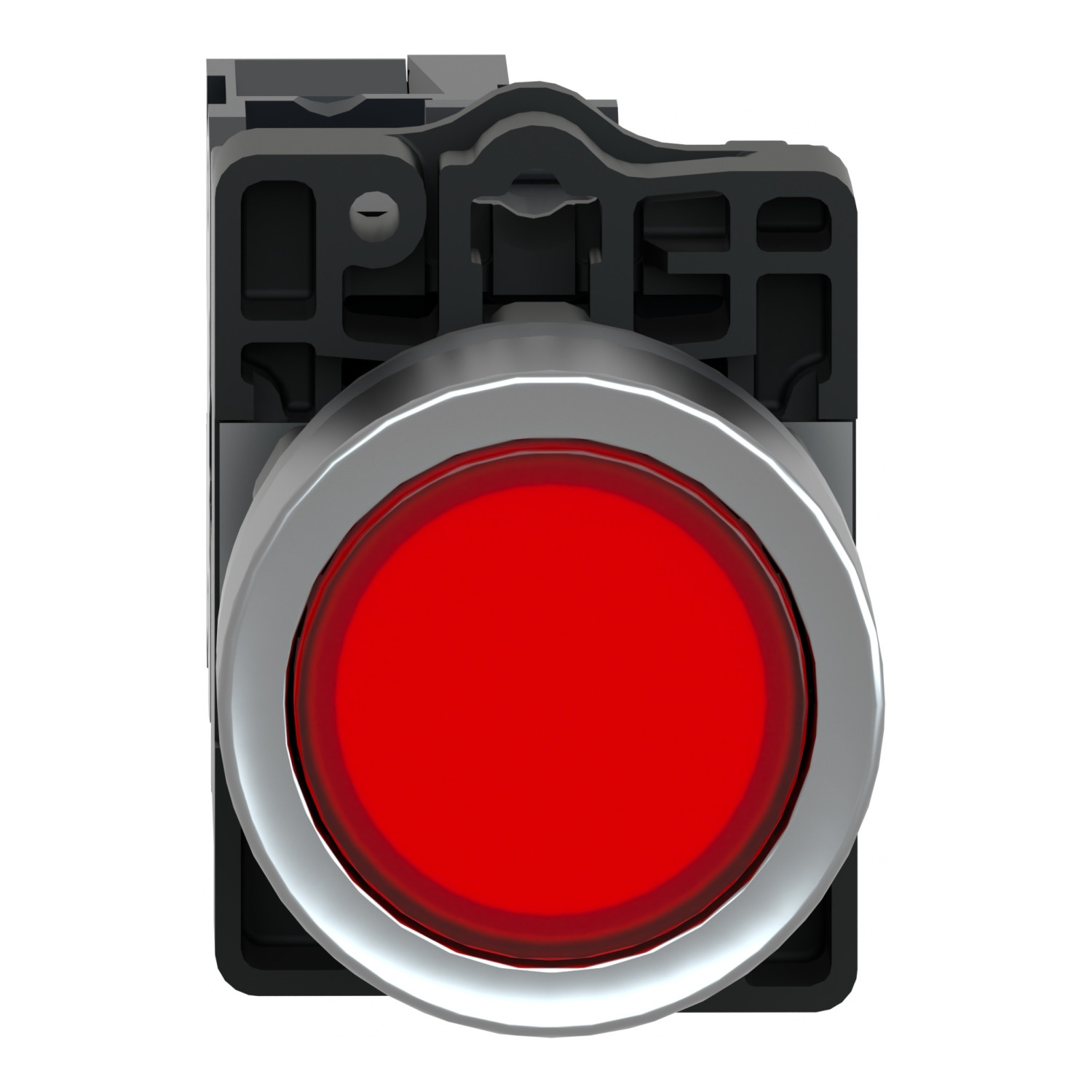

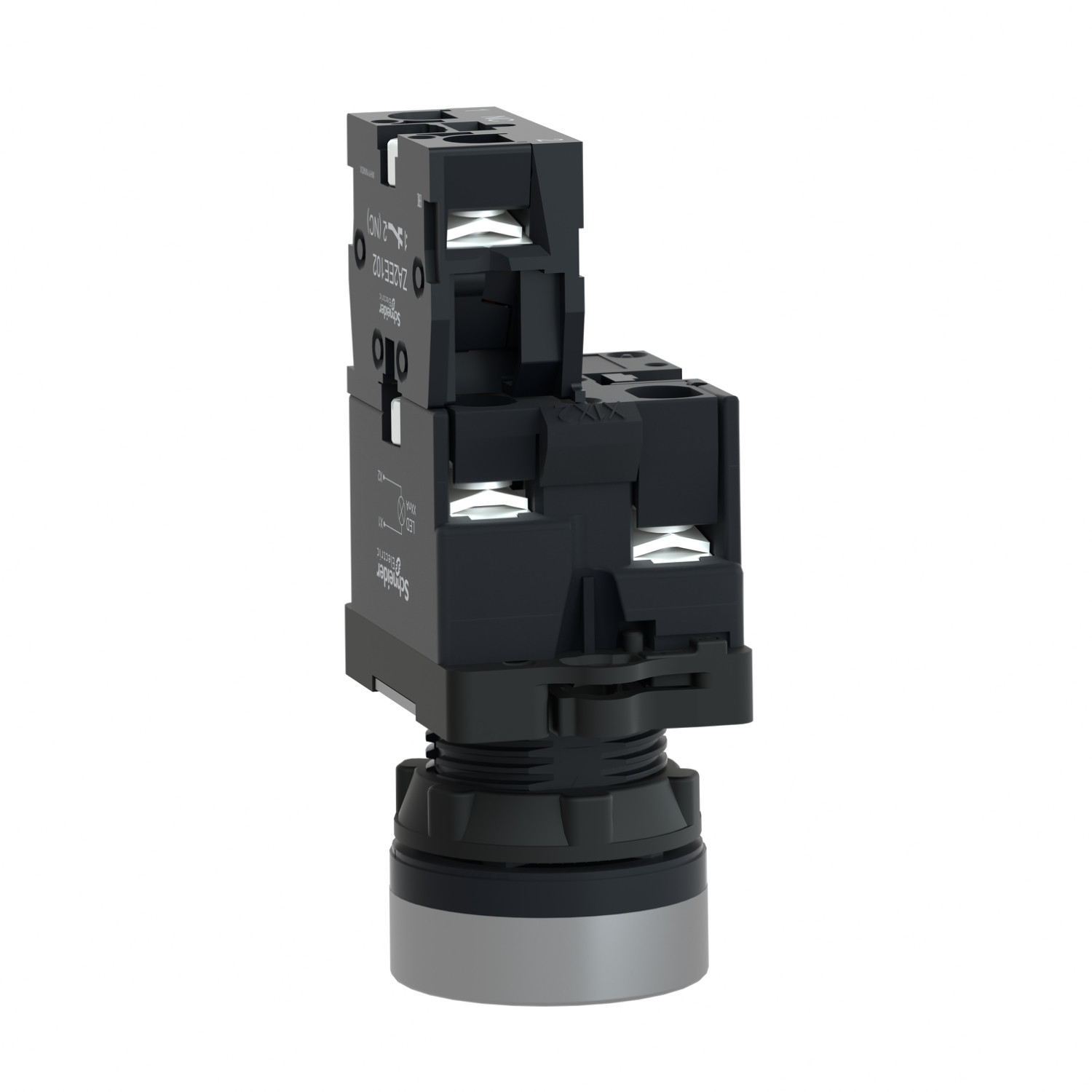

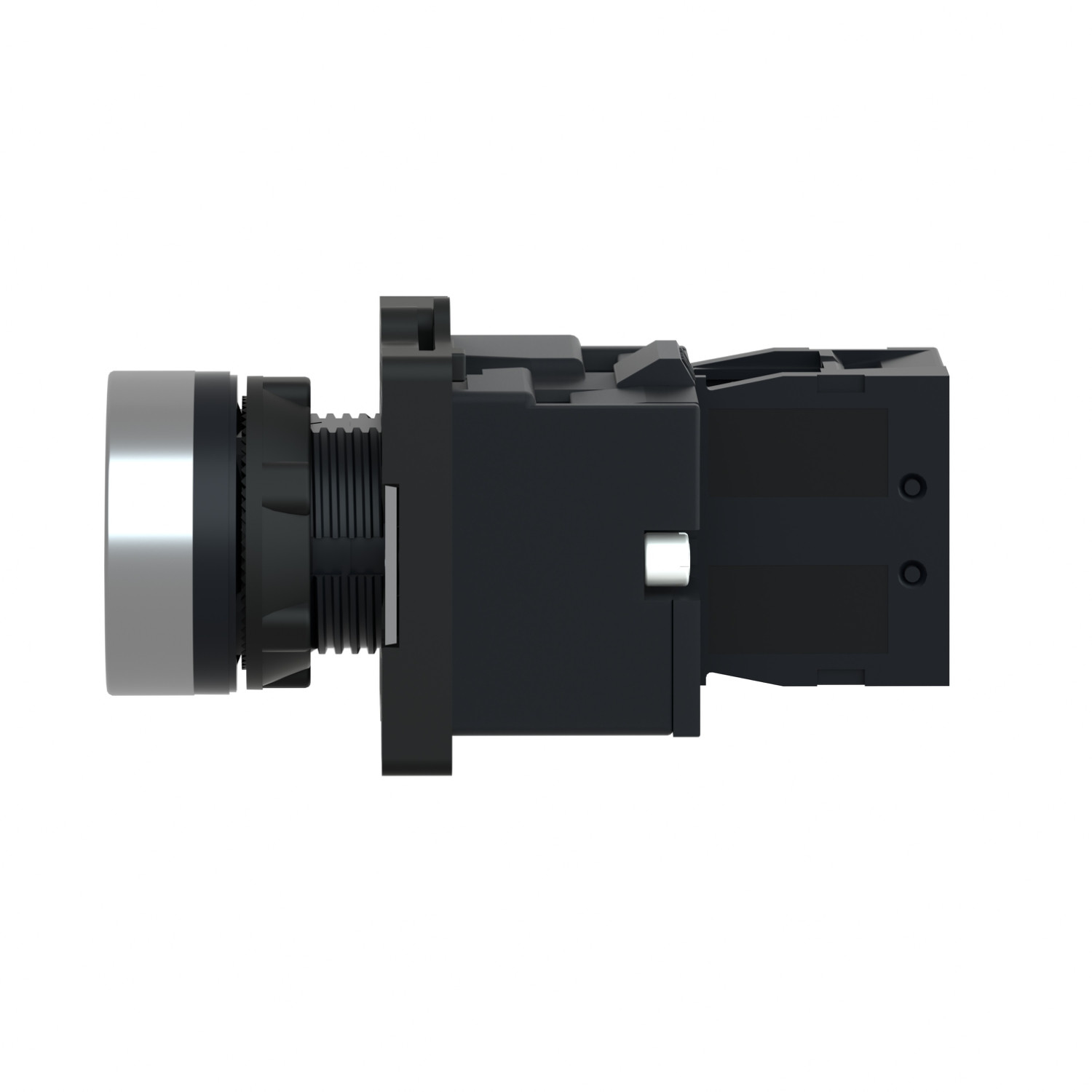

Schneider XA2EW34B2 Harmony | Complete Illuminated Push Button Ø22mm
1. Overview
The Schneider XA2EW34B2 Harmony is a complete illuminated push button designed for industrial control applications. It features a red flush actuator with an integrated LED, operating at 24V AC/DC. With a 22mm mounting diameter, a normally closed (1NC) contact, and spring return functionality, it ensures reliable control and signaling in industrial environments.
2. Key Features
- Illuminated Red Flush Button: Provides clear indication of system status.
- Integral LED Lighting: Ensures long-lasting, energy-efficient illumination.
- Flush Design: Sleek appearance and easy panel integration.
- Standard Ø22mm Mounting: Compatible with most industrial control panels.
- 1NC Contact Configuration: Suitable for stop or emergency stop functions.
- Spring Return Mechanism: Ensures the button returns to its original position after actuation.
- Operates at 24V AC/DC: Safe and efficient low-voltage operation.
3. Technical Specifications
- Series: Easy Harmony XA2
- Type: Complete Illuminated Push Button
- Material: Plastic
- Mounting Diameter: Ø22mm
- Actuator Color: Red
- Illumination Type: Integral LED
- Operating Voltage: 24V AC/DC
- Contact Type: 1 Normally Closed (1NC)
- Action Type: Momentary (Spring Return)
- Connection Type: Screw Clamp Terminals
4. Benefits
- Enhanced Visibility: Bright red illumination for clear signaling.
- Compact & Durable: Robust plastic construction for industrial use.
- Energy-Efficient: LED lighting for long-lasting operation.
- Reliable Performance: Secure and responsive switching mechanism.
- Easy Installation: Standard Ø22mm size for quick panel mounting.
5. Applications
- Industrial Control Panels
- Machine Stop or Emergency Stop Functions
- Process Control & Automation
- Electrical Safety & Signaling
6. Conclusion
The Schneider XA2EW34B2 Harmony is a high-quality illuminated push button that combines reliable control, clear signaling, and durable construction. With its flush design, red LED illumination, and 1NC contact, it is an ideal choice for industrial automation and safety applications.
