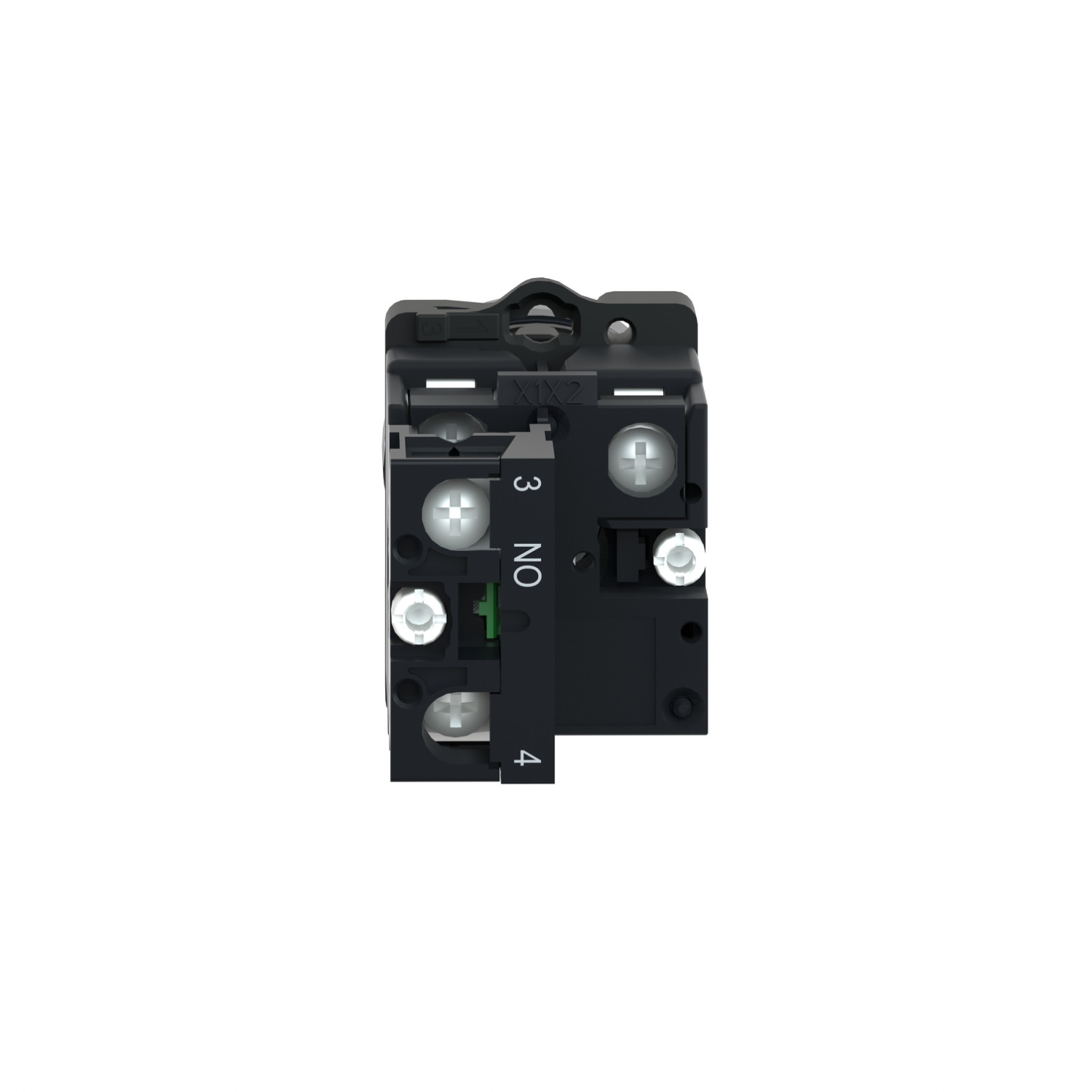

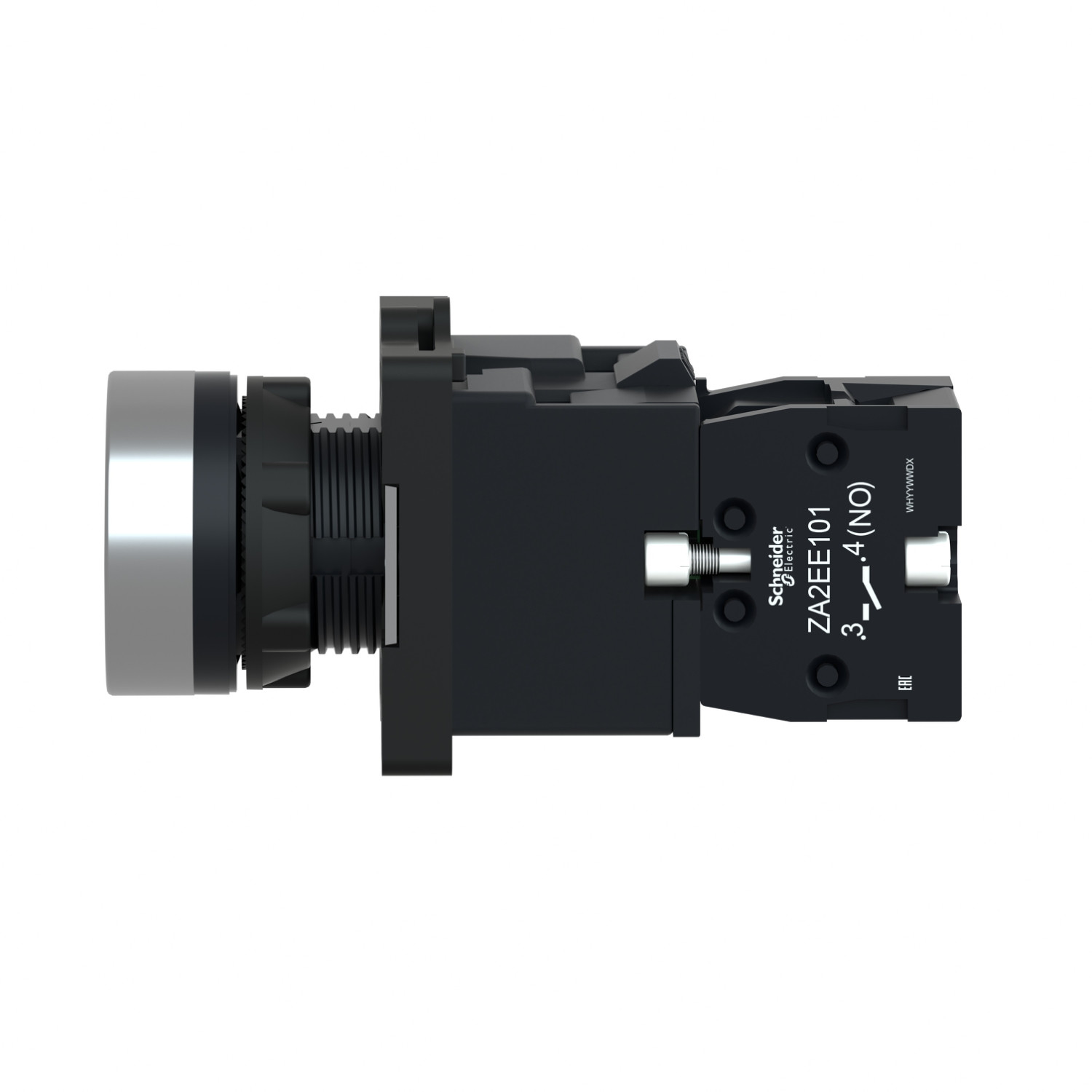

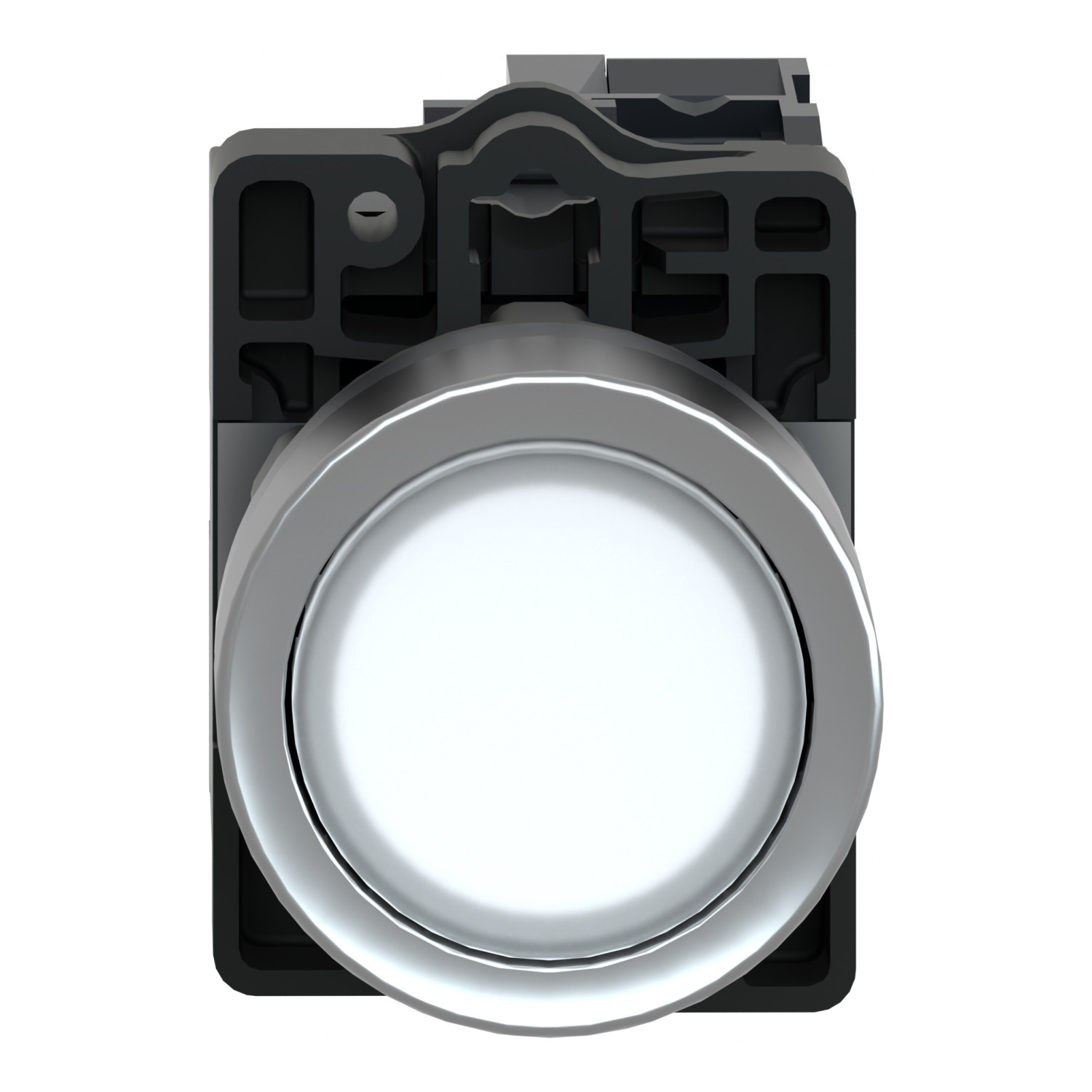

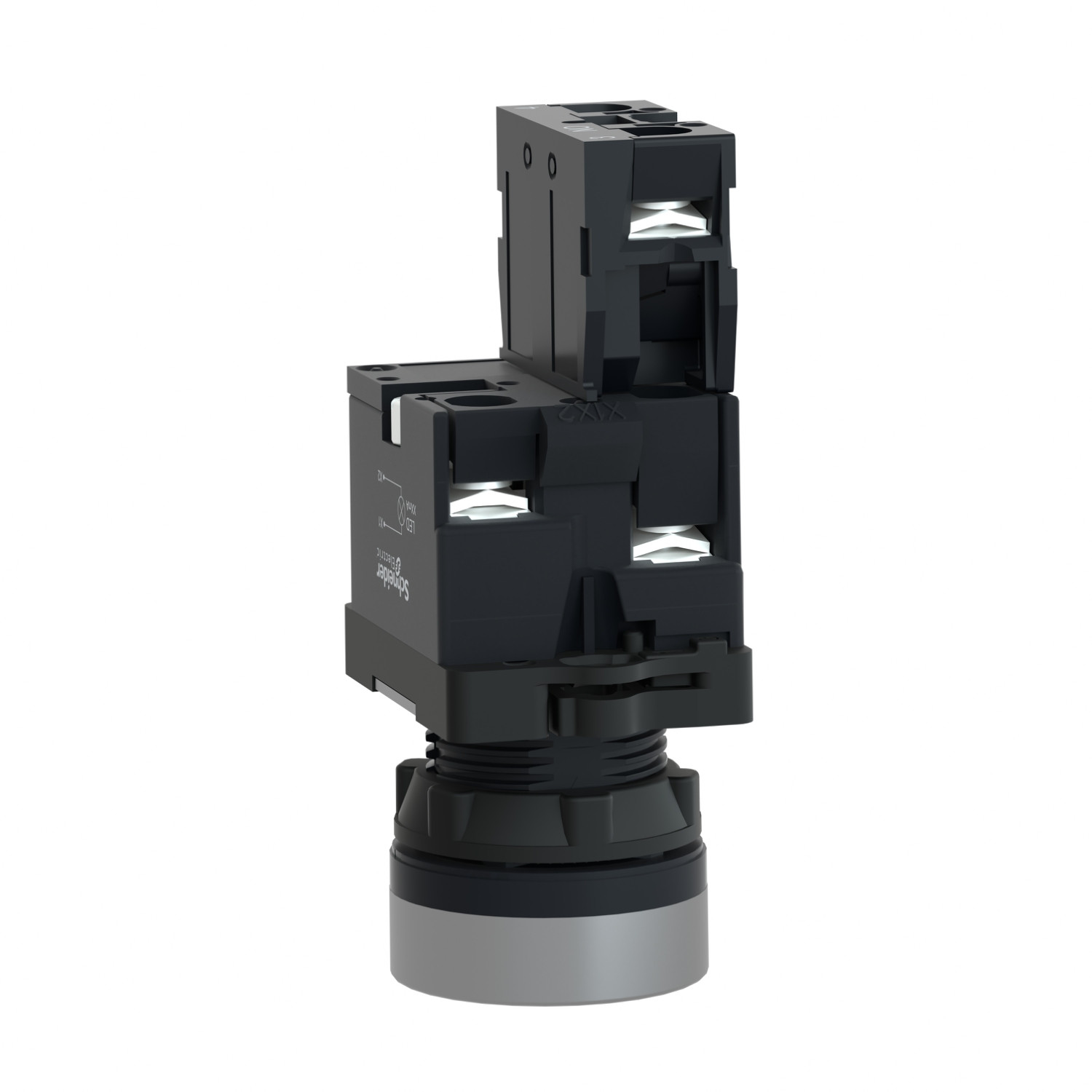

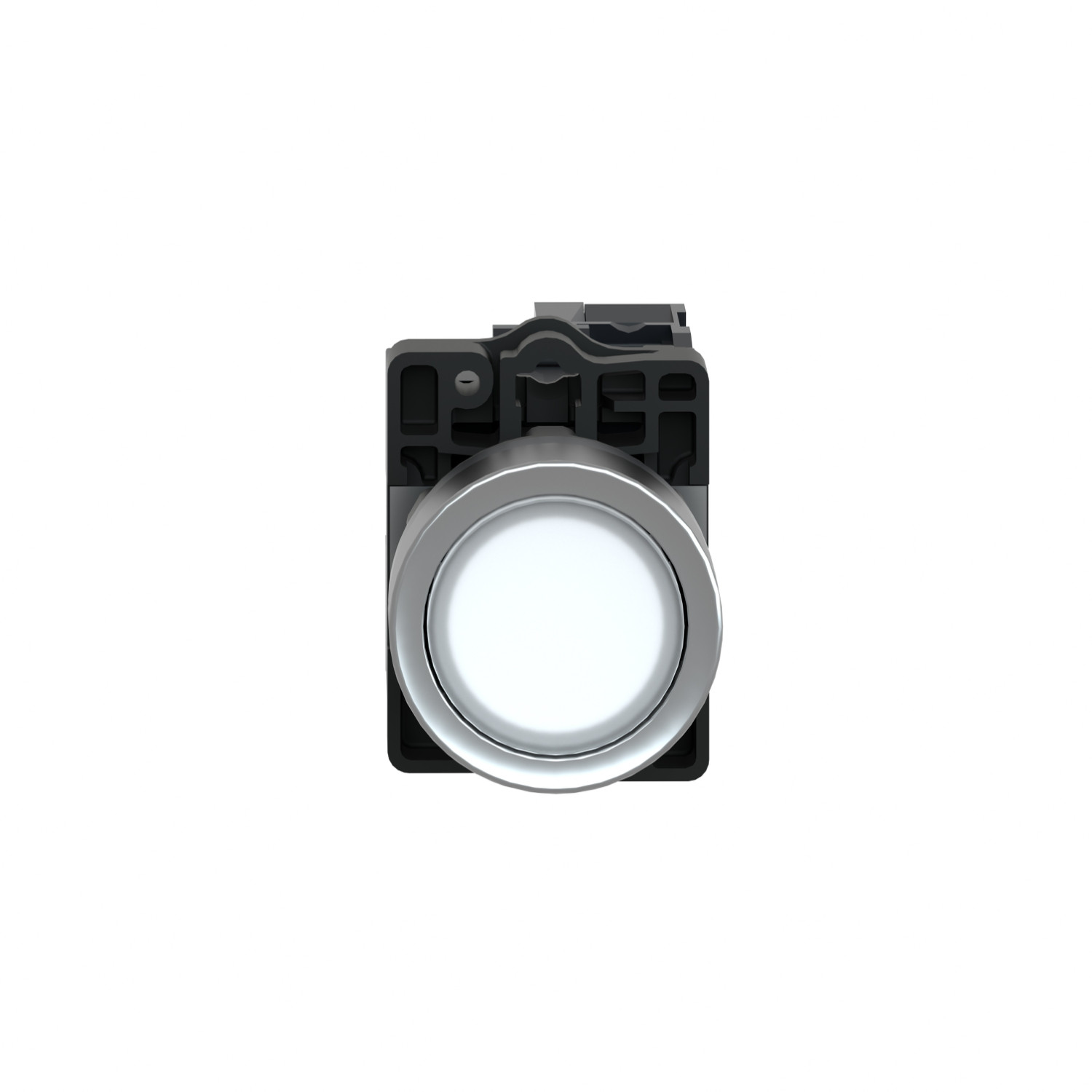

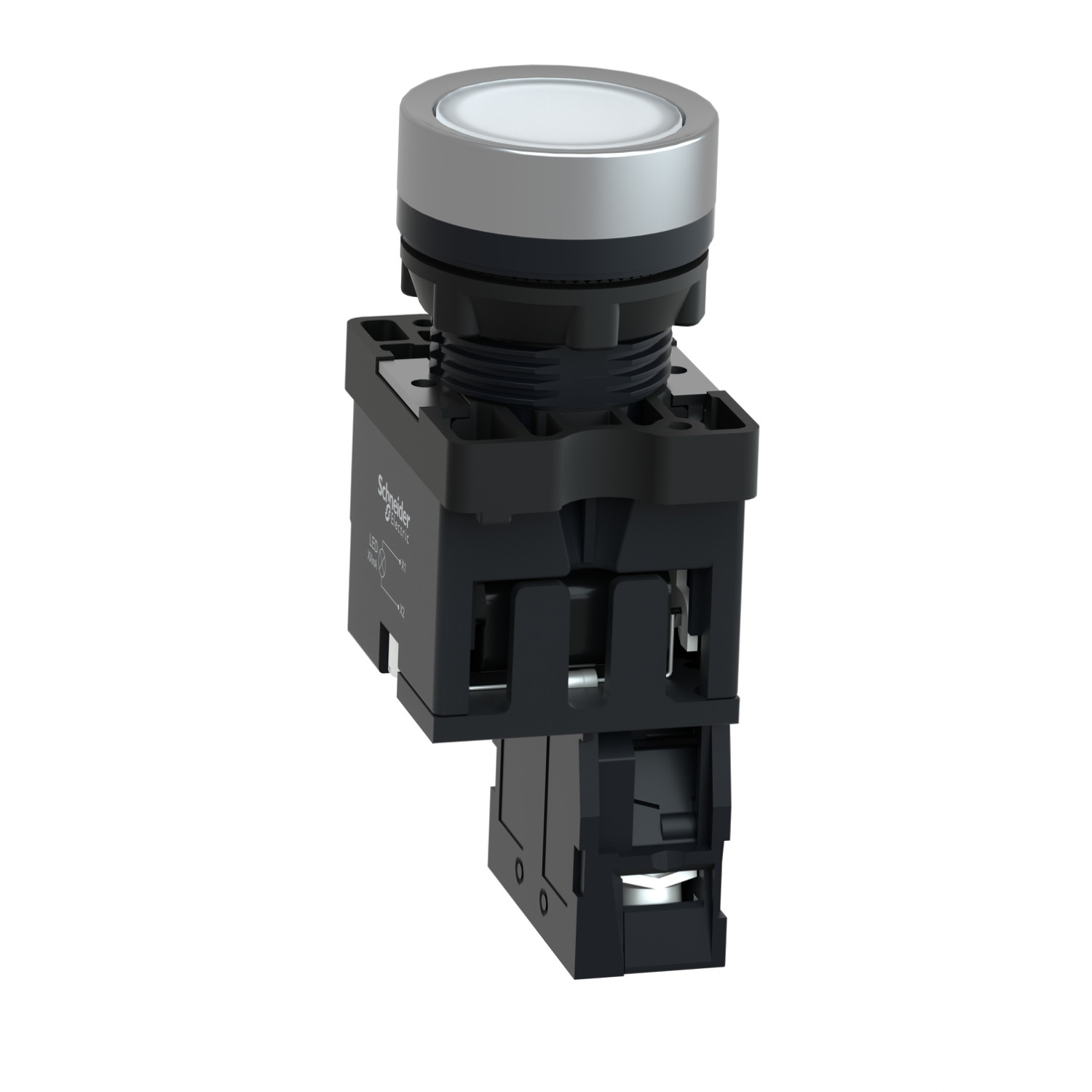

Schneider XA2EW31M1 Harmony | Complete Illuminated Push Button Ø22mm
1. Overview
The Schneider XA2EW31M1 Harmony is a complete illuminated push button from the Easy Harmony XA2 series, designed for industrial and automation control applications. It features a flush white actuator with integral LED illumination, ensuring clear visibility in various environments. With a 22mm mounting size, 220V AC voltage rating, and a spring return mechanism, it provides reliable control operation.
2. Key Features
- Illuminated White Actuator: Enhances visibility in low-light conditions.
- Spring Return Mechanism: Returns to its original position after being pressed.
- Flush Design: Sleek and compact for control panels.
- Standard Ø22mm Mounting: Compatible with most industrial panels.
- Durable Plastic Housing: Lightweight yet robust construction.
- Reliable Contact Configuration: 1NO (Normally Open) for momentary control functions.
3. Technical Specifications
- Series: Easy Harmony XA2
- Type: Illuminated Push Button
- Material: Plastic
- Mounting Diameter: Ø22mm
- Actuator Color: White
- Illumination Type: Integral LED
- Operating Voltage: 220V AC
- Action Type: Spring Return (Momentary)
- Contact Type: 1NO (Normally Open)
4. Benefits
- Enhanced Visibility: LED illumination provides clear indication of operation.
- Efficient Control: Ideal for start/stop functions in automation systems.
- Space-Saving Design: Flush mount ensures a neat panel layout.
- Easy Installation: Standard Ø22mm size fits most industrial setups.
- Reliable Performance: Ensures durability in demanding industrial environments.
5. Applications
- Industrial Control Panels
- Manufacturing & Automation Systems
- Machine Start/Stop Operations
- Electrical & Process Control Equipment
6. Conclusion
The Schneider XA2EW31M1 Harmony is a high-quality, illuminated push button designed for reliable industrial control. With its flush white actuator, integral LED lighting, and 220V AC compatibility, it provides enhanced visibility, efficiency, and ease of use in automation and machinery control applications.
