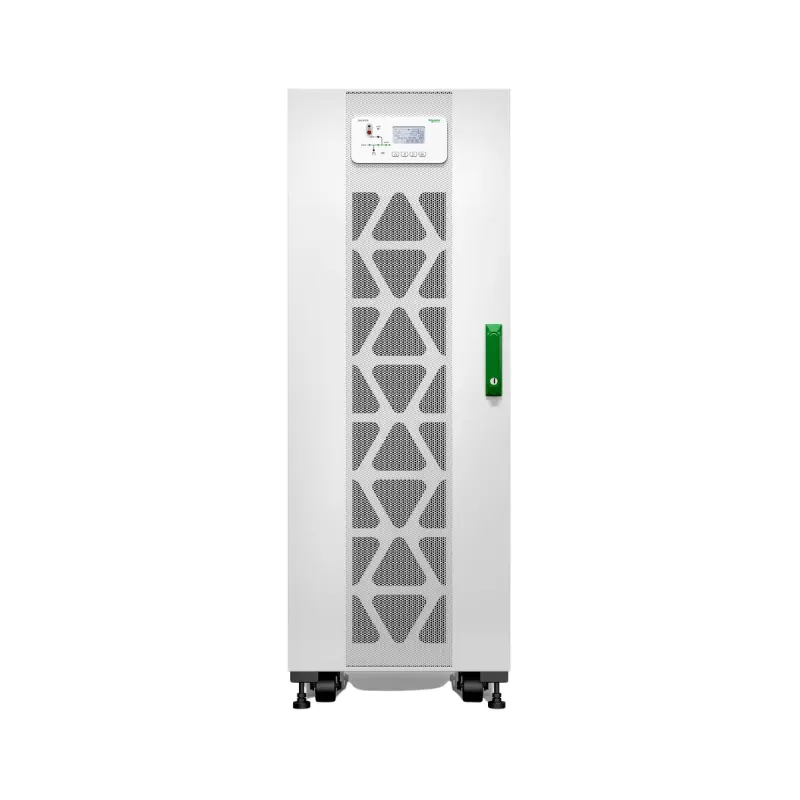

Schneider E3SUPS30KHB On-Line UPS, 30kVA/30kW, 3 Ph, 3S, 400V 3:3 UPS for internal batteries, Tower

Schneider E3SUPS30KHB On-Line UPS

30kVA/30kW, 3 Ph, 3S, 400V 3:3 UPS for internal batteries, Tower

Powerful and Reliable 30kVA Online UPS for Business Continuity:

Schneider Easy On-Line UPS 3S E3SUPS30KHB is a high-performance 3-phase uninterruptible power supply designed to deliver 30 kVA/30 kW of clean, continuous power.

Ideal for small and medium-sized businesses, this tower-form UPS supports mission-critical systems in data centers and electrical rooms.

Featuring double-conversion online topology, whereas it ensures stable power output regardless of input fluctuations,

that is making it a dependable solution for maintaining operations during power disturbances.

Schneider E3SUPS30KHB

Flexible Battery Configuration and Extended Runtime Options with Schneider E3SUPS30KHB On-Line UPS:

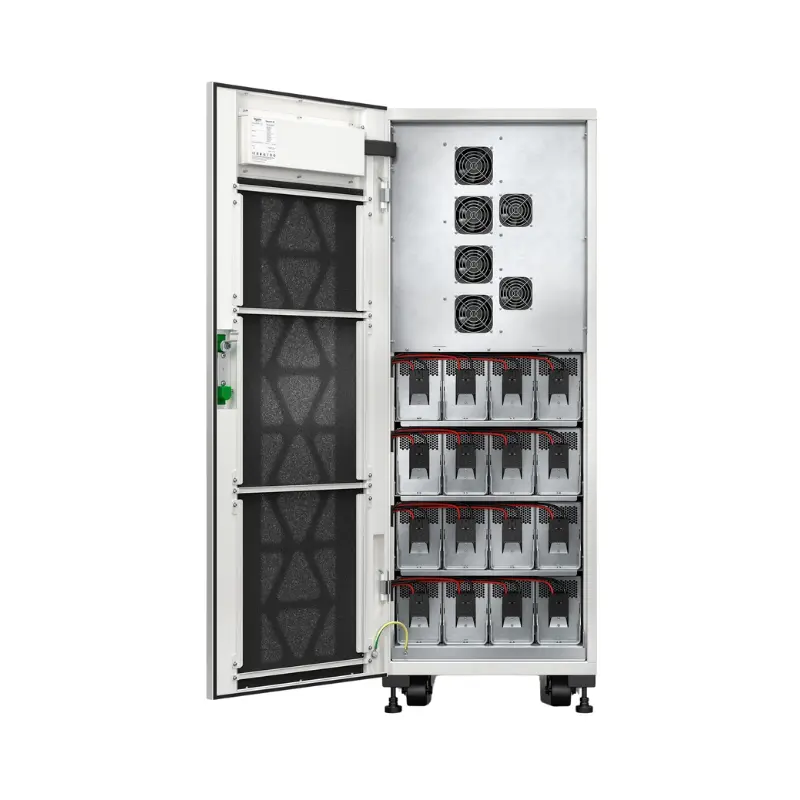

This Schneider uninterruptible power supply engineered for internal batteries and supports up to four battery modules,

that is offering flexibility to customize runtime according to business needs.

Though supplied without batteries, users can easily integrate compatible VRLA batteries to meet desired backup durations.

Extended runtime options are also available, and runtime charts can be accessed via the product’s documentation.

The 240V battery system supports seamless scalability and enhances long-term investment protection.

High Efficiency and Clean Power Delivery:

Besides an efficiency of up to 96% and input power factor of 0.99, the Easy UPS 3S minimizes energy loss and reduces operating costs.

It also supports input voltage ranges from 304V to 477V and maintains output voltage within ±1.5%,

whereas ensuring consistent, clean power.

Harmonic distortion is kept below 3% for both input and output, which is ideal for sensitive equipment and reduces strain on connected loads.

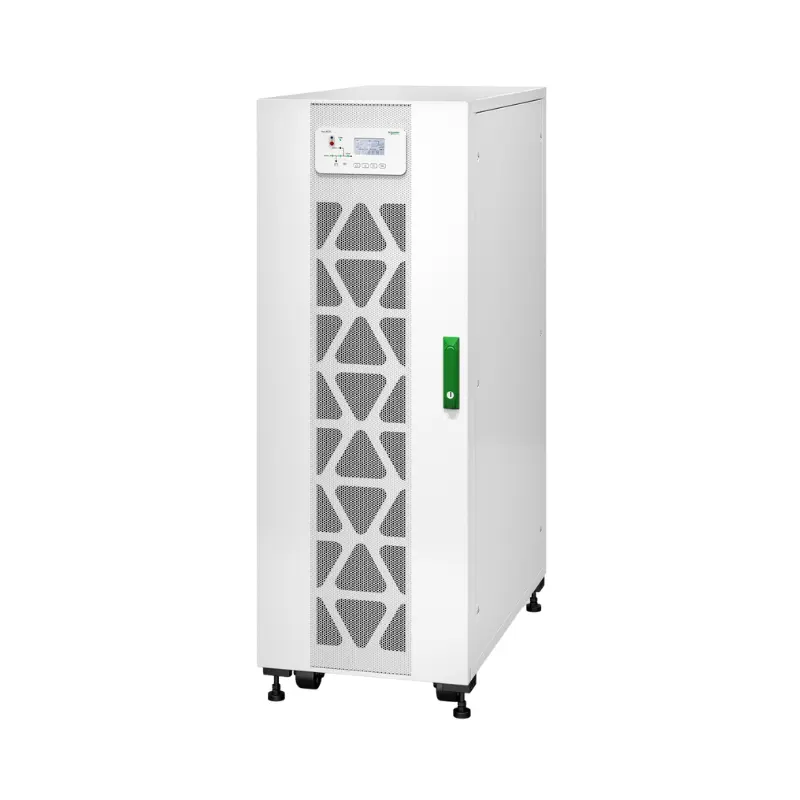

Schneider UPS device

Built for Ease of Use and Harsh Environments with Schneider E3SUPS30KHB On-Line UPS:

Designed with simplicity in mind, this UPS 3 phase is exceptionally easy to install, operate, and maintain.

It also includes a dust filter and conformal-coated circuit boards for added protection in demanding environments.

The compact tower design (140 cm height, 50 cm width, 96.9 cm depth) fits well in tight spaces,

and with a net weight of 152 kg, it is sturdy and stable.

Its IP20 rating ensures solid protection against solid objects like fingers or dust.

Advanced Features and Certifications:

Equipped with a USB interface and full compatibility with monitoring tools, the Easy UPS 3S enhances manageability.

Besides it is certified with CE, EAC, and RCM, ensuring global compliance and reliability.

The unit supports frequencies of 50/60 Hz (synchronized to mains), and operates efficiently across a wide temperature range (0–40 °C) and humidity levels (up to 95% non-condensing).

The UPS also includes a 2-year on-site warranty with authorized factory start-up.

Schneider UPS
