Schneider XB4BW73731M5 | Harmony Illuminated Double-Headed Push Button
1. Overview

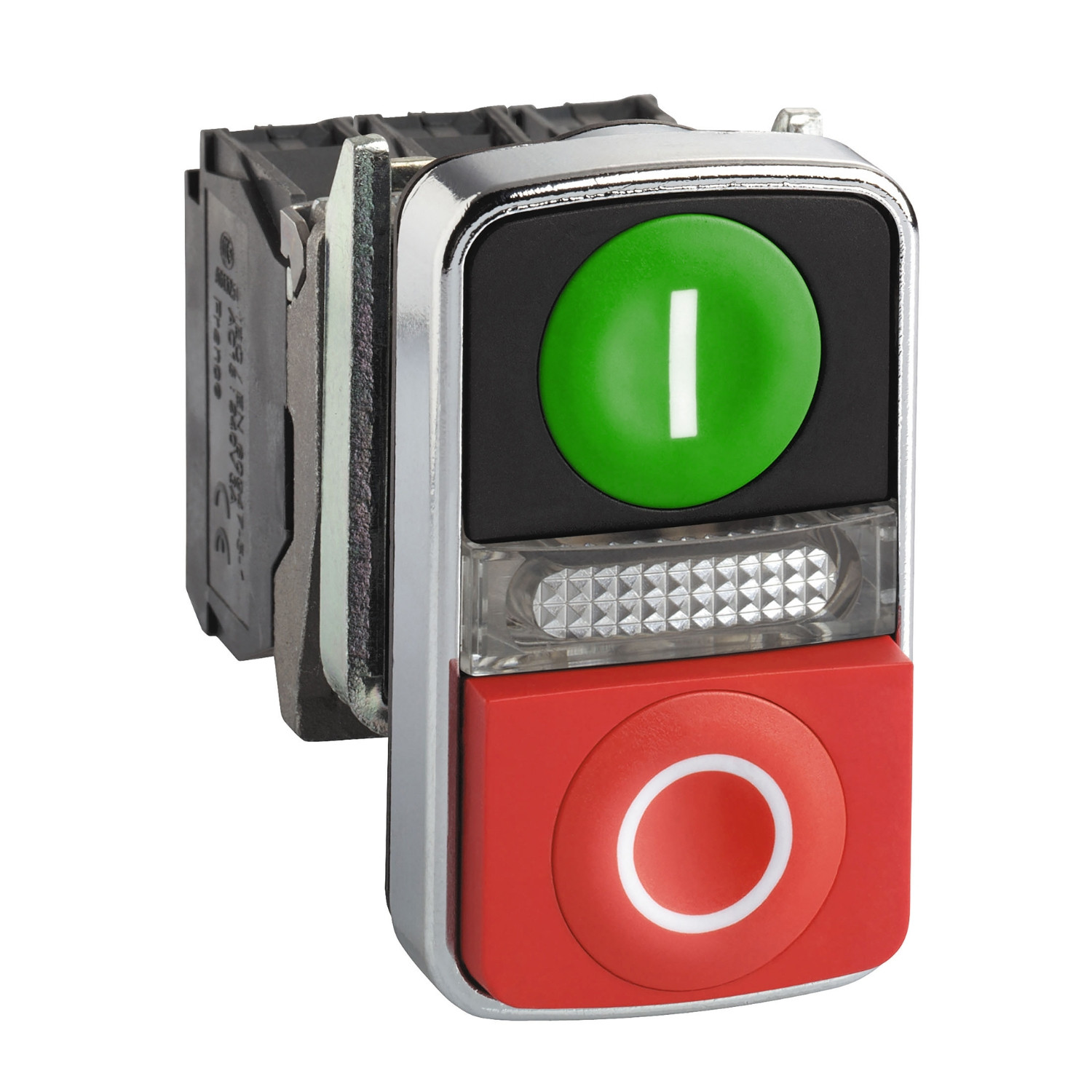

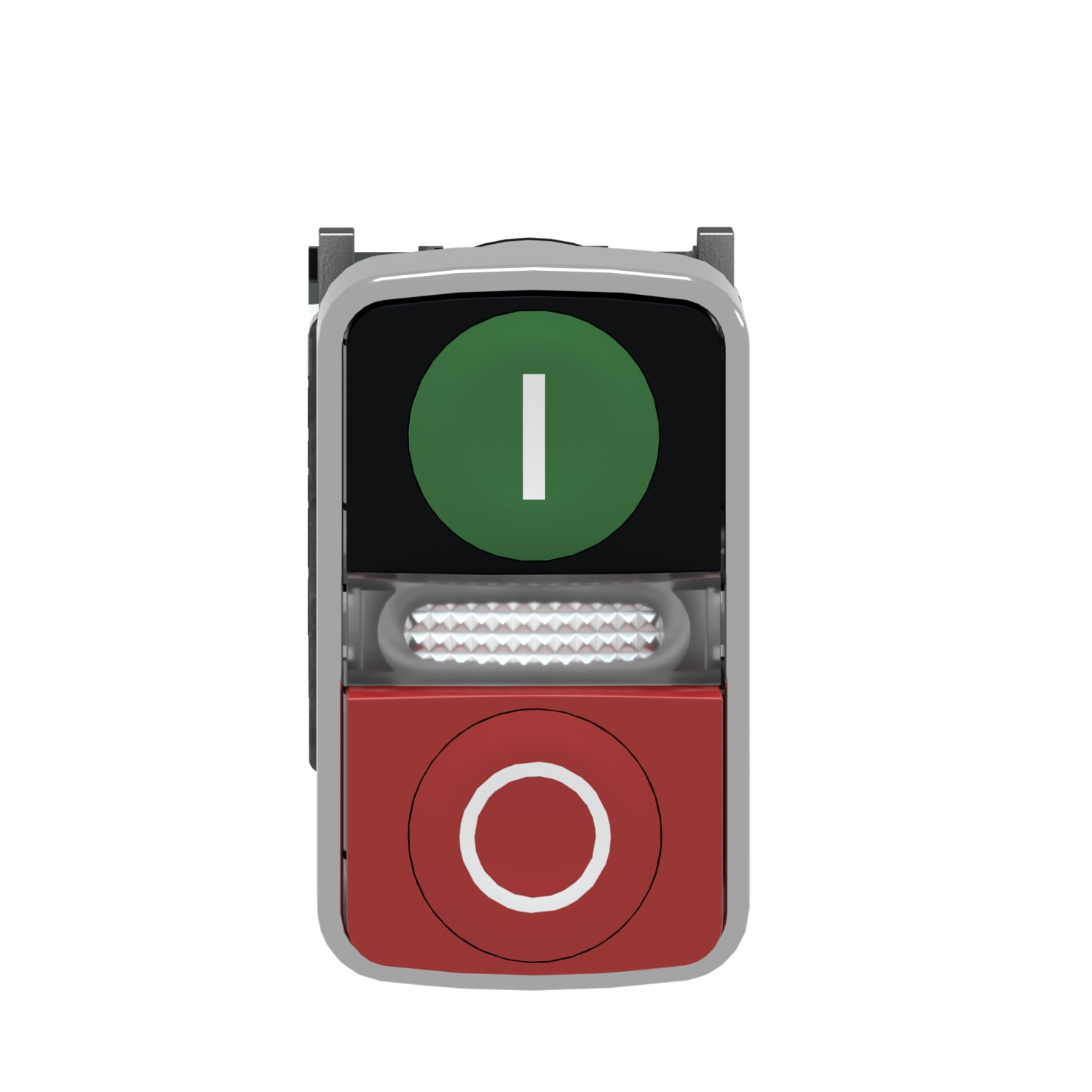

The Schneider XB4BW73731M5 Harmony is a high-quality illuminated double-headed push button designed for industrial control and automation applications. This device features a metal construction for durability and includes:
- One green flush push button (“I”)
- One red projecting push button (“O”)
- An integrated pilot light
It operates at 240V AC and includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, making it ideal for start/stop control circuits in machinery and industrial systems.
2. Key Features
- Dual Push Button Design: Green flush button (“I”) for start, red projecting button (“O”) for stop.
- Integrated Pilot Light: Provides clear status indication.
- Robust Metal Housing: Ensures durability in demanding industrial environments.
- Spring Return Mechanism: Ensures momentary operation for safe and reliable control.
- Standard Ø22mm Mounting: Easily integrates into standard control panels.
- 1 NO + 1 NC Contact Configuration: Supports flexible electrical connections.
- Voltage Rating: 240V AC operation.
3. Technical Specifications
- Product Series: Harmony XB4
- Material: Metal
- Mounting Diameter: Ø22mm
- Button Configuration:
- Green Flush “I” Button (Start)
- Red Projecting “O” Button (Stop)
- Illumination: Integrated pilot light
- Operating Voltage: 240V AC
- Contact Type: 1 NO + 1 NC
- Compliance: Meets IEC & UL industrial standards
4. Benefits
- Clear Start/Stop Functionality: The dual-button layout improves operational efficiency.
- Enhanced Safety and Visibility: The built-in pilot light provides real-time status indication.
- Reliable and Secure Control: Spring return ensures precise operation.
- Industrial-Grade Durability: Metal construction withstands harsh environments.
- Easy Installation: Standard 22mm mounting size allows quick panel integration.
5. Applications
- Industrial control panels
- Machinery start/stop operations
- Electrical switching and signaling
- Automation systems
6. Conclusion
The Schneider XB4BW73731M5 Harmony Illuminated Double-Headed Push Button is an efficient and durable control solution for industrial automation and control systems. Its dual-button design, integrated pilot light, and rugged metal construction ensure safe, clear, and reliable operation in control panels, machinery, and electrical switching applications.
