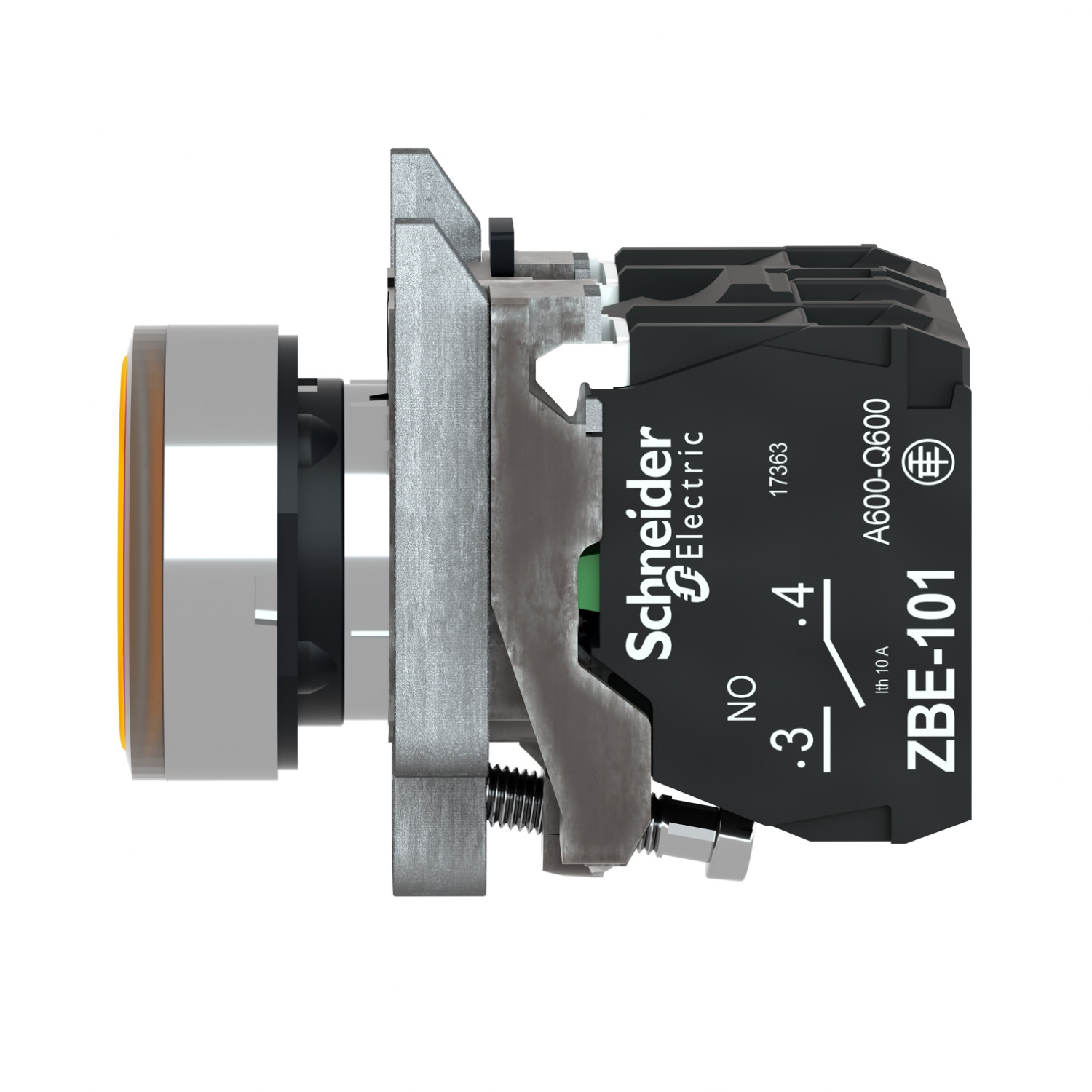

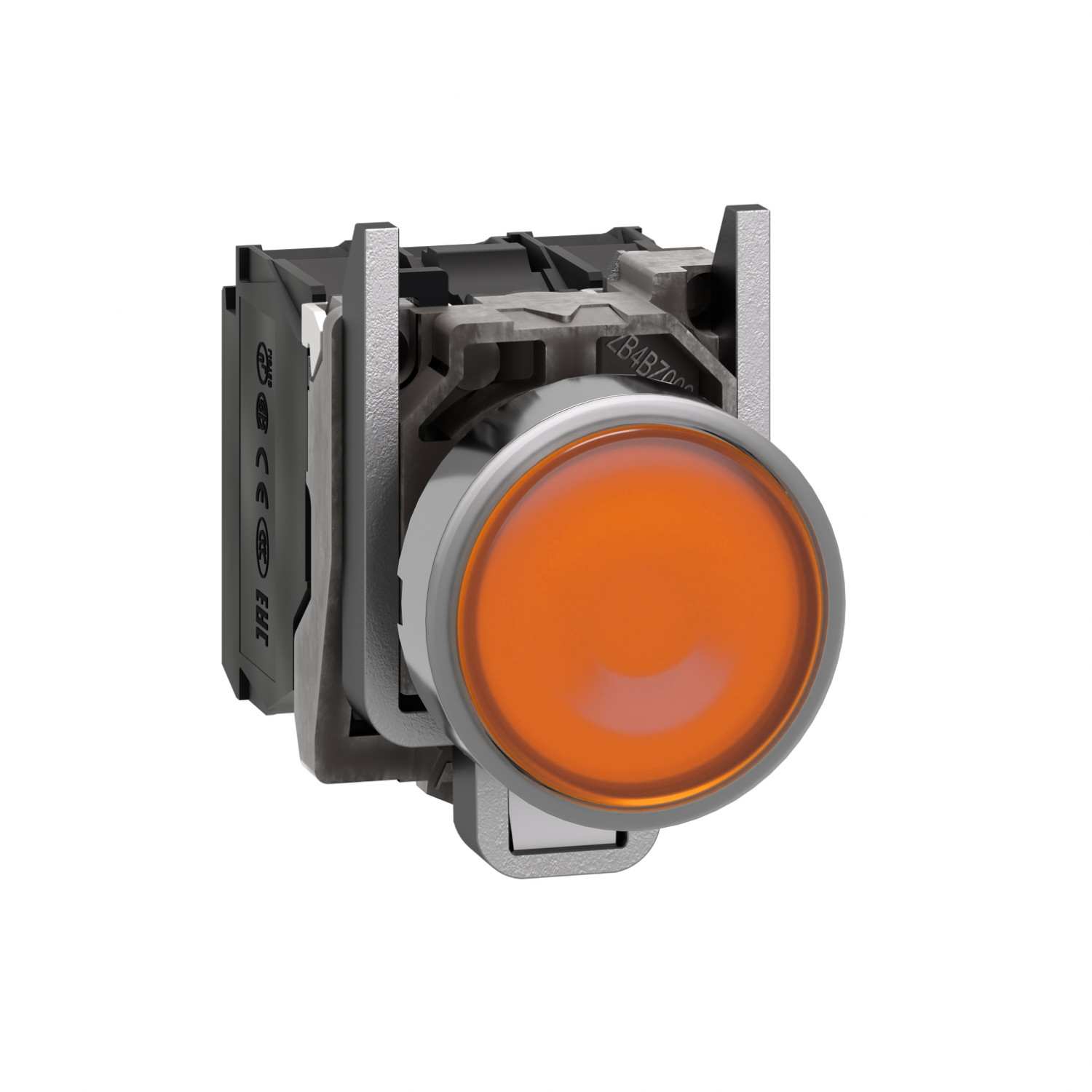

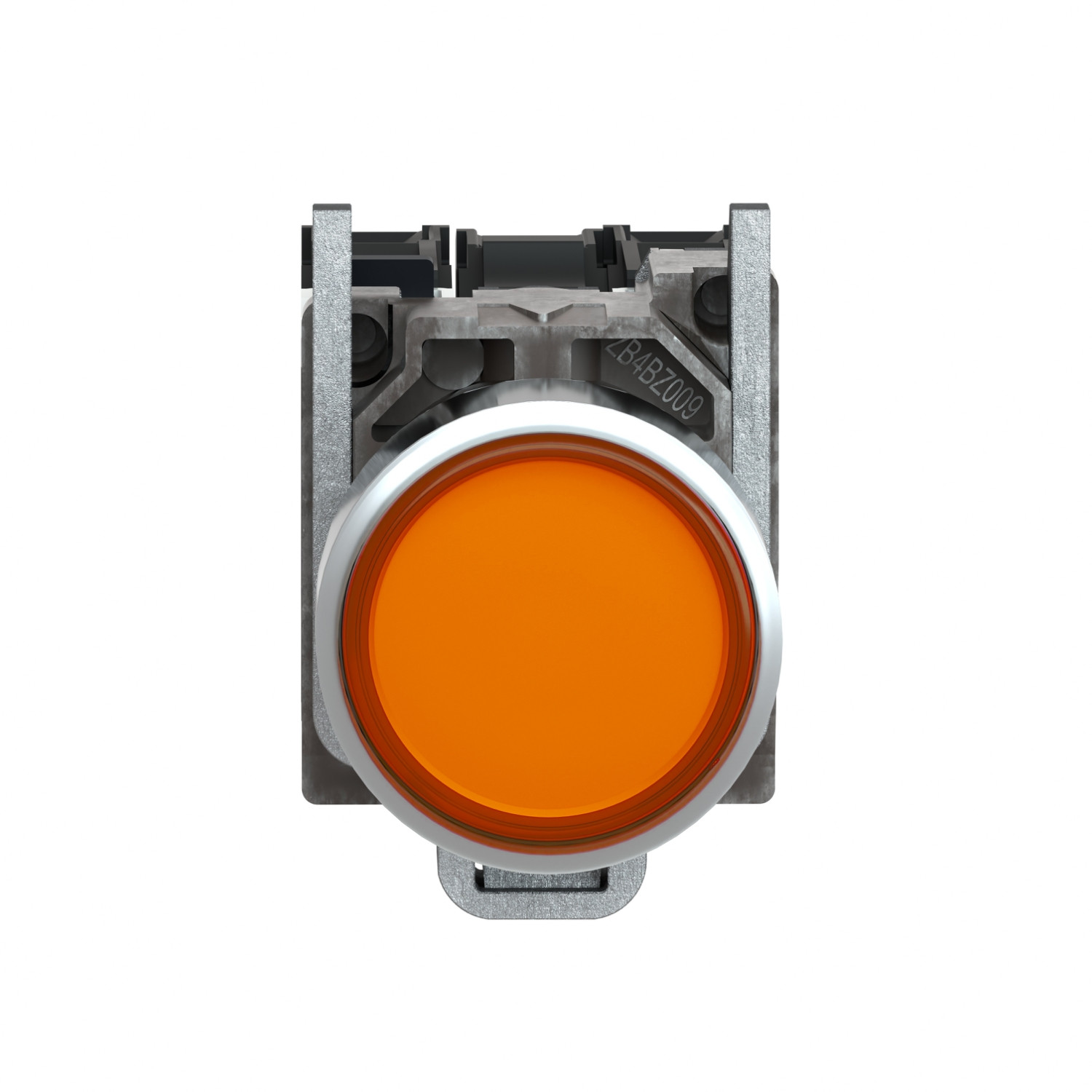

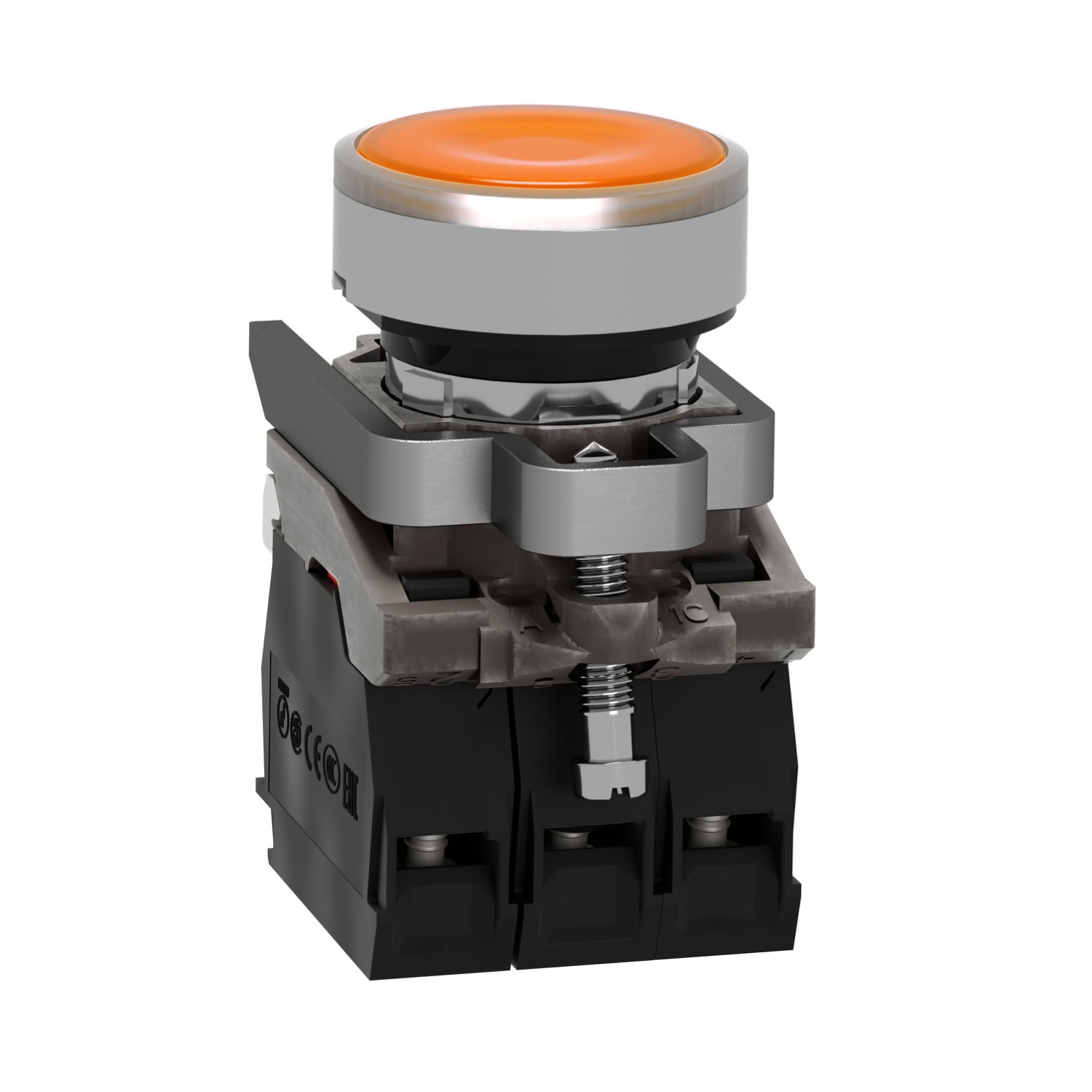

Schneider XB4BW35M5 | Harmony Illuminated Push Button
1. Overview
The Schneider XB4BW35M5 Harmony is a high-quality illuminated push button designed for industrial automation and control applications. It features a durable metal construction, a flush orange actuator, and a spring return mechanism for momentary operation. With 1 Normally Open (NO) and 1 Normally Closed (NC) contact, it provides flexible circuit control. The button operates at 230-240V AC, making it suitable for a variety of electrical control systems.
2. Key Features
- Robust Metal Build: Ensures durability and resistance to industrial conditions.
- Illuminated Orange Actuator: Provides clear visibility and operational feedback.
- Flush Design: Offers a sleek and professional appearance.
- Spring Return Mechanism: Automatically resets after release for momentary operation.
- Standard Ø22mm Mounting: Easily fits into standard control panels.

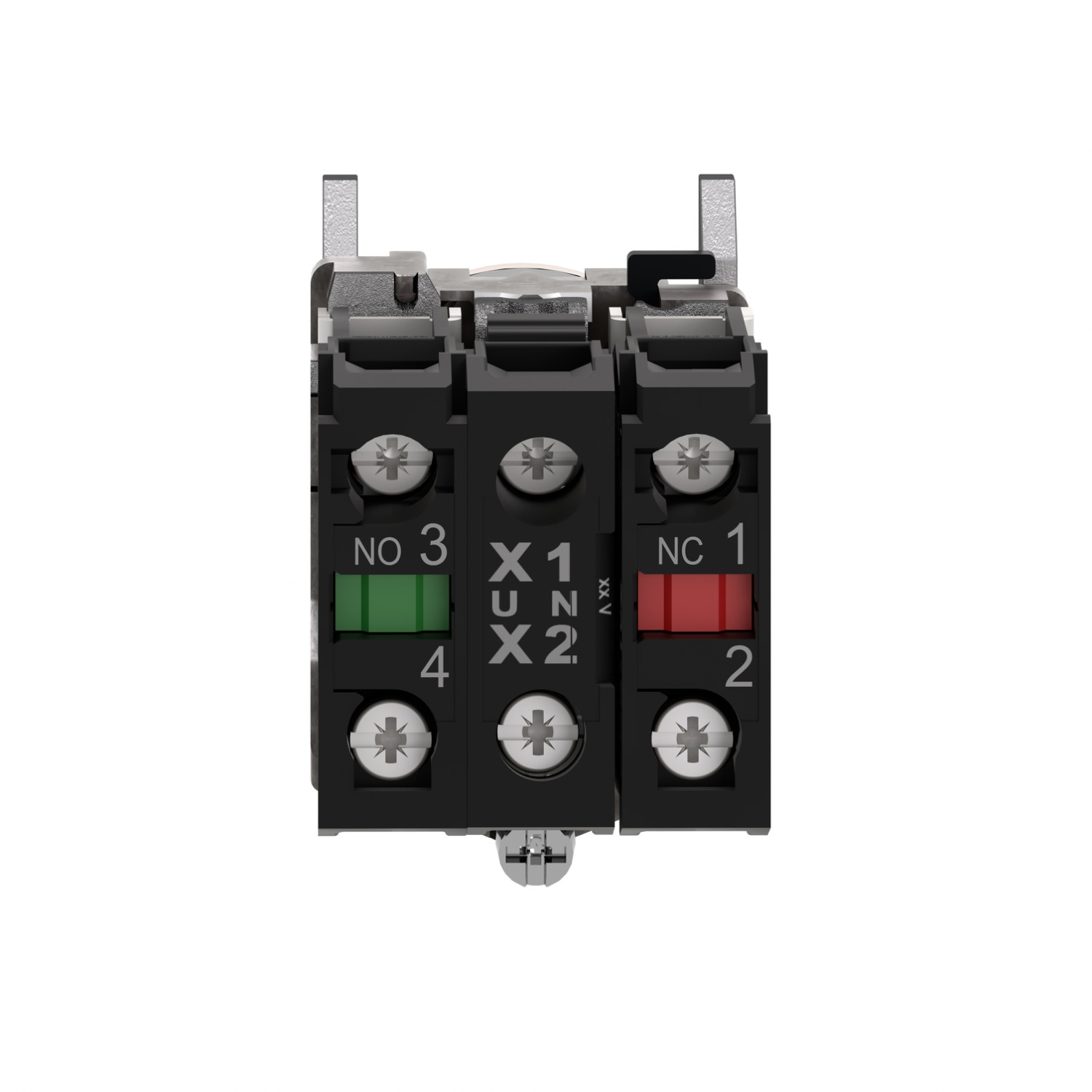

- 1 NO + 1 NC Contact Configuration: Enables versatile switching options.
- Voltage Rating: 230-240V AC operation.
3. Technical Specifications
- Product Series: Harmony XB4
- Material: Metal
- Mounting Diameter: Ø22mm
- Actuation Type: Flush push button
- Operation Type: Spring return (momentary)
- Illumination: Orange LED (integrated)
- Operating Voltage: 230-240V AC
- Contact Type: 1 NO + 1 NC
- Compliance: Meets IEC & UL industrial standards
4. Benefits
- Enhanced Safety and Visibility: Bright orange LED provides clear indication.
- Reliable and Secure Control: Spring return ensures safe and consistent operation.
- Industrial-Grade Durability: Metal construction withstands harsh environments.
- Versatile Applications: Ideal for automation, machine control, and electrical circuits.
- Easy Installation: Standard 22mm mounting size for quick panel integration.
5. Applications
- Industrial control panels
- Machinery operation and automation
- Electrical switching and signaling
- Emergency stop and safety controls
6. Conclusion
The Schneider XB4BW35M5 Harmony Illuminated Push Button is a reliable and efficient solution for industrial automation and control systems. With its sturdy metal construction, bright orange LED illumination, and versatile contact configuration, it ensures safe, durable, and effective operation in various control panel and machinery applications.
