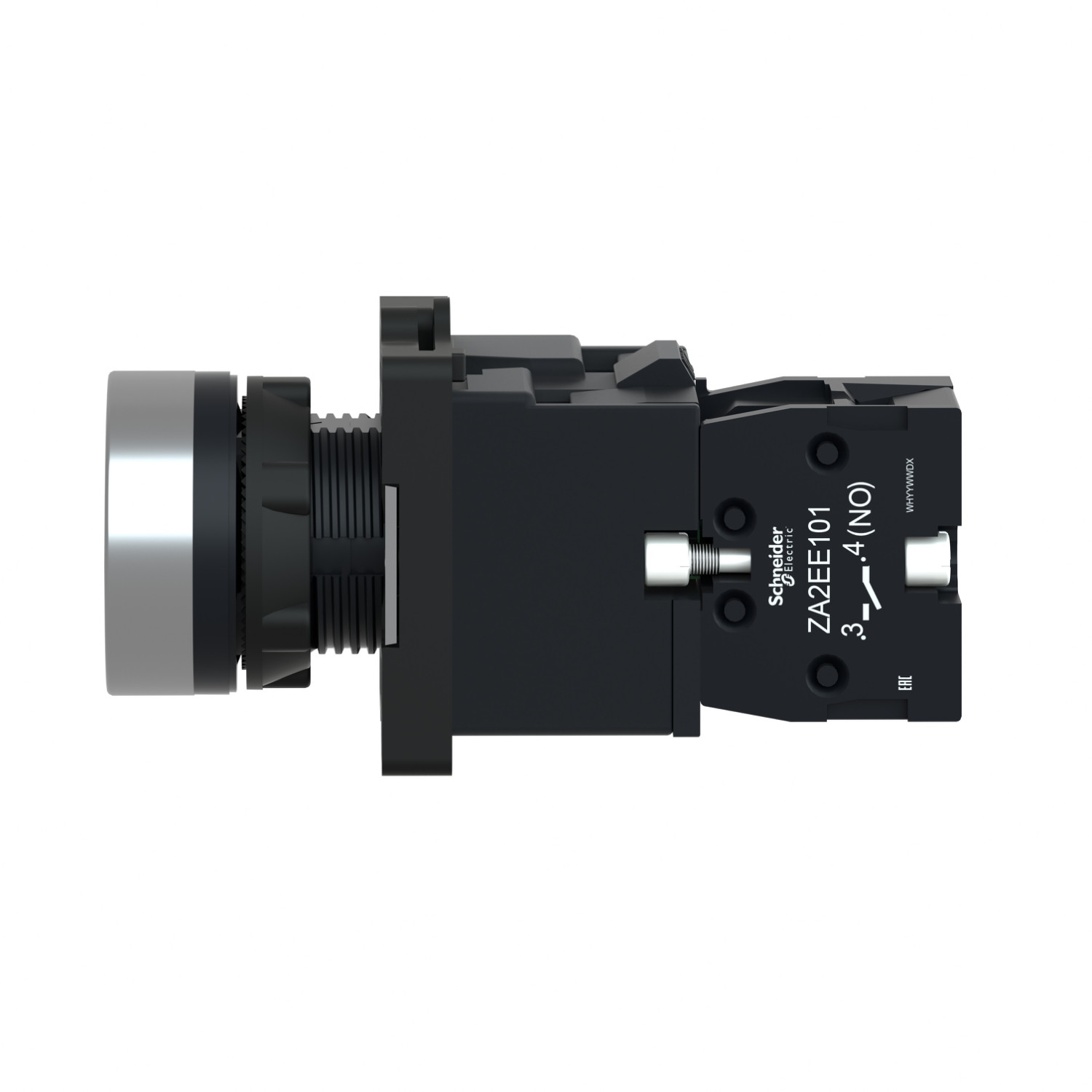

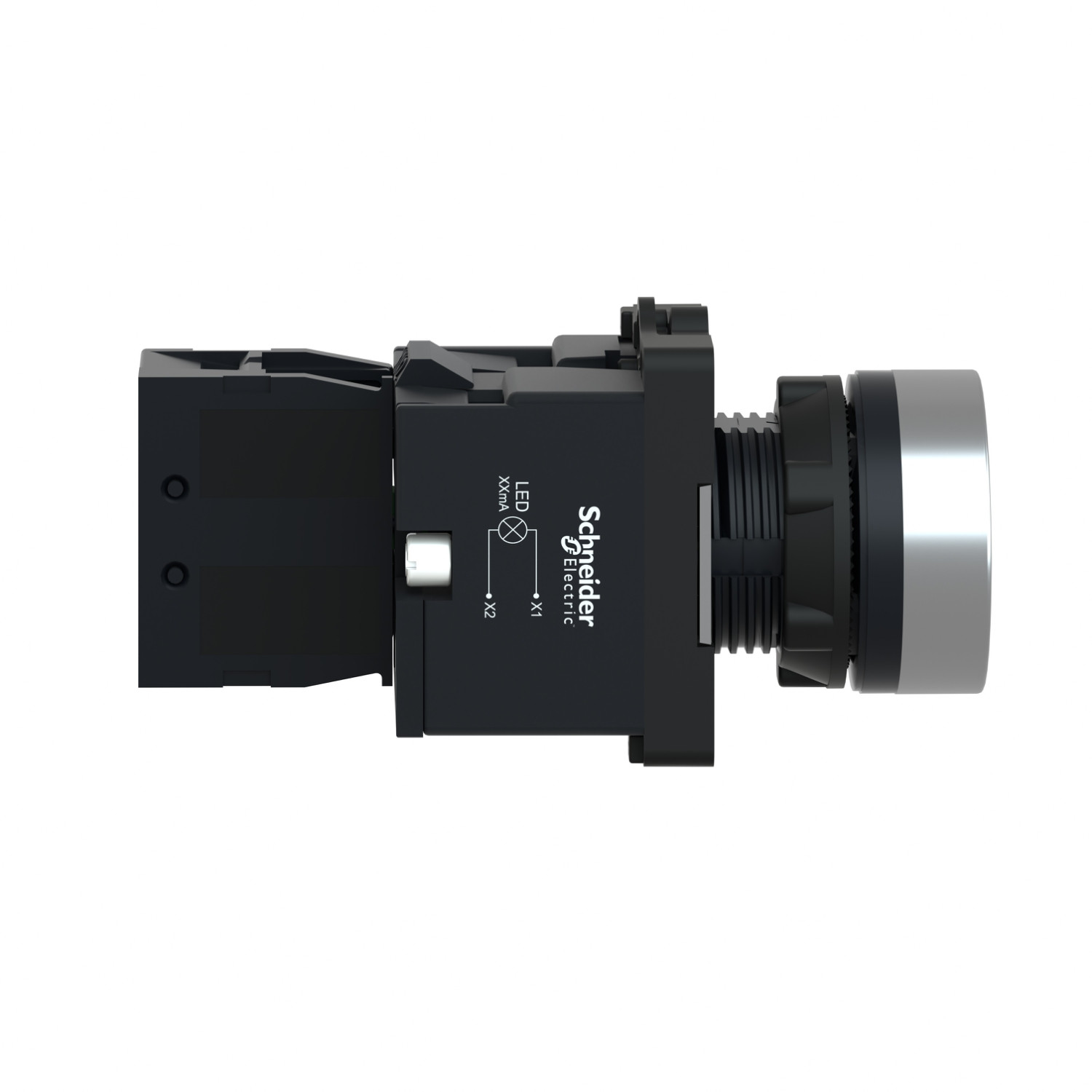

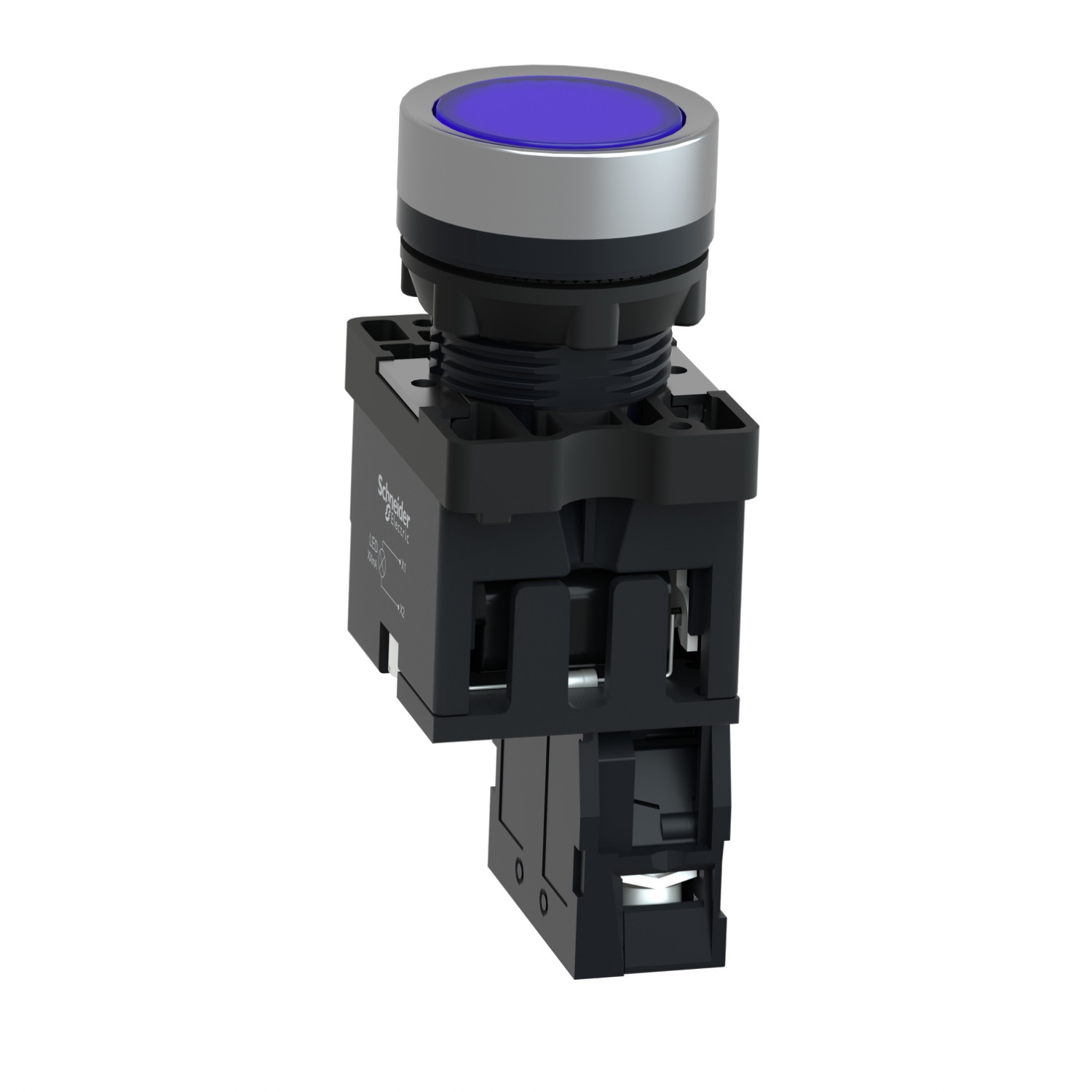

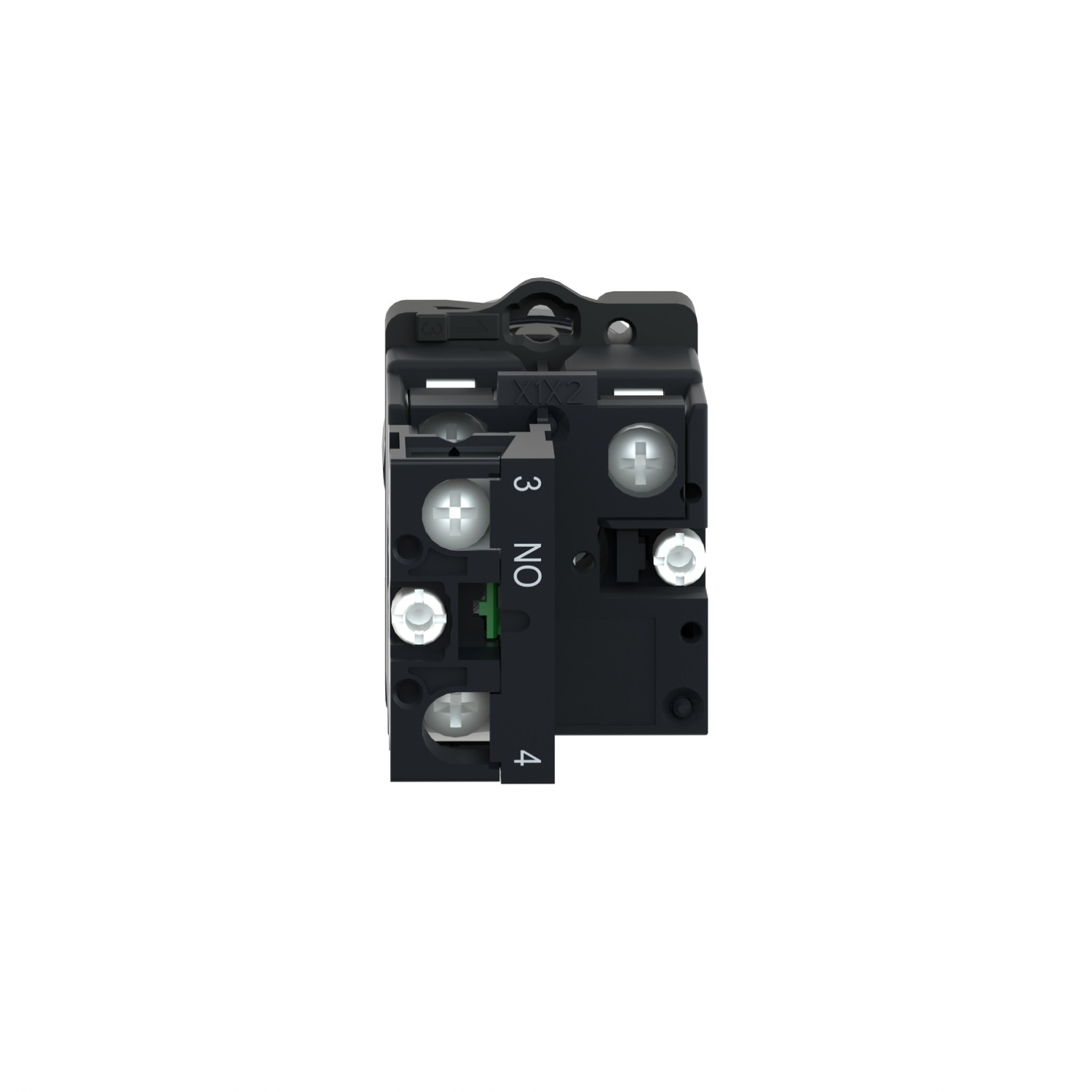

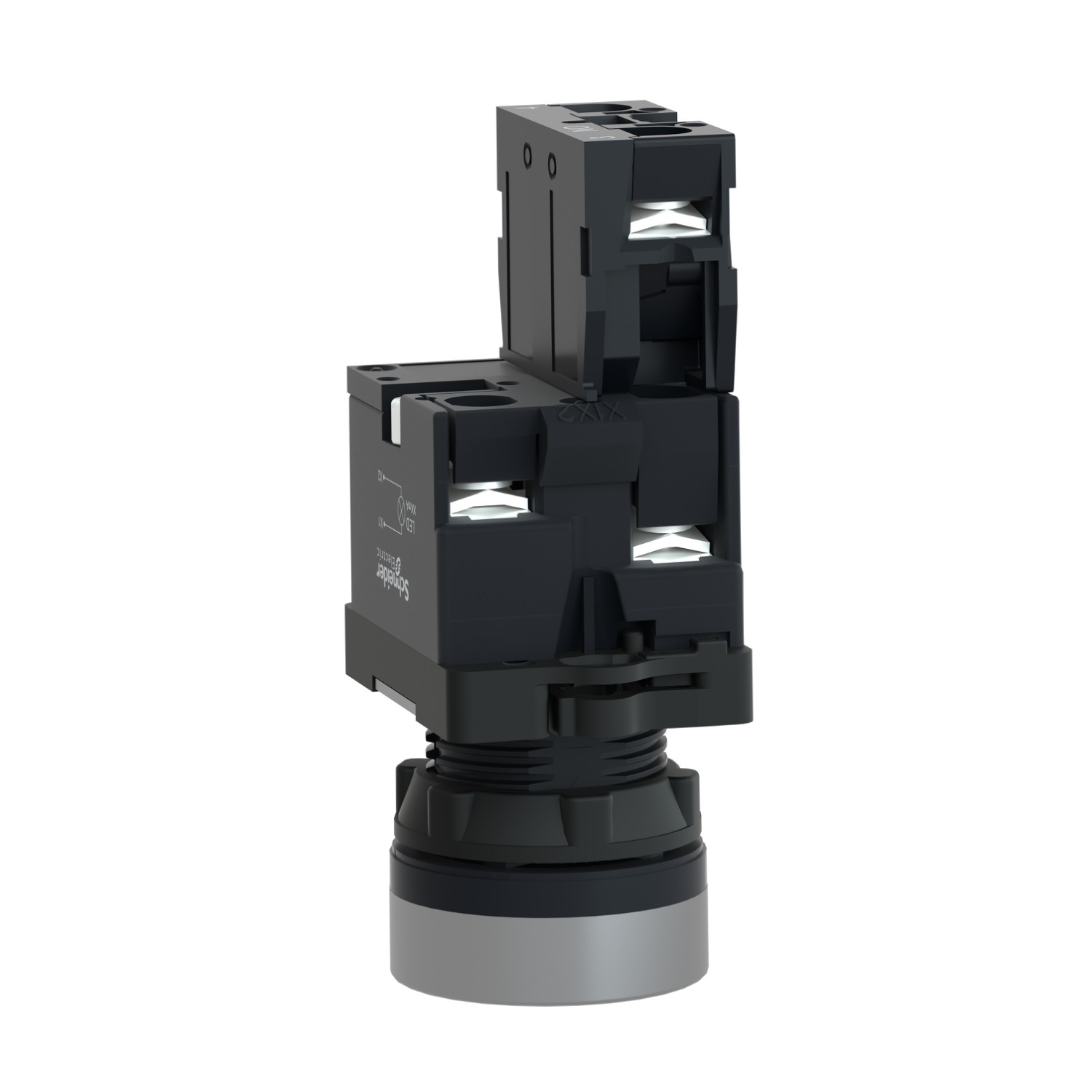

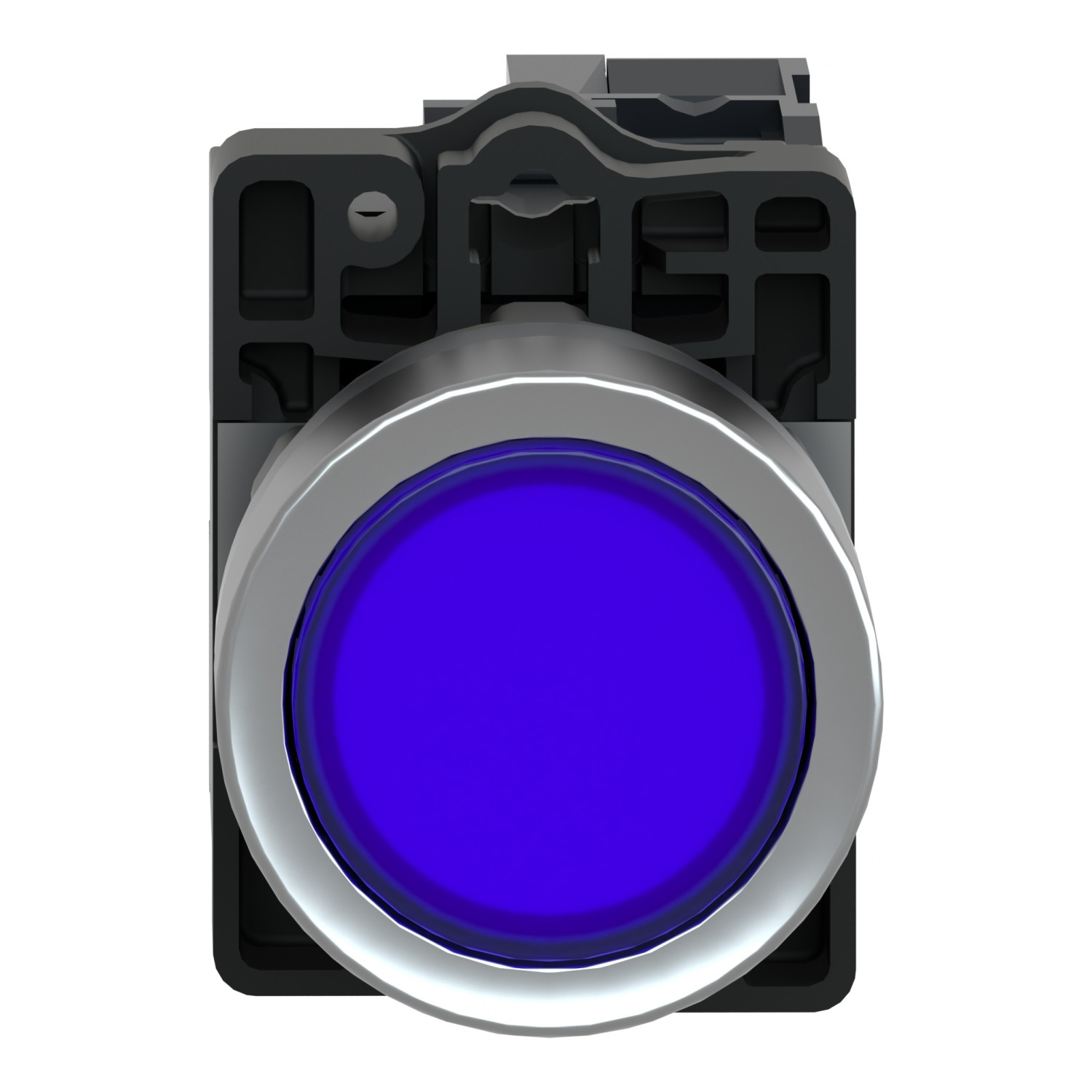

Schneider XA2EW36M1 Harmony | Complete Illuminated Push Button Ø22mm
1. Overview
The Schneider XA2EW36M1 Harmony is a complete illuminated push button from the Easy Harmony XA2 series, designed for industrial control applications. It features a flush blue actuator, an integral LED for illumination, and a spring return mechanism. With a 22mm mounting diameter and 1 Normally Open (1NO) contact, this push button operates at 220V AC, making it a reliable choice for various automation and control systems.
2. Key Features
- Flush Blue Actuator: Provides a sleek design with high visibility.
- Illuminated Design: Integrated LED for enhanced visibility in low-light conditions.
- Spring Return Mechanism: Automatically returns to its original position after activation.
- Standard Ø22mm Mounting: Compatible with most industrial control panels.
- Durable Plastic Construction: Lightweight yet strong for industrial use.
- Reliable Contact Configuration: 1 Normally Open (1NO) contact for efficient control.
- Voltage Compatibility: Operates at 220V AC.
3. Technical Specifications
- Series: Easy Harmony XA2
- Type: Complete Illuminated Push Button
- Material: Plastic
- Mounting Diameter: Ø22mm
- Actuator Type: Flush push button
- Color: Blue
- Illumination Type: Integral LED
- Operating Voltage: 220V AC
- Contact Type: 1NO (Normally Open)
- Action Type: Spring return
4. Benefits
- Enhanced Visibility: Built-in LED ensures clear operation status.
- Quick & Easy Installation: Standard size with screw clamp terminals for secure wiring.
- Reliable Performance: Designed for long-lasting industrial use.
- Energy-Efficient: LED technology reduces power consumption.
5. Applications
- Industrial Machinery & Equipment
- Control Panels & Automation Systems
- Electrical Distribution Control
- Operator Interfaces in Manufacturing
6. Conclusion
The Schneider XA2EW36M1 Harmony is a high-quality, illuminated blue push button ideal for industrial control applications. With integrated LED illumination, a spring return function, and reliable contact performance at 220V AC, it offers efficiency, durability, and ease of use in automation and control systems.
