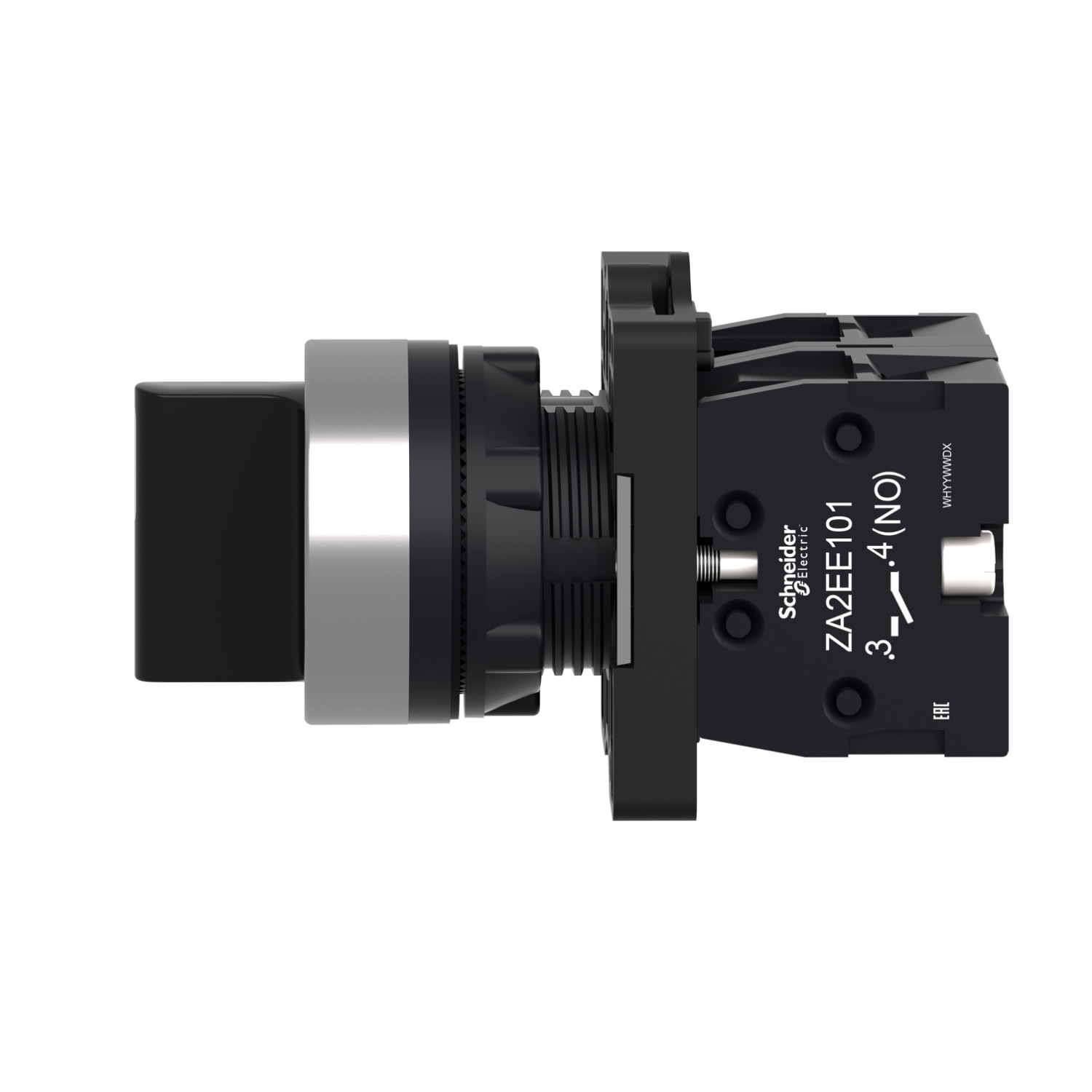

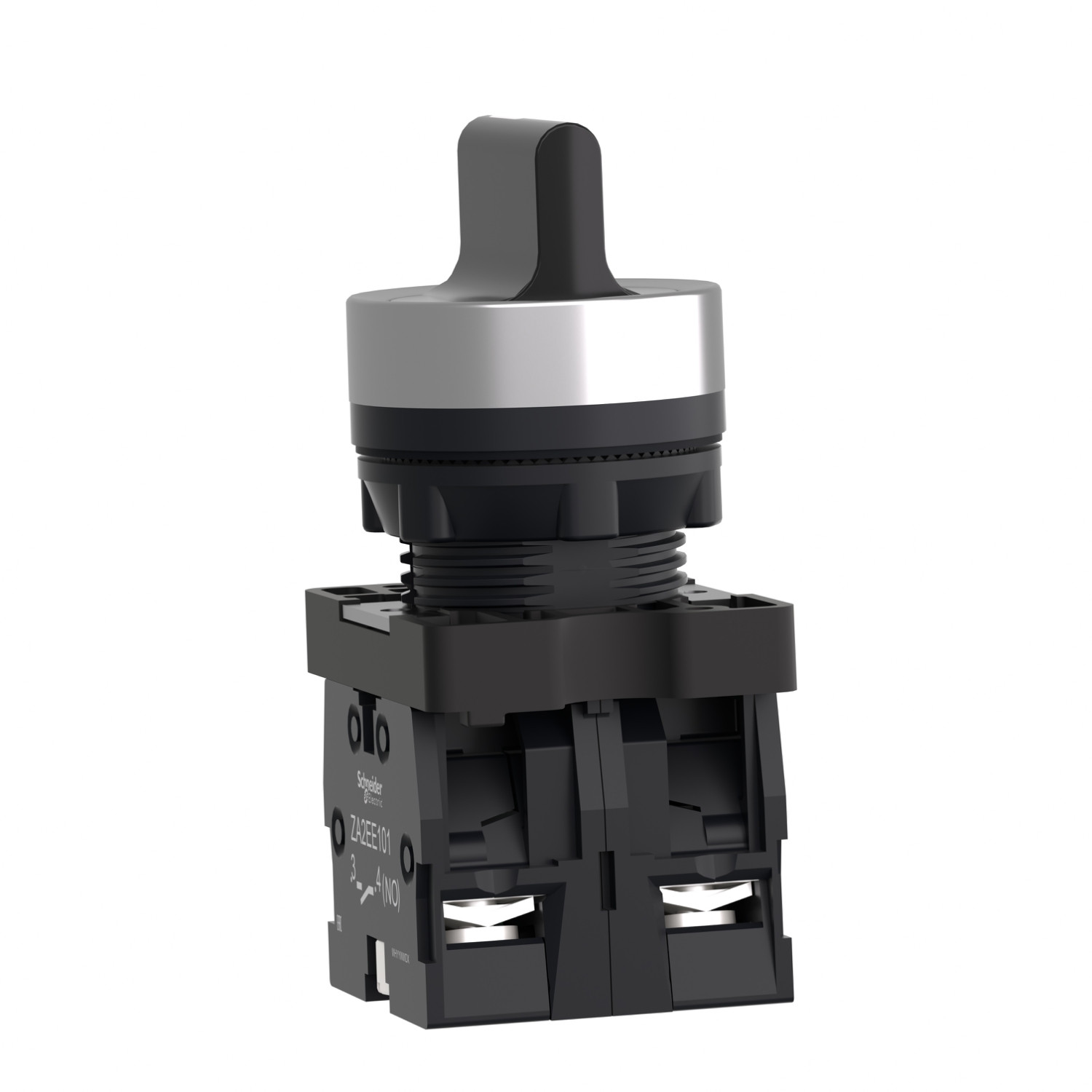

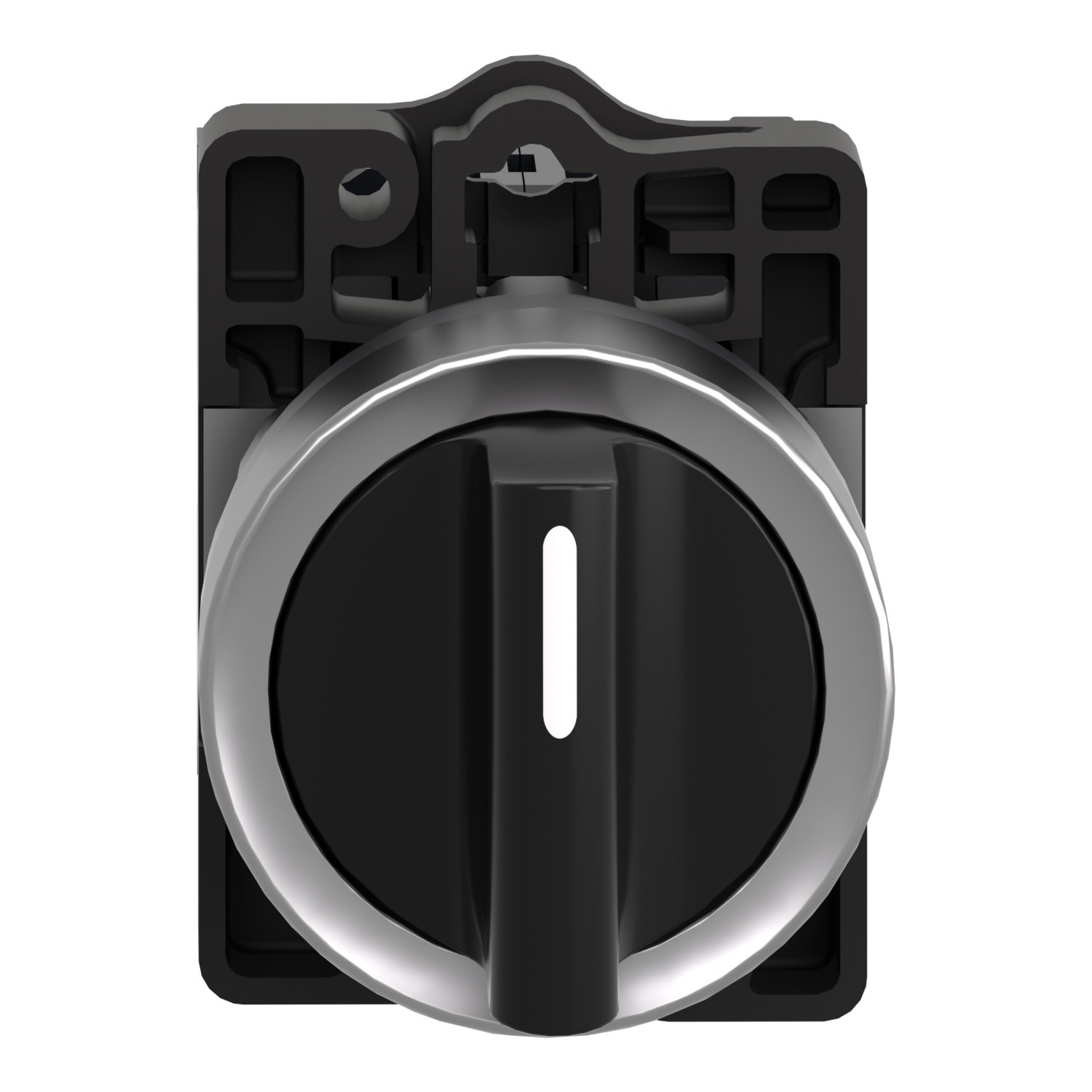

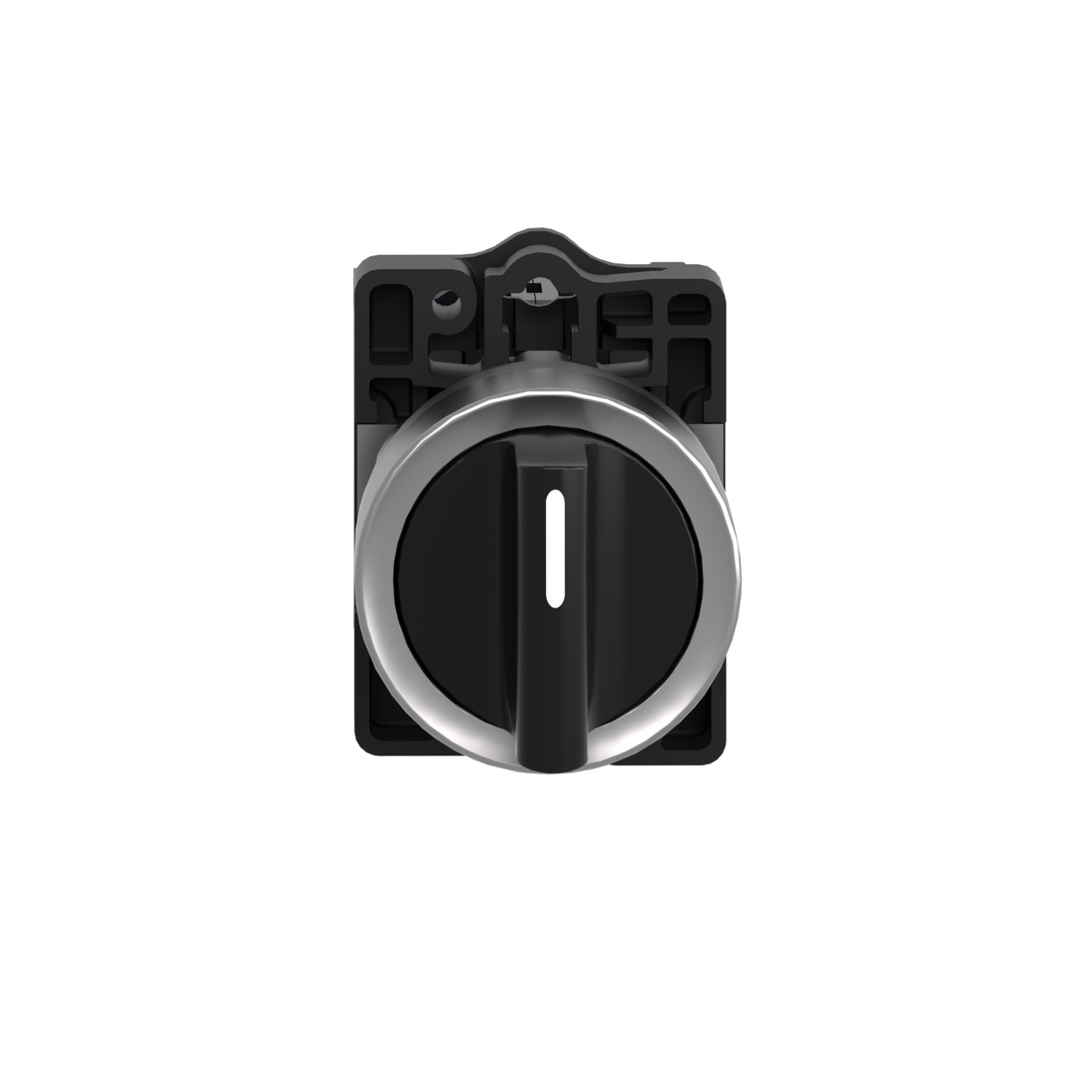

Schneider XA2ED53 Harmony | Selector Switch – Ø22mm – Standard Handle – 3 Positions – 2NO
1. Overview
The Schneider XA2ED53 is a three-position selector switch from the Harmony XA2 series, designed for industrial control and automation applications. It features a standard handle, a 22mm mounting diameter, and a 2NO (Normally Open) contact configuration for reliable switching operations.
2. Key Features
- Model: XA2ED53
- Series: Harmony XA2
- Switch Type: Selector switch
- Positions: 3 (Left – Center – Right)
- Handle Type: Standard handle

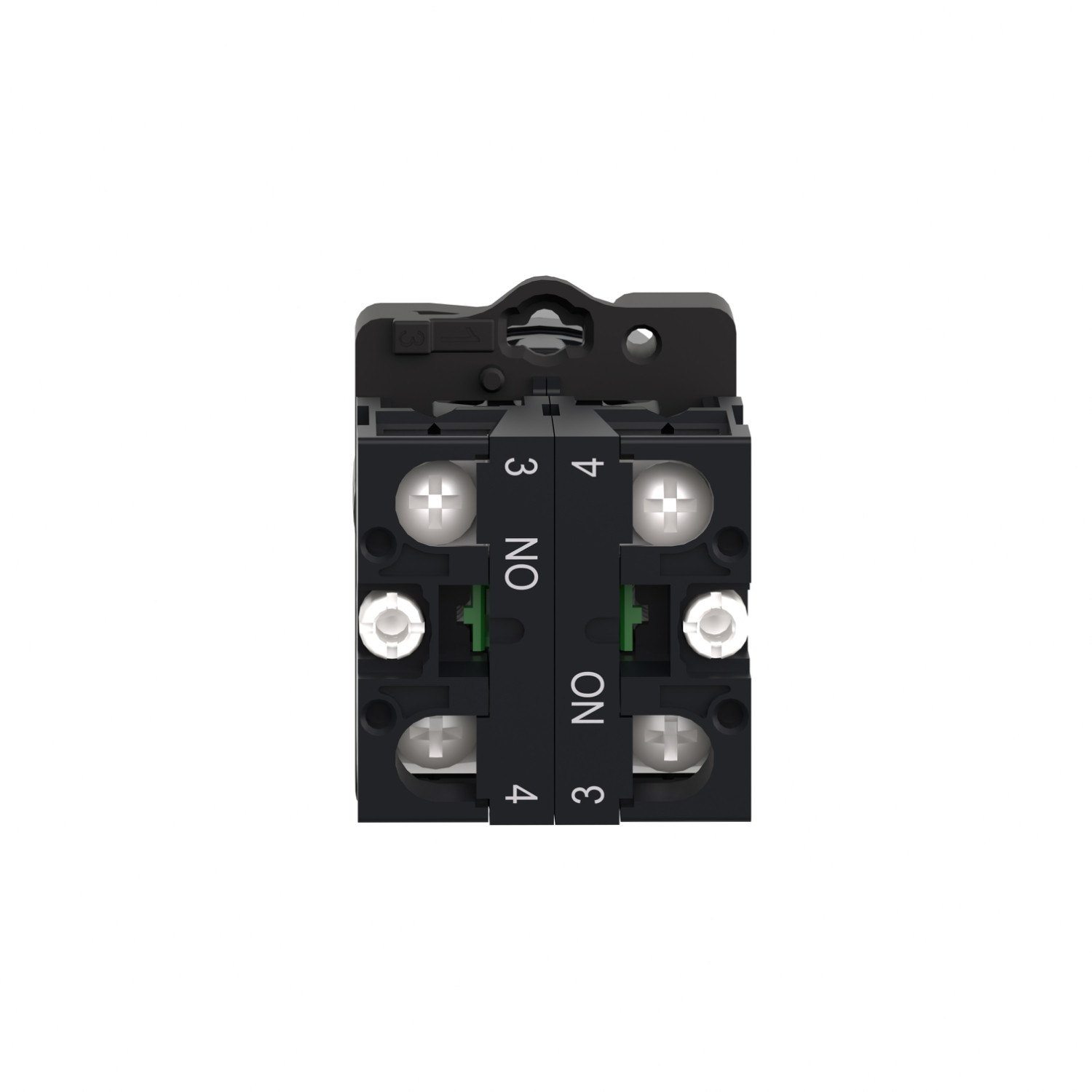

- Contact Configuration: 2NO (2 Normally Open contacts)
- Mounting Diameter: 22mm
- Material: High-durability plastic and metal construction
3. Technical Specifications
- Voltage Rating: Suitable for industrial control circuits
- Electrical Lifespan: Designed for extended operational cycles
- Mechanical Durability: High mechanical endurance for frequent switching
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC safety standards
4. Applications
- Industrial machinery control panels
- Process automation and manufacturing systems
- Mode selection in electrical control stations
- Operator consoles for machine operation control
- Switching between multiple operational states
5. Benefits
- Versatile Control: Three-position design allows flexible machine operation modes
- Reliable Performance: Industrial-grade durability ensures long-term functionality
- User-Friendly Operation: Standard handle provides easy switching between positions
- Easy Installation: Standard 22mm mounting fits most industrial control panels
- High Protection Rating: IP65 ensures resistance to dust and moisture in harsh environments
6. Conclusion
The Schneider XA2ED53 Harmony selector switch is an essential control device for industrial automation, providing a three-position switching mechanism with 2NO contacts. It is ideal for machine control, mode selection, and operator control stations, offering durability, reliability, and ease of use.
