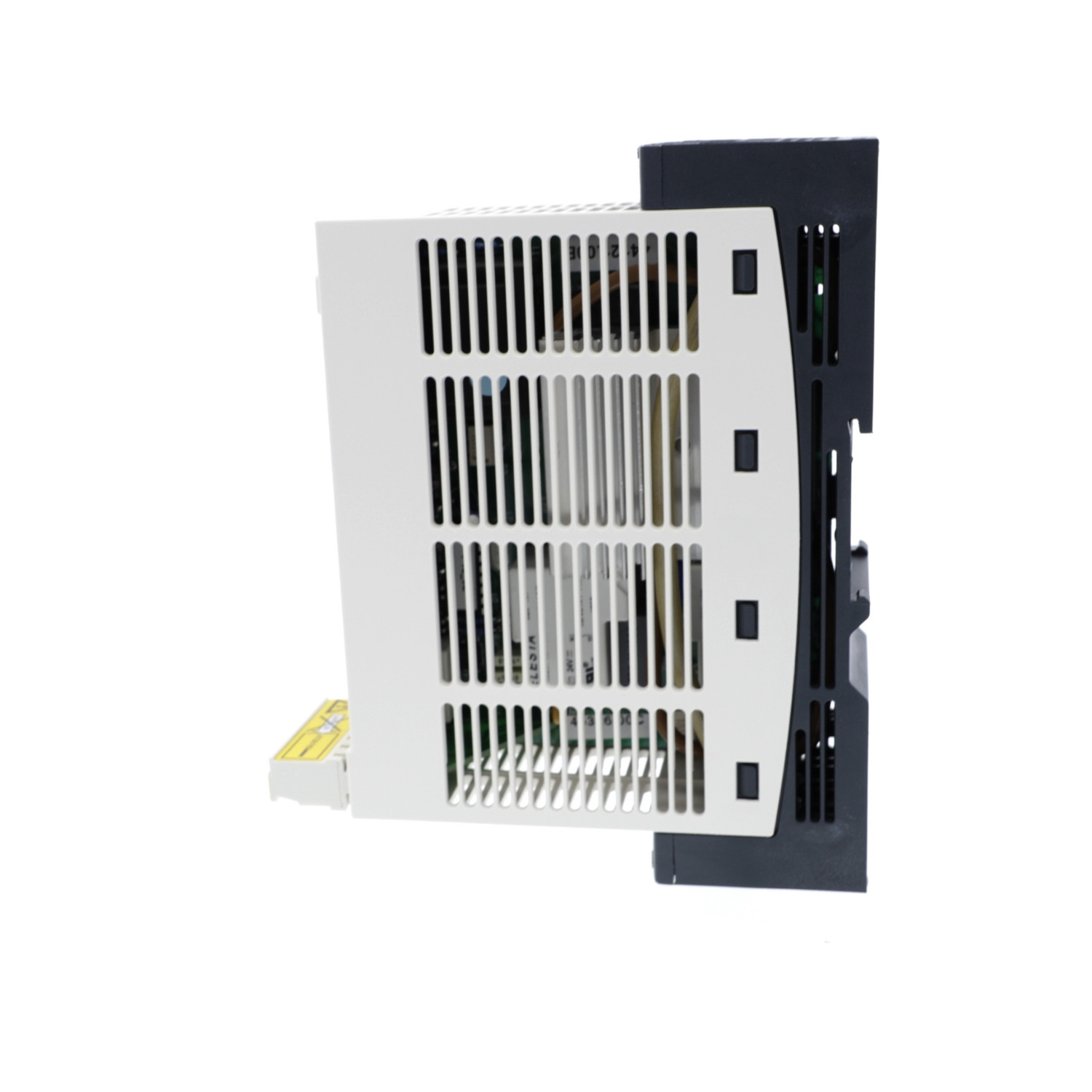

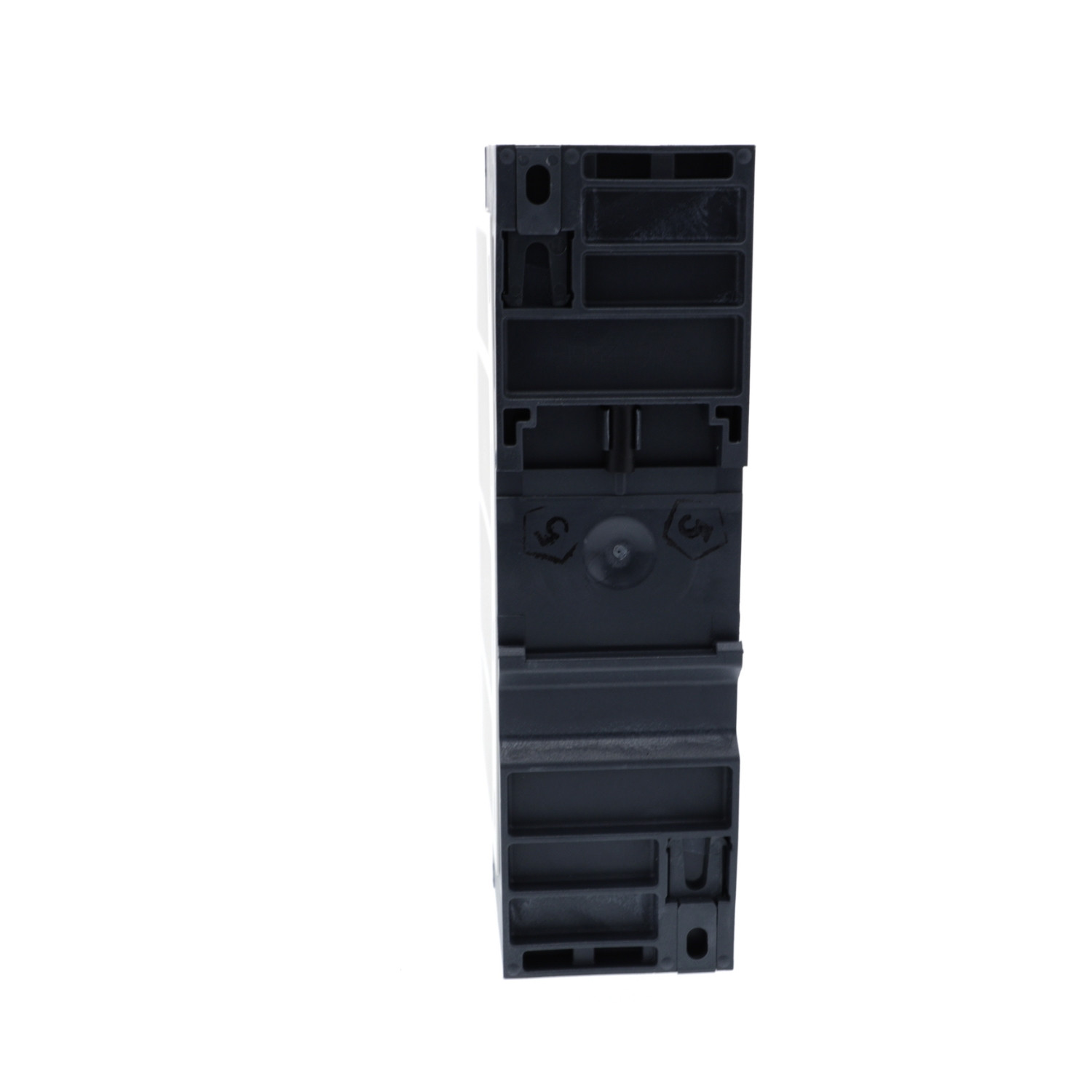

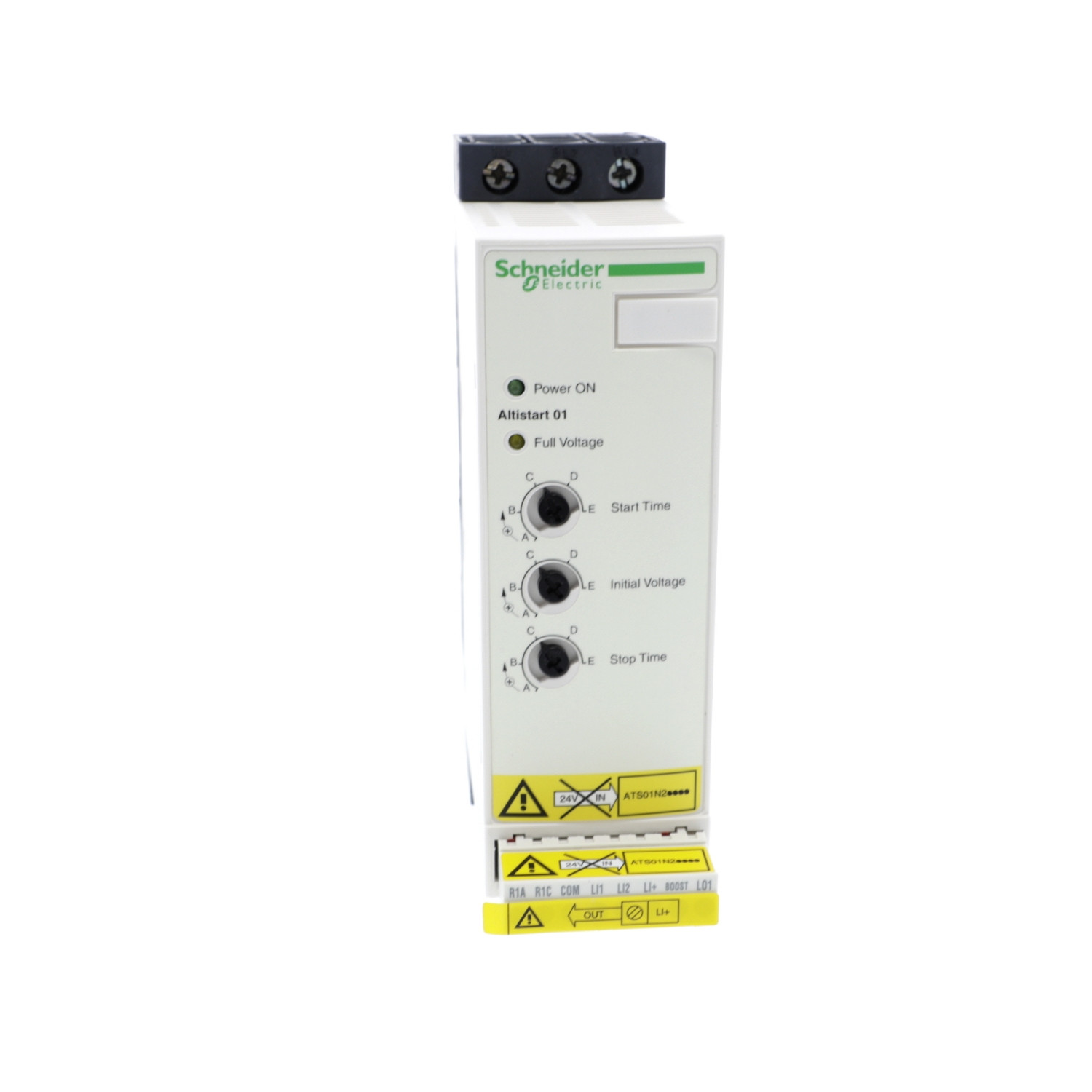

Schneider ATS01N232QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 32A, 380 to 415V, 15kW



Schneider ATS01N232QN | Soft Starter Overview

The Schneider ATS01N232QN is a compact soft starter from the Altistart 01 series, designed for asynchronous motors. It optimizes motor startup by limiting inrush current, reducing mechanical stress, and improving system efficiency.

1. General Specifications

• Product Name: Schneider ATS01N232QN

• Series: Altistart 01 (ATS01)

• Type: Soft Starter for Asynchronous Motors

• Rated Current: 32A

• Power Rating: 15 kW

• Operating Voltage: 380V to 415V AC

• Control Type: Voltage Ramp

• Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

Smooth Motor Start – Reduces mechanical and electrical stress.
Compact & Cost-Effective Design – Ideal for small to medium applications.
Energy Efficiency – Minimizes power spikes and optimizes performance.
Built-in Motor Protection – Prevents overload and overheating.
Easy Installation & Setup – Quick wiring and configuration.

3. Applications

• Pumps & Compressors – Ensures gradual startup to avoid pressure surges.

• Fans & Blowers – Reduces mechanical strain and extends lifespan.

• Conveyor Belts – Provides controlled acceleration for smooth operation.

• Small Industrial Machines – Ideal for general-purpose motor-driven systems.

4. Protection & Safety Features

• Overcurrent & Overtemperature Protection – Prevents motor damage.

• Voltage Ramp Control – Ensures steady acceleration.

• Phase Loss Detection – Enhances system reliability.

• Built-in Diagnostics – Simplifies maintenance and troubleshooting.

5. Installation & Maintenance

• Easy to Mount – DIN rail or panel mounting options.

• Plug & Play Configuration – No advanced programming required.

• Minimal Maintenance Required – Designed for long-term industrial use.
