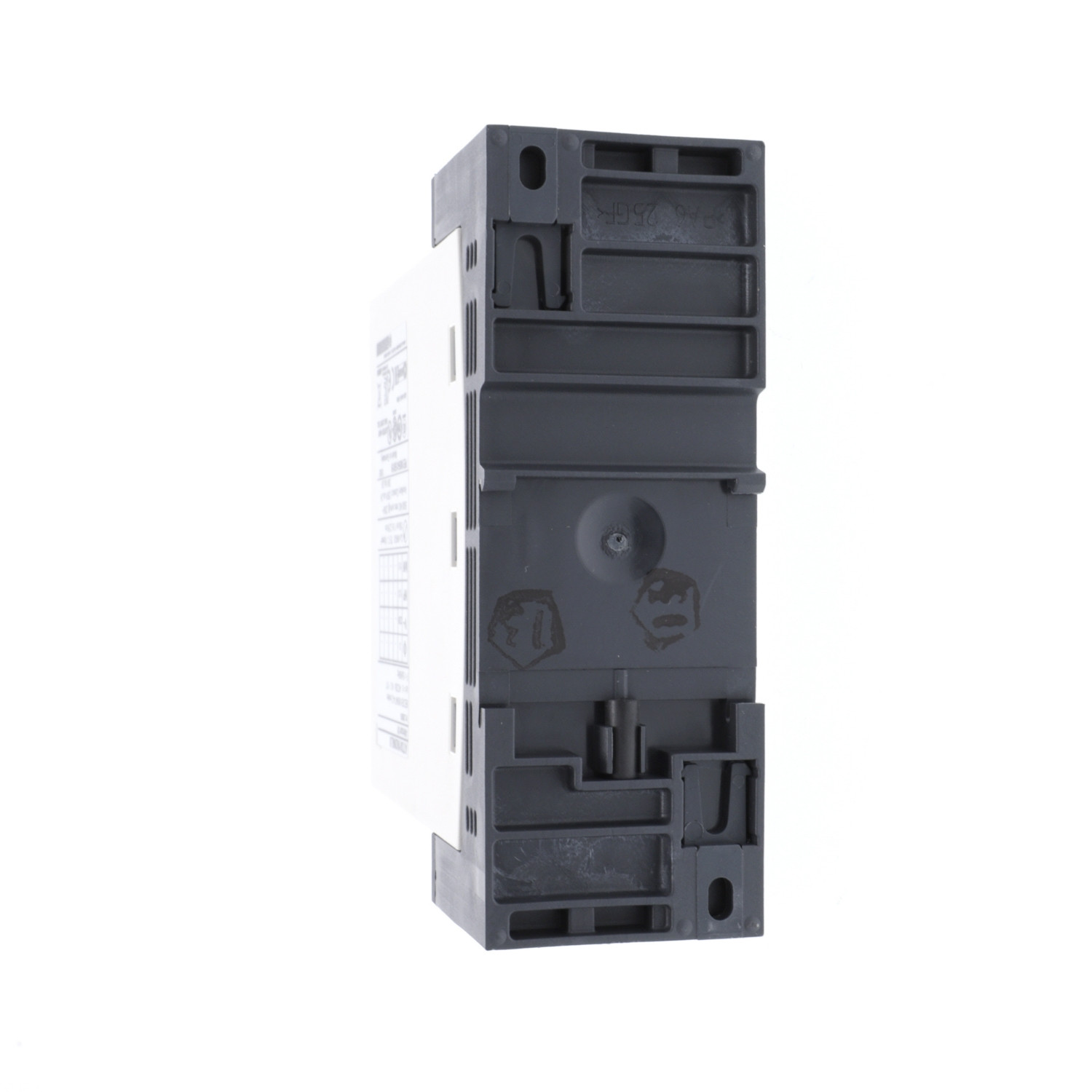

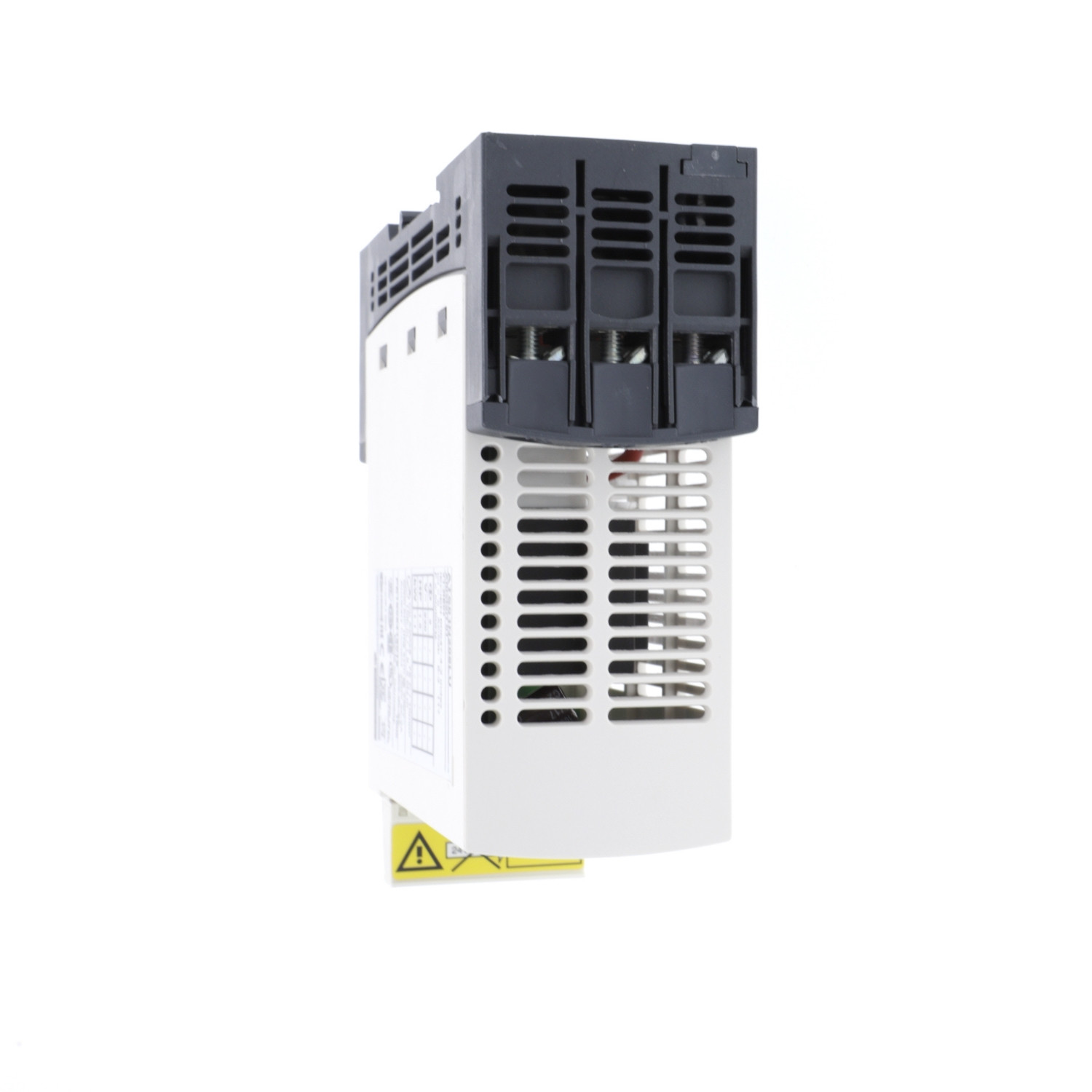

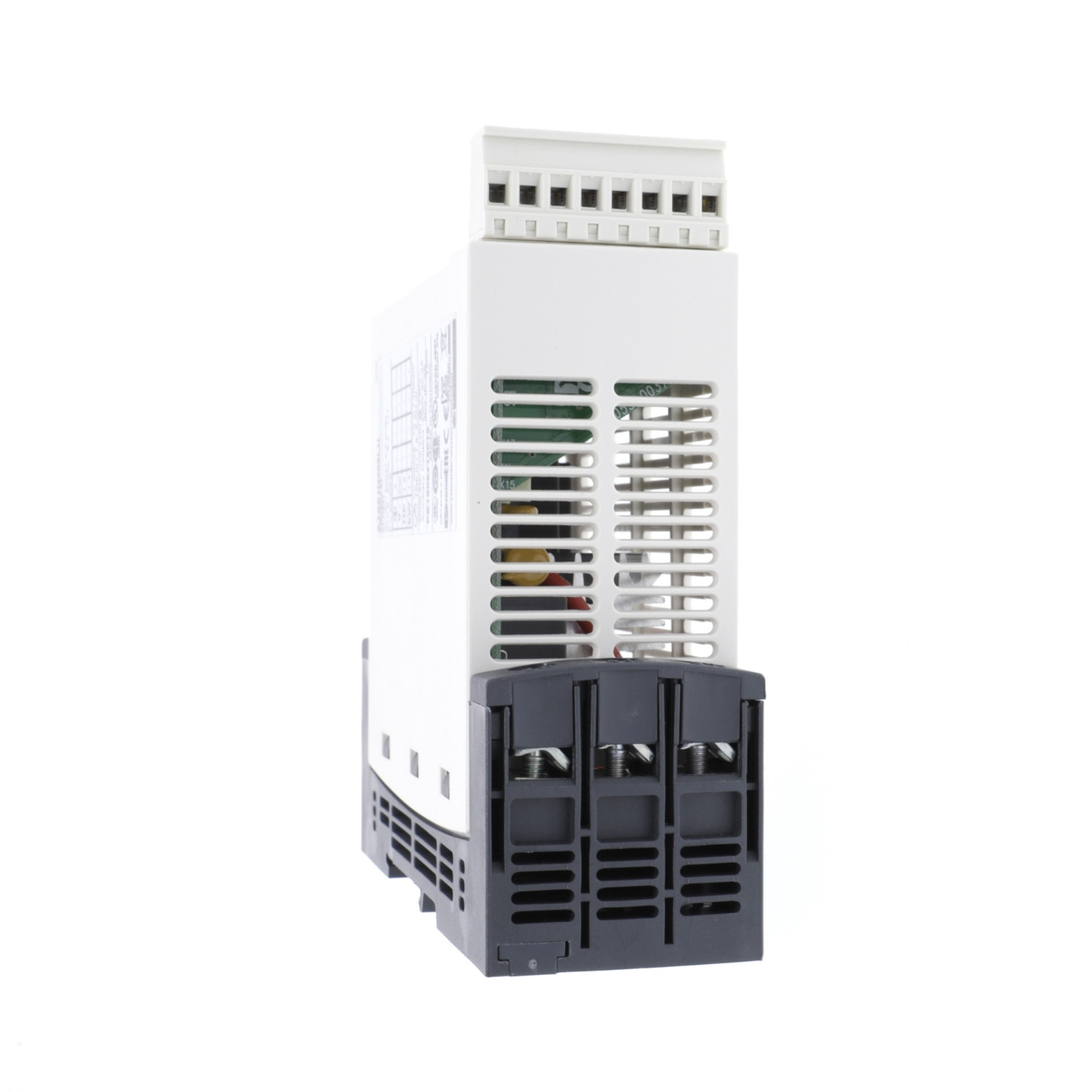

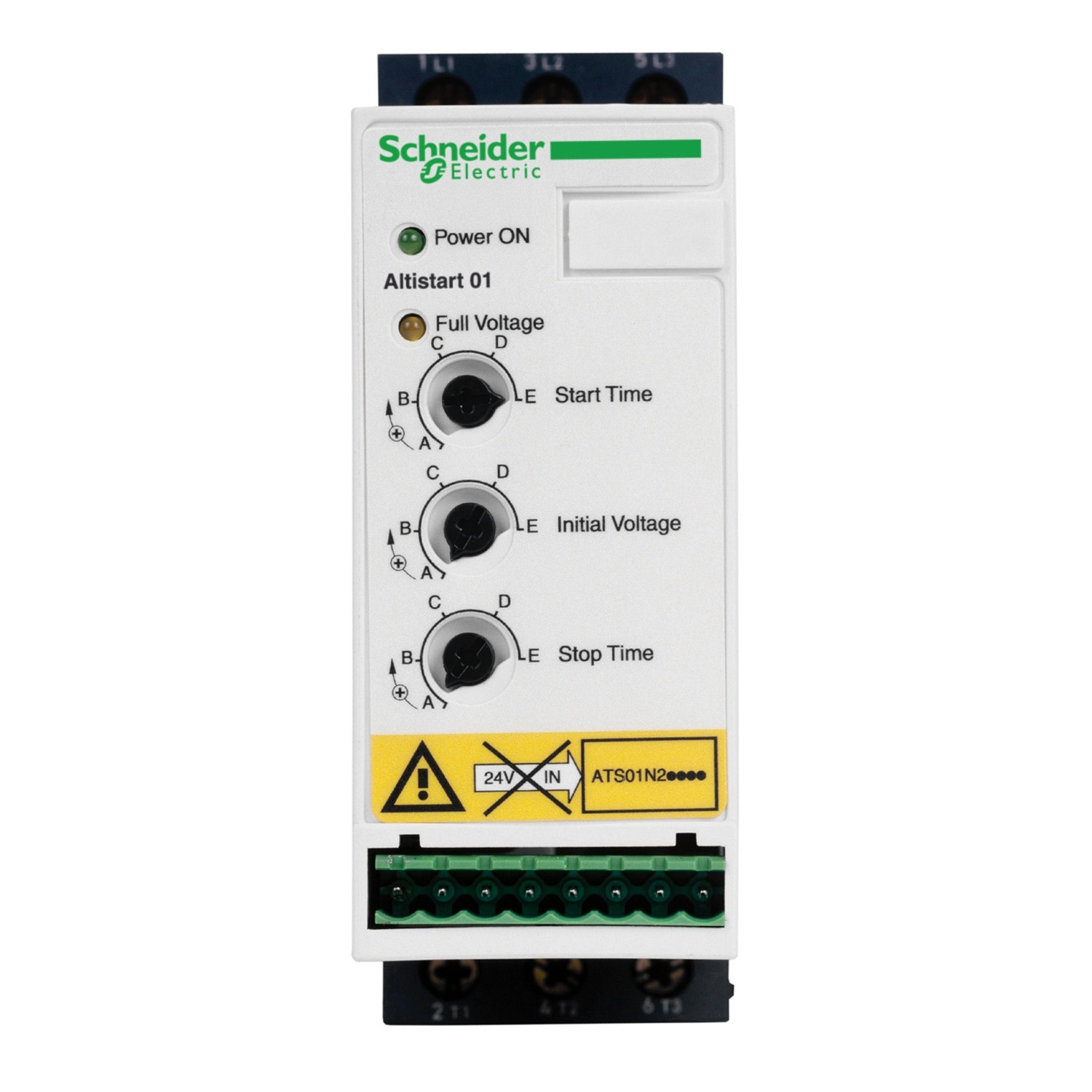

Schneider ATS01N209QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 9A, 380 to 415V, 4kW



Schneider ATS01N209QN | Soft Starter Overview

The Schneider ATS01N209QN is a soft starter from the Altistart 01 series, designed to optimize motor performance by reducing inrush current and mechanical stress. This ensures a smooth and controlled startup, enhancing motor efficiency and longevity while reducing maintenance costs.

1. General Specifications

• Product Name: Schneider ATS01N209QN

• Series: Altistart 01 (ATS01)

• Type: Soft Starter for Asynchronous Motors

• Rated Current: 9A

• Power Rating: 4 kW

• Operating Voltage: 380V to 415V AC

• Control Type: Voltage Ramp Control

• Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

Smooth Motor Start & Stop – Reduces mechanical and electrical stress.
Compact & Space-Saving Design – Ideal for control panels with limited space.
Energy Efficiency – Minimizes power surges and enhances performance.
Built-in Motor Protection – Guards against overload and overheating.
User-Friendly Setup – Quick installation with simple wiring.

3. Applications

🔹 Pumps & Compressors – Reduces water hammer effects and extends equipment life.
🔹 Fans & Blowers – Ensures gradual speed changes for optimal airflow.
🔹 Conveyor Systems – Enables controlled acceleration and deceleration.
🔹 Small Industrial Machines – Perfect for automated equipment requiring smooth motor control.

4. Protection & Safety Features

Overload & Overtemperature Protection – Prevents motor damage.
Voltage Ramp Control – Ensures steady and reliable motor startup.
Phase Loss Detection – Enhances system safety and performance.
Built-in Diagnostics & Alerts – Simplifies maintenance and troubleshooting.

5. Installation & Maintenance

Flexible Mounting Options – Supports DIN rail and panel mounting.
Easy Wiring & Setup – No complex programming required.
Low Maintenance – Reliable and durable for industrial applications.
