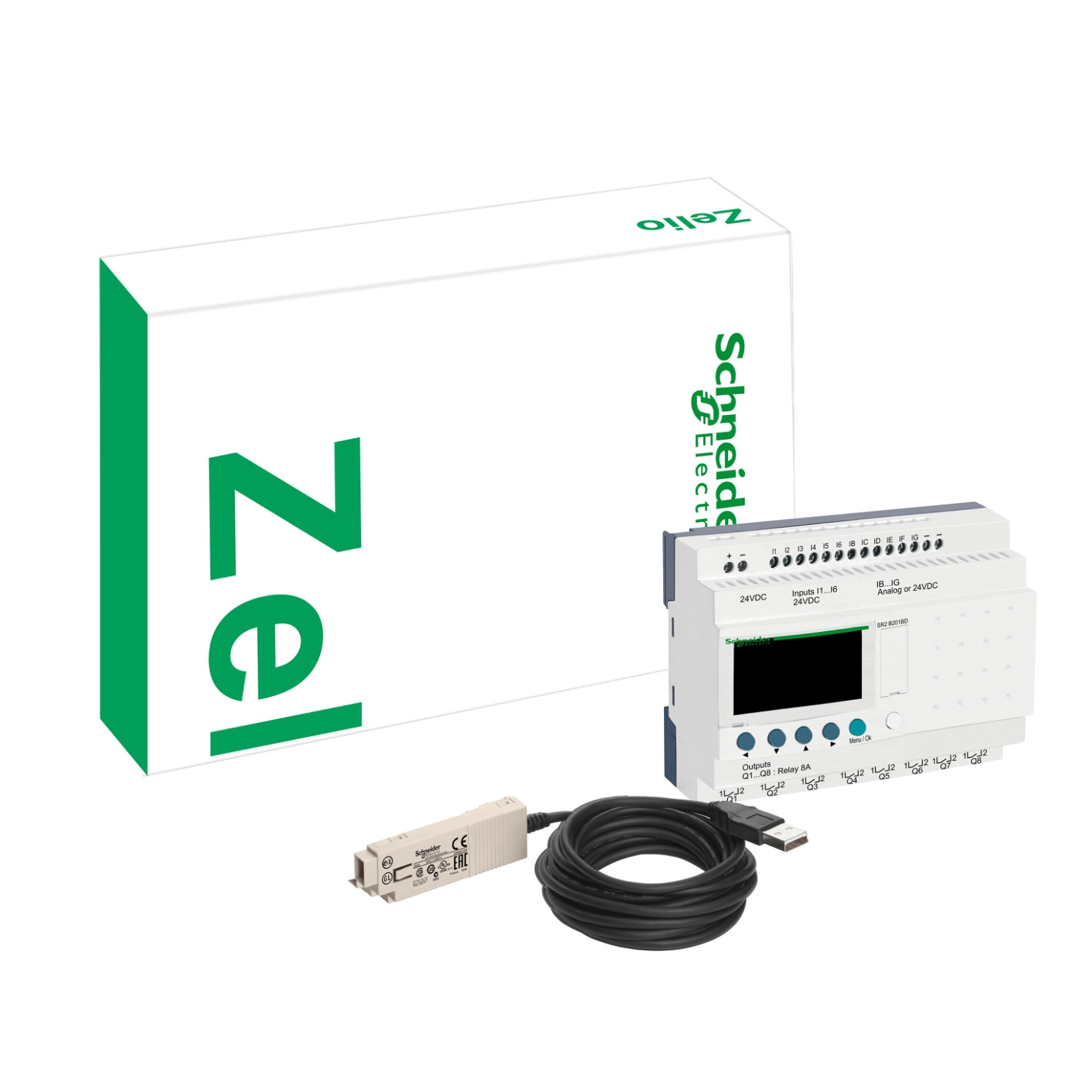

Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC
The Schneider Electric SR3PACKFU is a modular smart relay from the Zelio Logic series, offered as part of the “Discovery” pack. Designed for users who are exploring automation or looking for a compact solution for basic control tasks, this relay provides 10 I/O (inputs/outputs) and operates on 100-240V AC. The pack is ideal for educational purposes, training, or small automation systems.
Key Features
-
Product Type: Modular smart relay
-
Series: Zelio Logic
-
Pack Type: Discovery pack, designed for learning and small-scale applications
-
Number of I/O: 10 I/O (6 digital inputs, 4 digital outputs)
-
Voltage: 100-240V AC
-
Modular Design: Supports expansion with additional modules as the complexity of the task grows
-
User Interface: Easy-to-use interface for programming and monitoring
-
Programming: Programmable using Zelio Soft 2 software
-
Mounting: DIN rail compatible
Electrical Specifications
-
Power Supply: 100-240V AC
-
Digital Inputs: 6 digital inputs, ideal for receiving ON/OFF signals
-
Digital Outputs: 4 digital outputs for controlling devices like relays, motors, or lights
-
Relay Contacts: Normally open (NO) contacts for outputs
-
Output Current: 0.5 A per output channel (maximum)
-
Modular Expansion: Additional I/O modules can be added as needed for more complex tasks
Mechanical & Environmental Specifications
-
Housing: Compact plastic housing for easy integration into control panels
-
Mounting: DIN rail mounting for straightforward installation
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -20°C to +70°C
-
Protection Rating: IP20 (module body)
-
Dimensions: Compact design, saving valuable space
Applications Schneider SR3PACKFU
-
Learning and Training: Ideal for individuals or teams learning about automation systems and relay controls
-
Small Automation Systems: Suitable for controlling small machines, lighting, HVAC systems, or other basic automation tasks
-
Process Control: Can be used for simple process control applications requiring limited I/O
-
Home Automation: Effective for basic home automation systems like controlling lighting, HVAC, and other devices
-
Energy Management: Useful in small-scale energy control applications for monitoring and switching devices based on demand
Advantages Schneider SR3PACKFU
-
Beginner-Friendly: The “Discovery” pack offers an accessible and easy-to-understand solution for users who are new to automation, providing simple programming and a straightforward user interface
-
Modular Design: The modular design allows for easy expansion, making it scalable as the requirements grow
-
Flexible Voltage Range: Operates across a wide voltage range (100-240V AC), making it versatile for various environments
-
Space-Saving: Compact and easy to integrate into control panels or small spaces
-
Cost-Effective: A budget-friendly solution for basic control tasks without the need for advanced systems
-
Reliable Performance: Designed for long-lasting operation, even in challenging industrial environments
