Description

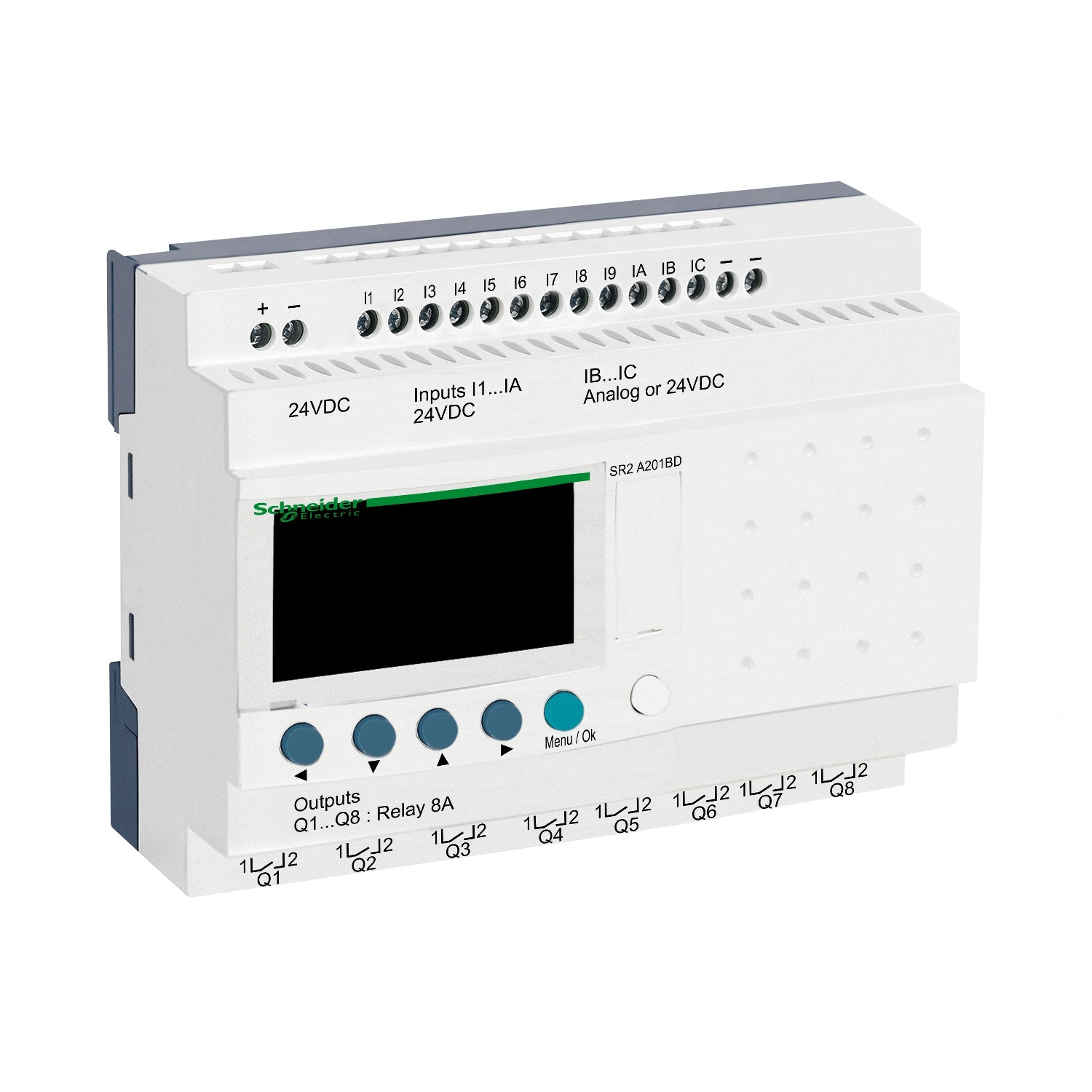

Schneider SR2A201BD | compact smart relay Zelio Logic – 20 I O – 24 V DC – no clock – display
The Schneider Electric SR2A201BD is a compact smart relay from the Zelio Logic series. Designed for small automation tasks, this relay offers 20 I/O (inputs/outputs) and operates at 24V DC. It is ideal for controlling and monitoring simple processes in various industrial applications without the need for a clock function. The relay does not include a display, making it a cost-effective solution for applications that do not require advanced visualization.
Key Features
-
Product Type: Compact smart relay
-
Series: Zelio Logic
-
Number of I/O: 20 I/O (12 digital inputs, 8 digital outputs)
-
Voltage: 24V DC
-
Display: No display included
-
Clock: No integrated clock function
-
User Interface: Basic input/output interface suitable for simple automation tasks
-
Programming: Programmable via Zelio Soft 2 software
-
Mounting: DIN rail compatible
Electrical Specifications
-
Power Supply: 24V DC
-
Input Types: Digital inputs (suitable for ON/OFF signals)
-
Output Types: Digital outputs (suitable for controlling relays, lights, and other devices)
-
Output Current: 0.5 A per output channel (maximum)
-
Digital Inputs: 12 inputs for monitoring discrete signals
-
Digital Outputs: 8 outputs for controlling connected devices
-
Relays: Available as relay outputs for easy control of various devices
-
Relay Contacts: Normally open (NO) contacts
-
Programming: Ladder diagram programming via Zelio Soft 2 software
Mechanical & Environmental Characteristics
-
Housing: Compact plastic housing
-
Mounting: Easy mounting on a DIN rail
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -20°C to +70°C
-
Protection Rating: IP20 (module body)
-
Dimensions: Space-efficient design for installations with limited space
Applications
-
Small Automation Systems: Ideal for controlling simple machines, HVAC systems, and lighting control in buildings
-
Process Control: Used in small manufacturing processes where simple ON/OFF control is sufficient
-
Energy Management: Suitable for basic energy monitoring and control systems
-
Security and Alarms: Can be used for simple monitoring and controlling of alarms and security systems
-
Home Automation: Provides automation solutions for home systems such as lighting and HVAC control
Advantages
-
Compact Design: Space-saving and easy to integrate into control panels
-
Cost-Effective: Ideal for small-scale applications that don’t require advanced features
-
No Display, Simplified Use: Suitable for applications where a display is not required, reducing overall cost
-
Flexible I/O Configuration: 20 I/O points provide enough flexibility for simple automation tasks
-
Reliable Operation: Operates in a wide range of industrial environments with high durability
