Schneider RE22R1AMR | Modular timing relay, 8 A, 0.05 s…300 h, 1 CO, power on delay , 24…240 V AC/DC

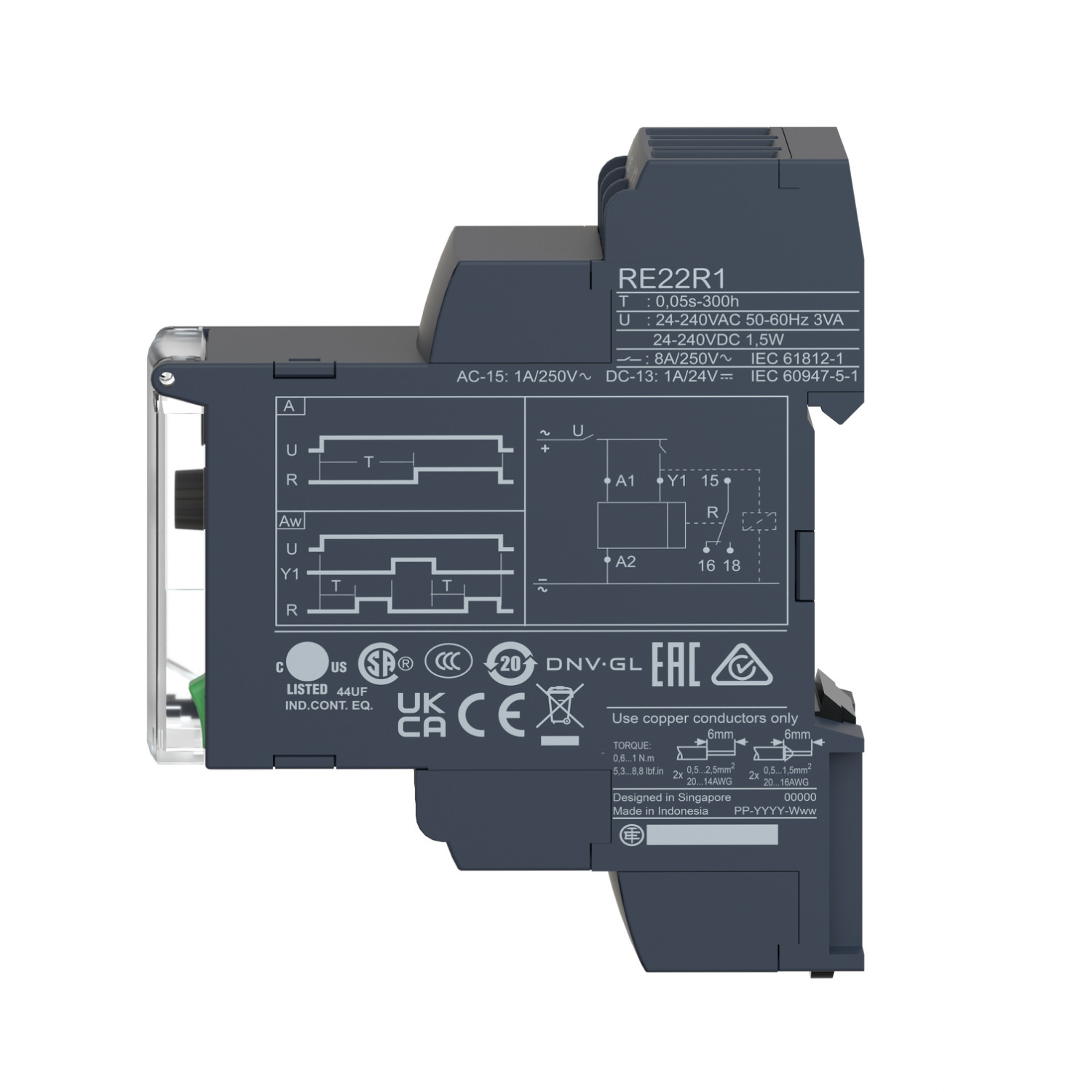

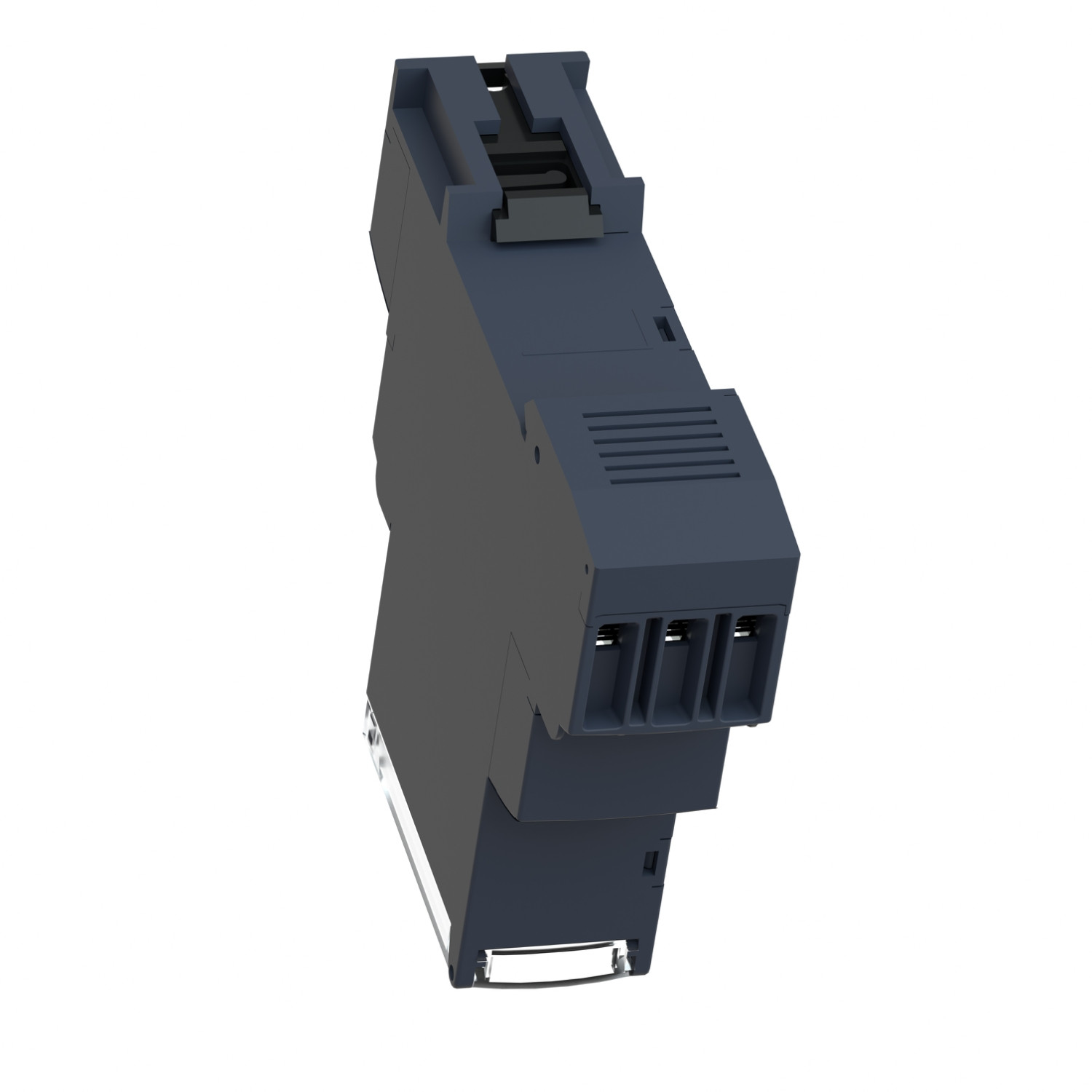

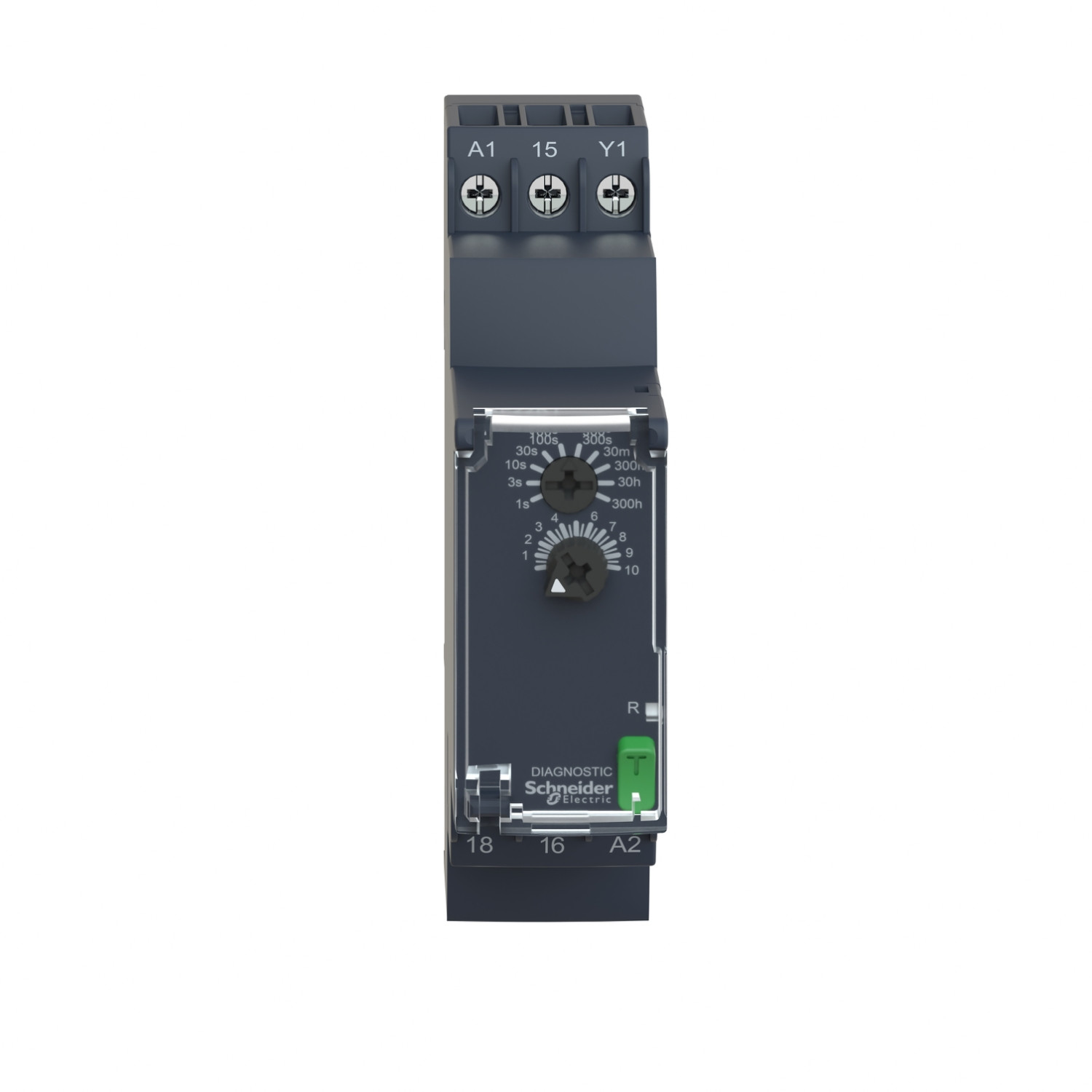

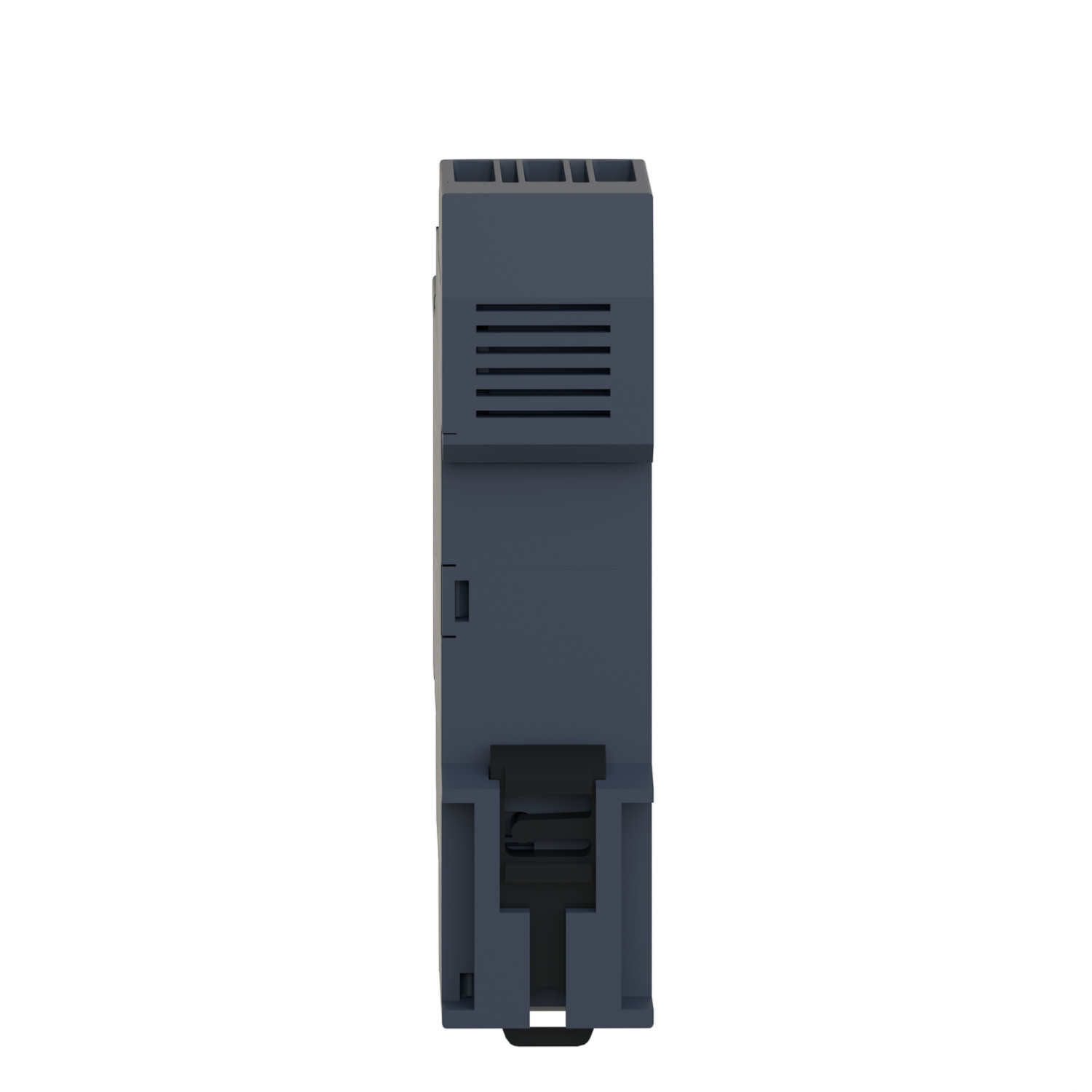

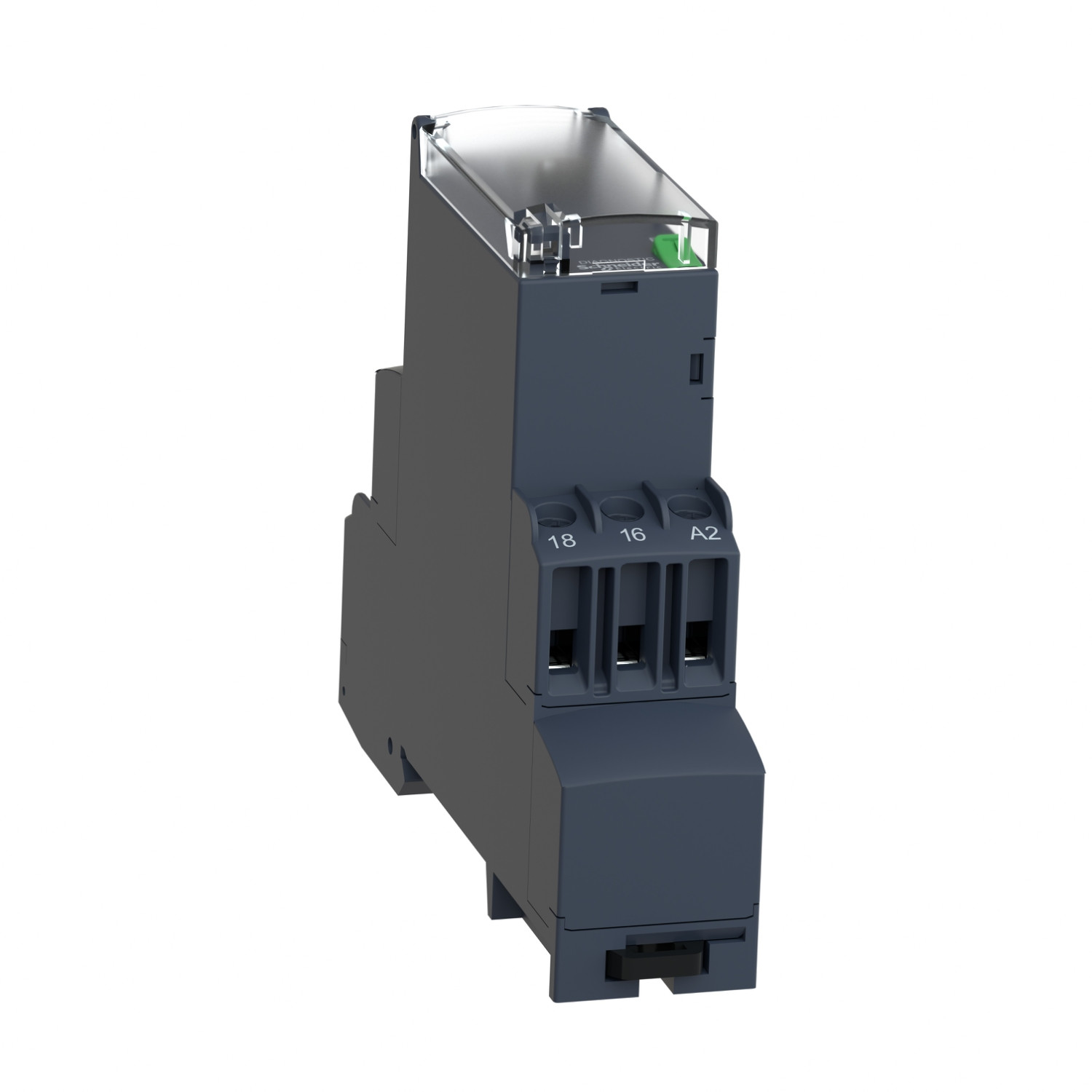

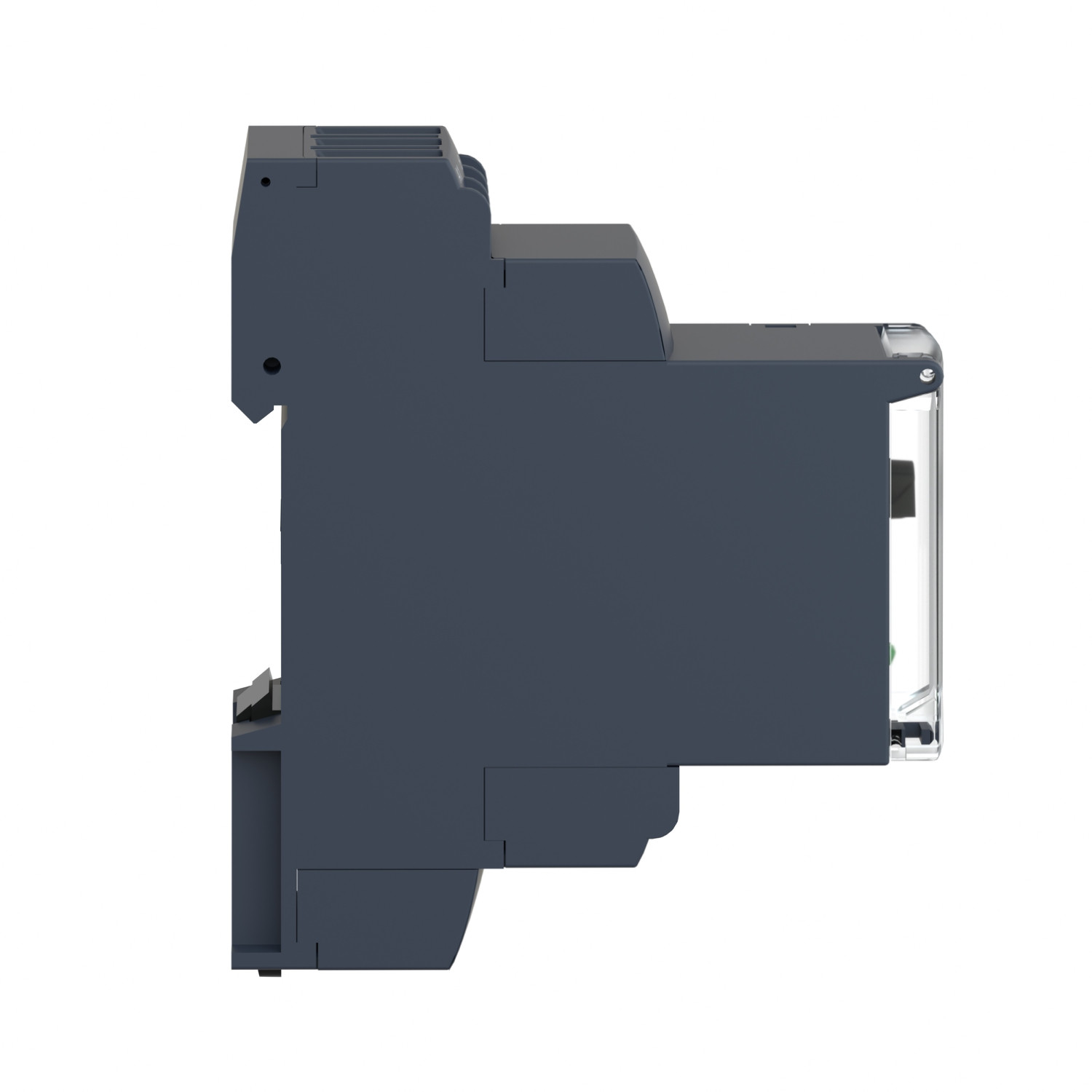

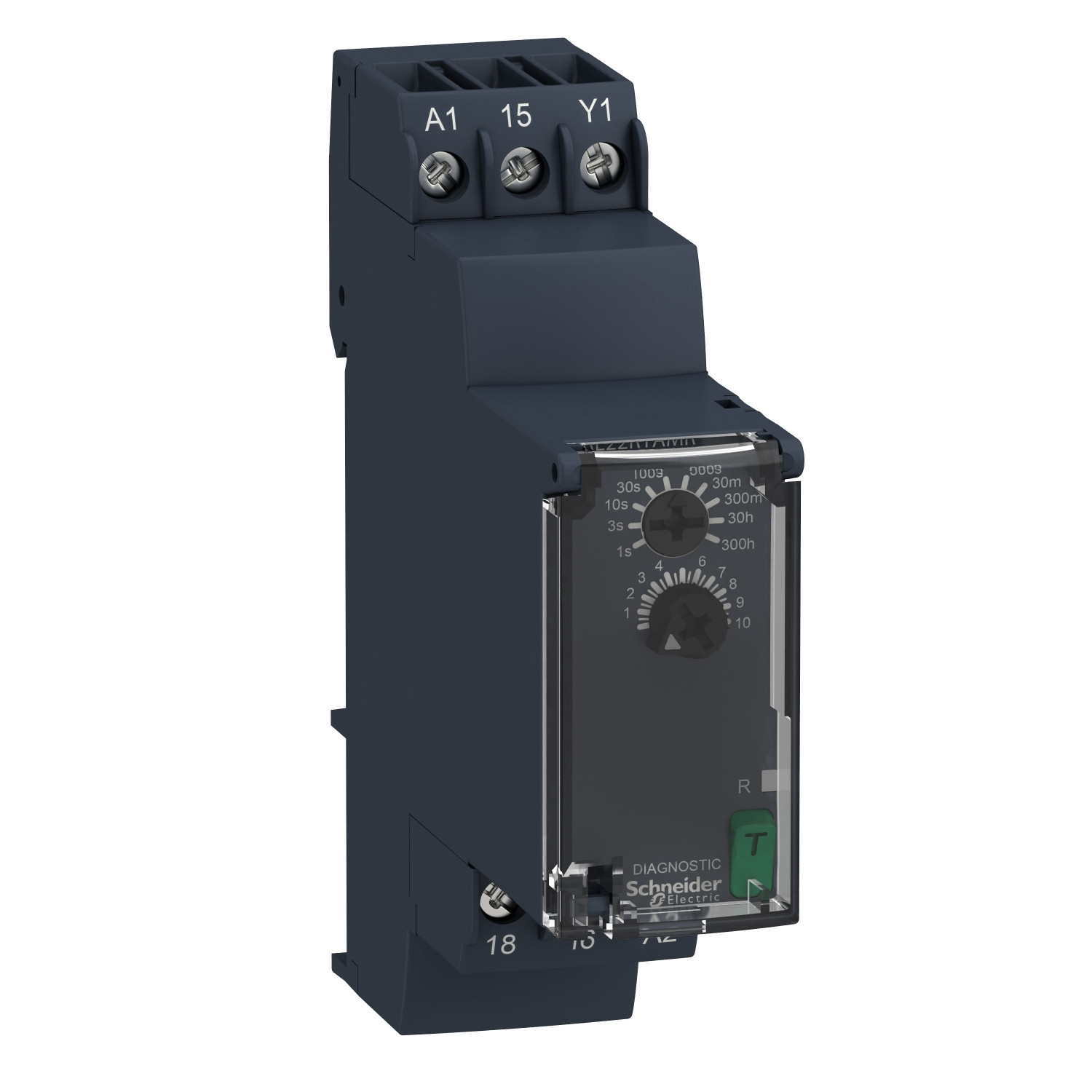

Schneider RE22R1AMR Modular Timing Relay
The Schneider RE22R1AMR is a versatile modular timing relay engineered to provide accurate timing control in a wide range of applications. Here are its key specifications and features:
- Timing Range: The timing relay offers a wide timing range from 0.05 seconds to 300 hours, allowing for precise control over time-sensitive operations.
- Contact Configuration: It features 1 CO (changeover) contact, providing flexibility in switching between different circuits or devices.
- Operating Mode: The relay is designed for power on delay, ensuring that the connected load receives power after a specified delay period.
- Voltage Compatibility: It supports a wide voltage range of 24 to 240 volts AC/DC, making it suitable for use in various electrical systems.
- Current Capacity: With a current rating of 8 amps, the relay can handle moderate to high current loads with ease.
- Modular Design: The modular construction of the RE22R1AMR allows for easy integration into control panels and systems, facilitating installation and maintenance.
Applications:
- Industrial Automation: Ideal for controlling timing sequences in industrial machinery and processes.
- HVAC Systems: Used for time-delayed functions in heating, ventilation, and air conditioning systems.
- Lighting Control: Provides timed switching for lighting systems in commercial and residential buildings.
- Pump Control: Enables precise timing control for pumps and motors in water supply and wastewater systems.
- Automated Equipment: Suitable for integrating with automated equipment and control systems requiring timed operations.
Benefits:
- Precision Timing: Ensures accurate and reliable timing control for critical operations.
- Versatility: Compatible with a wide range of voltage inputs and applications.
- Ease of Integration: Modular design allows for seamless integration into existing control setups.
- Enhanced Control: Enables power on delay functionality, enhancing control over connected loads.
- Durable Build: Schneider Electric’s reputation for quality ensures a durable and reliable timing relay solution.
