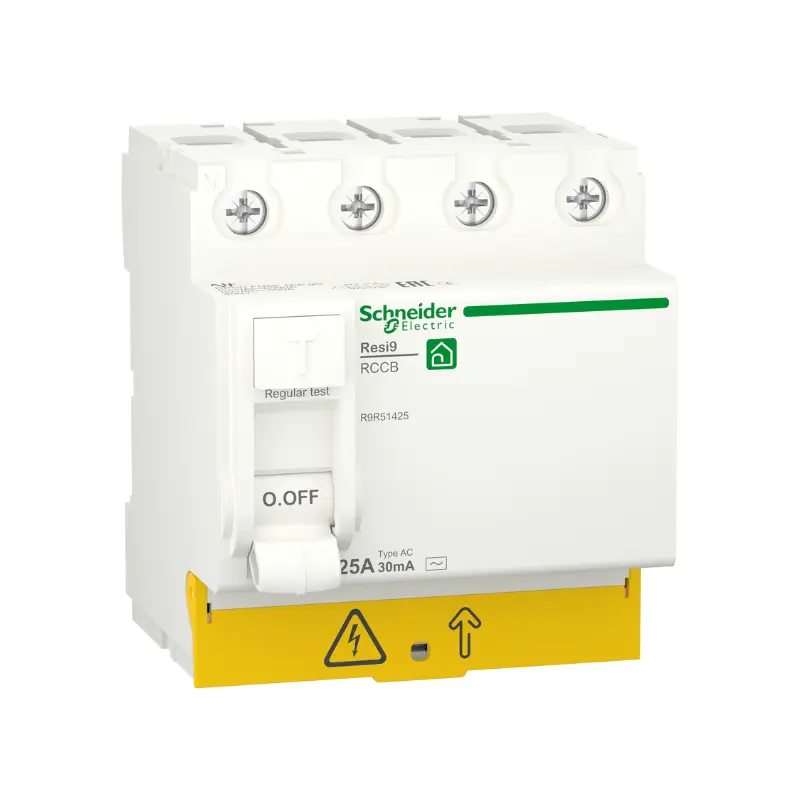

Schneider R9R51425, 4P, 25A, Resi9, Residual current circuit breaker (RCCB), AC type, 30mA
2,948 EGP
- Brand: Schneider
- Model: R9R51425
- Power range: Acti9
- colour: White
- Weight (kg): 370 g
- poles: 4p
- [In] rated current: 25 A
18 People watching this product now!
SKU:
R9R51425
Category: Circuit Breakers Tags: circuit breaker, function of circuit breaker, rccb, rccb circuit breaker, residual current device
Brand:Schneider
Description
Description
Schneider R9R51425, 4P, 25A, Resi9
Residual current circuit breaker (RCCB), AC type, 30mA
Reliable Residual Current Protection with Schneider R9R51425 RCCB
Schneider R9R51425 circuit breaker rccb is a high-performance residual current circuit breaker designed to enhance safety in residential electrical systems.
Featuring a 4-pole configuration and a rated current of 25A, also this device is engineered to detect and prevent electric shock risks due to leakage currents.
With a 30mA sensitivity, it offers precise protection against direct or indirect contact, so reducing the risk of fire and electric shock.
It’s an ideal choice for ensuring maximum safety in homes, especially in sensitive areas like bathrooms, outdoor spaces, and near power sockets.
AC Type RCCB for Versatile Applications
The AC type classification of this schneider rccb circuit breaker means it can detect and react to residual currents from sinusoidal AC waveforms,
so making it suitable for a wide range of typical household electrical appliances and installations.
Its instantaneous tripping ensures rapid disconnection in the event of a fault,
so thereby limiting the exposure time to electric shock and minimizing potential damage.
Schneider R9R51425 circuit breaker Compliant with International Safety Standards
Engineered for reliability and compliance, schneider rccb circuit breaker adheres to strict safety regulations including EN/IEC 61008-1 and EN/IEC 61008-2-1 standards.
It boasts a rated breaking and making capacity of 500A and a conditional short-circuit current of 6kA,
so ensuring robust protection even under demanding electrical fault conditions.
These certifications and performance figures make it a dependable choice for residential circuit protection.
Voltage and Frequency Compatibility
This RCCB is optimized for use with 400V AC operational voltage and supports both 50Hz and 60Hz network frequencies.
Its voltage-independent tripping technology guarantees consistent protection regardless of voltage fluctuations,
so making it reliable under varying electrical supply conditions.
The rated insulation voltage of 440V and impulse withstand voltage of 4kV further reinforce its suitability for diverse environments.
Durable Design and Long Lifespan
Built for long-term performance, R9R51425 offers outstanding durability with a mechanical endurance of up to 20,000 cycles and electrical endurance of up to 10,000 cycles.
These impressive figures ensure a long operational life with minimal maintenance, so providing consistent protection for years to come.
Residual current circuit breaker rccb
Schneider R9R51425 circuit breaker Compact, DIN Rail Mountable for Easy Installation
Installation is quick and convenient thanks to its DIN rail mounting system.
The device measures 72mm wide, 81mm high, and 73mm deep, and it occupies 8 modules (9mm pitches) on a DIN rail.
Its compact design saves space in distribution boards and makes it easy to integrate into existing electrical panels.
User-Friendly Features and Indicators
The RCCB is equipped with a simple toggle control for manual switching and an intuitive ON/OFF status indicator,
so allowing users to easily monitor its operational state. This enhances user safety and ensures fast visual diagnostics in case of faults.
Robust Environmental Resistance
Designed for varied environmental conditions, R9R51425 functions reliably in temperatures ranging from -5°C to +40°C,
also with storage capabilities from -40°C to +80°C. It has a high relative humidity tolerance of 95% at 55°C,
so making it suitable for tropical climates. It also features IP20 protection, which increases to IP40 when installed inside a modular enclosure.
Circuit breaker Flexible and Secure Wiring Options
The RCCB supports tunnel-type terminals for both rigid (1–35 mm²) and flexible (1–25 mm²) wires,
so including those with ferrules. The tightening torque is 3.5 Nm, and the wire stripping length is 15 mm,
so ensuring a secure and easy wiring process for electricians and installers.
Circuit breaker earth leakage Efficient Packaging and Delivery
Schneider R9R51425 circuit breaker earth leakage is available in three packaging formats, so making it easy to handle and ship for both individual and bulk purchases.
Single units are packed in compact boxes, while large-scale orders are supported with secure bulk packaging,
so maintaining product integrity during transportation.
R9R51425 residual current device rccb Ideal for Residential Safety Systems
Residual current circuit breaker rccb is a must-have for modern residential electrical installations.
Its superior safety features, durable build, ease of installation, and compliance with international standards make
R9R51425 residual current device rccb top choice for homeowners and electricians looking to protect people and property from electrical hazards.
View more of Circuit Breakers
Additional information
Additional information
Brand |
Schneider |
---|---|
Part Number |
R9R51425 |
Poles description |
4P |
[In] rated current |
25 A |
Earth-leakage sensitivity |
30 mA |
Earth-leakage protection time delay |
Instantaneous |
Rated breaking and making capacity |
Im 500 A conforming to EN/IEC 61008 |
Rated conditional short-circuit current |
Inc 6 kA |
Network frequency |
50/60 Hz |
[Ue] rated operational voltage |
400 V AC 50/60 Hz |
Residual current tripping technology |
Voltage independent |
[Ui] rated insulation voltage |
440 V |
[Uimp] rated impulse withstand voltage |
4 kV |
Surge current |
250 A |
9 mm pitches |
8 |
Height |
81 mm |
Width |
72 mm |
weight |
370 g |
depth |
44 mm |
