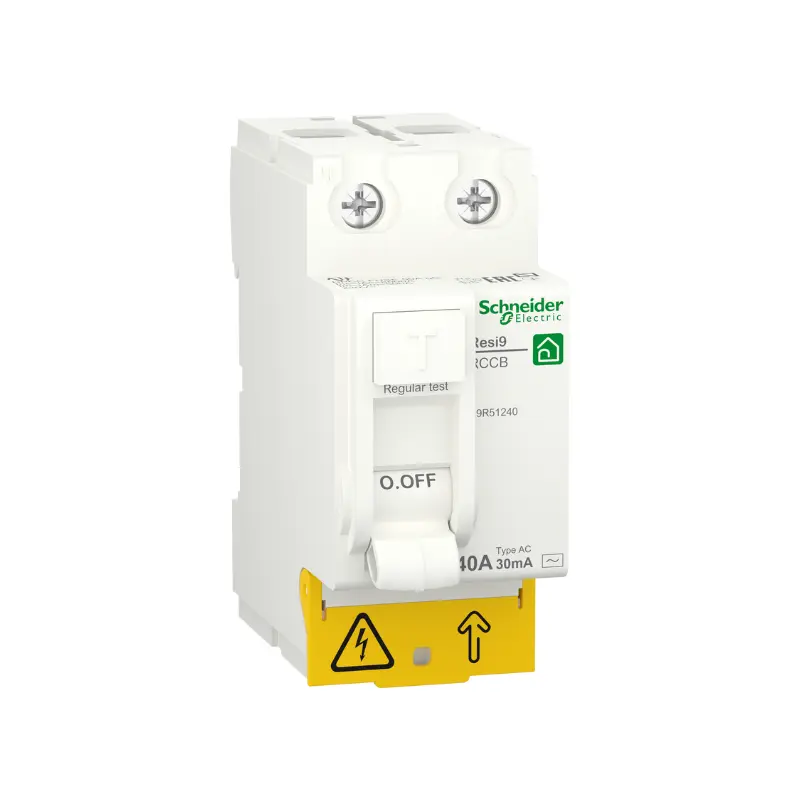

Schneider R9R51240, 2P, 40A, Resi9, Residual current circuit breaker (RCCB), 30mA, AC type
2,419 EGP
- Brand: Schneider
- Model: R9R51240
- range: Resi9
- colour: White
- Weight (kg): 180 g
- poles: 2p
- [In] rated current: 40 A
12 People watching this product now!
SKU:
R9R51240
Category: Circuit Breakers Tags: Residual current circuit breaker, Residual Current Circuit Breaker 40A 30mA, Schneider R9R51240, Schneider Resi9 RCCB, Schneider Residual Current Circuit Breaker
Brand:Schneider
Description
Description
Schneider R9R51240, 2P, 40A, Resi9
Residual current circuit breaker (RCCB), 30mA, AC type
Reliable Protection with Schneider R9R51240 Circuit Breaker
Schneider R9R51240 RCCB is a high-performance residual current circuit breaker designed to ensure the safety of both individuals and electrical installations.
Part of the trusted Resi9 range from Schneider Electric, this 2-pole (2P) schneider circuit breaker rccb provides 40A rated current and 30mA sensitivity,
so offering exceptional protection against earth leakage and electric shock.
With its AC type classification, it is ideally suited for residential and light commercial applications.
Superior Earth-Leakage Protection for Residential Safety
Engineered to detect leakage currents effectively, this R9R51240 Circuit Breaker Schneider AC type ensures fast
and accurate tripping when earth leakage is detected, so protecting occupants from the dangers of electric shock.
The 30mA earth-leakage sensitivity combined with instantaneous tripping time complies with EN/IEC 61008-1
and 61008-2-1 standards, providing dependable safety.
Whether used in individual homes or apartment complexes, schneider circuit breaker rccb is a smart choice for electrical safety.
2-Pole, 40A Rated Current – Power That Protects
This 40A R9R51240 rccb circuit breaker features a 2-pole configuration, making it suitable for single-phase 230V AC systems.
With a rated insulation voltage of 440V and rated impulse withstand voltage of 4kV, it offers robust insulation performance.
The breaker boasts a conditional short-circuit current rating of 6kA and breaking/making capacity of 500A,
so ensuring it can handle surges and short circuits effectively without compromising performance.
Easy to Install with DIN Rail Mounting
Designed for quick and efficient installation, R9R51240 rccb circuit breaker supports clip-on DIN rail mounting,
so making it an ideal solution for electricians and DIY installers alike.
The tunnel-type terminals accommodate a variety of wire types — rigid, flexible,
or flexible with ferrule — from 1mm² to 35mm², simplifying the wiring process.
A yellow bottom connection cover further aids in easy cabling and maintenance access.
View more of Circuit Breakers
Additional information
Additional information
Brand |
Schneider |
---|---|
part number |
R9R51240 |
Poles description |
2P |
[In] rated current |
40 A |
Earth-leakage sensitivity |
30 mA |
Rated breaking and making capacity |
Im 500 A conforming to EN/IEC 61008 |
Rated conditional short-circuit current |
Inc 6 kA |
[Ui] rated insulation voltage |
440 V |
[Uimp] rated impulse withstand voltage |
4 kV |
Surge current |
250 A |
9 mm pitches |
4 |
Height |
81 mm |
Width |
36 mm |
Depth |
73 mm |
weight |
180 g |
Embedding depth |
44 mm |
