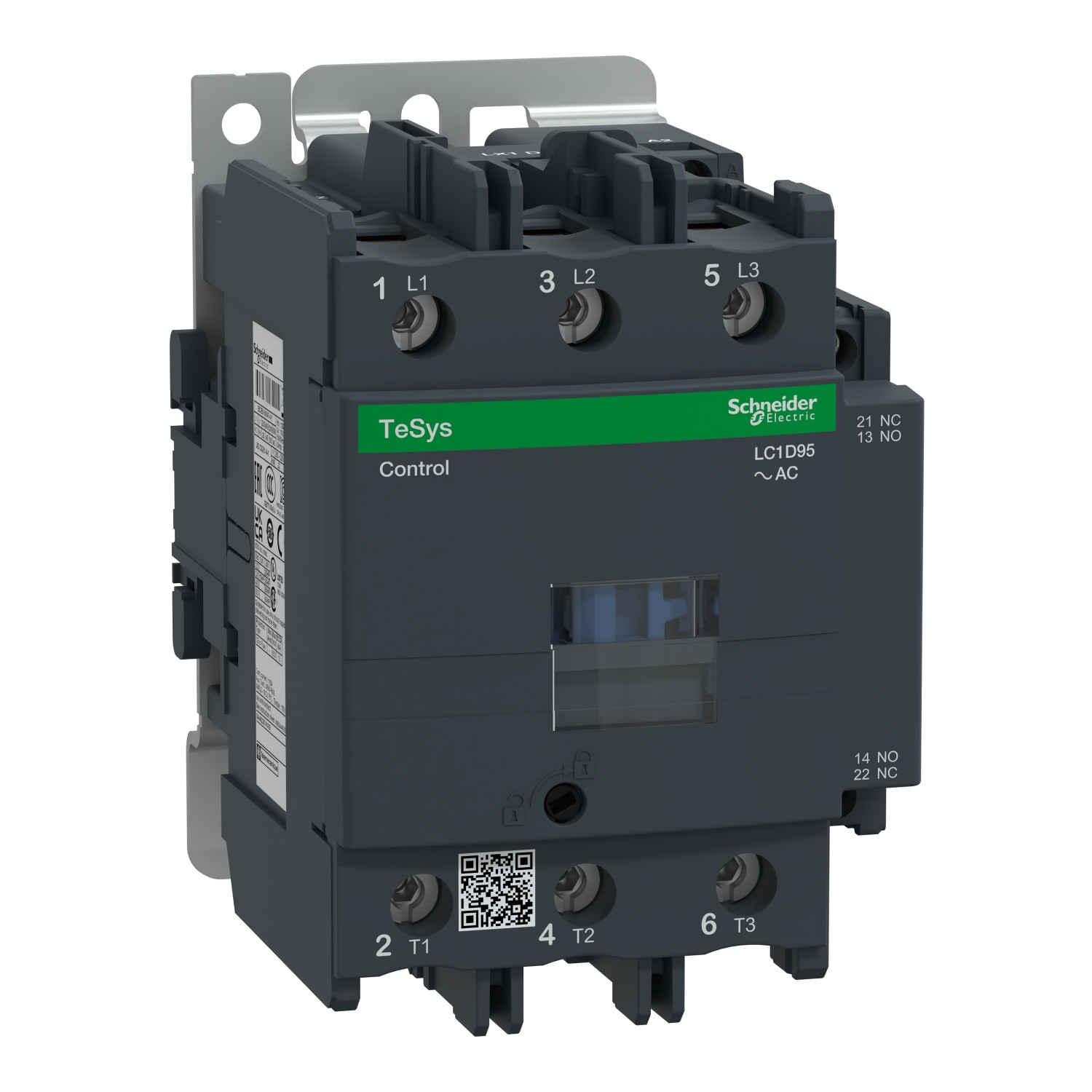

Schneider LC1D95M7 | TeSys D Contactor – 3P (3 NO) – AC-3 – ≤ 440V 95A – 220V AC 50/60Hz Coil

1. General Description

The Schneider LC1D95M7 is a high-performance TeSys D series contactor, designed for AC-3 motor control applications. It features three normally open (3 NO) contacts, making it ideal for three-phase motor switching and industrial automation. With a rated operational voltage of up to 440V and a current capacity of 95A, this contactor ensures reliable operation in demanding environments. It operates with a 220V AC coil at 50/60Hz.

2. Technical Specifications

• Series: TeSys D

• Product Type: Contactor

• Number of Poles: 3P (Three Normally Open – 3 NO)

• Rated Operational Voltage: ≤ 440V AC

• Rated Current (AC-3): 95A

• Coil Voltage: 220V AC, 50/60Hz

• Electrical Durability: High-endurance for motor switching applications

• Mounting Type: DIN rail or panel mounting

• Auxiliary Contact Compatibility: Can be equipped with additional auxiliary contact blocks

3. Key Features

• Reliable Performance: Designed for efficient motor control in industrial environments.

• Compact and Sturdy Design: Optimized for space-saving panel installation.

• Energy-Efficient Coil: Operates with a 220V AC coil, ensuring low power consumption.

• Easy Installation: Quick-connect terminals for fast and secure wiring.

• Modular Expandability: Compatible with auxiliary contacts, mechanical interlocks, and timers.

4. Applications

The LC1D95M7 is widely used in various industrial applications, including:

• Three-phase motor control systems

• Pumps, compressors, and fans

• Conveyor systems and industrial machinery

• Automation and power distribution systems

5. Compliance and Standards

• IEC 60947-4-1 (Low-voltage switchgear and controlgear – Contactors and motor starters)

• RoHS Compliance (Free from hazardous substances, environmentally friendly)

• CE Certified (Meets European safety and performance standards)

6. Conclusion

The Schneider LC1D95M7 is a robust and efficient 3P contactor, ideal for AC-3 applications up to 95A. Its high-performance design, easy installation, and compliance with international standards make it a reliable choice for industrial motor control and automation systems.
