Schneider LC1D25F7 Contactor: Enhancing Electrical System Efficiency

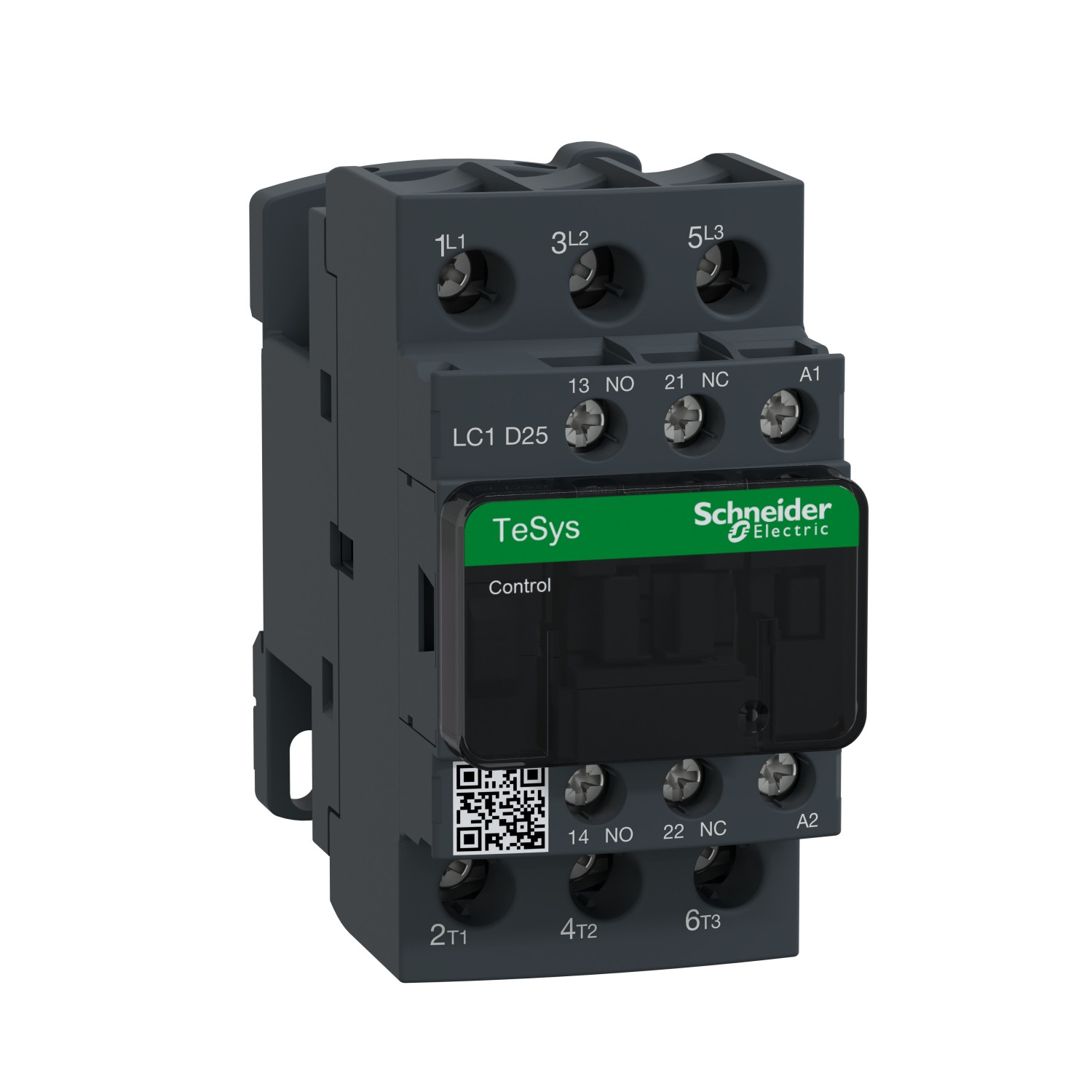

Schneider LC1D25F7 | TeSys D Contactor – 3P (3 NO) – 25A – 110V AC Coil
1. General Description
The Schneider LC1D25F7 is a TeSys D series contactor, designed for efficient motor control and power switching applications. It features three normally open (3 NO) contacts and is rated for AC-3 applications up to 25A at ≤ 440V. The 110V AC coil ensures reliable operation in industrial automation, HVAC, and electrical distribution systems.
2. Technical Specifications
-
Product Series: TeSys D
-
Contactor Type: 3-pole (3 NO)
-
Utilization Category: AC-3
-
Rated Operational Voltage: ≤ 440V
-
Rated Current (AC-3): 25A
-
Coil Voltage: 110V AC (50/60 Hz)
-
Electrical Durability: Up to 1 million operations
-
Mechanical Durability: Up to 10 million operations
-
Mounting Type: DIN rail or panel mounting
-
Operating Temperature Range: -5°C to +60°C
-
Certifications: CE, UL, IEC
3. Key Features
-
Reliable and Efficient Motor Control: Designed for switching three-phase motors and power circuits.
-
High Performance in AC-3 Applications: Handles up to 25A at ≤ 440V.
-
110V AC Coil: Ensures stable operation in industrial and commercial control systems.
-
Compact and Modular Design: Allows for easy integration into control panels.
-
Long Lifespan: Up to 10 million mechanical operations for extended durability.
-
Versatile Installation: Supports DIN rail and panel mounting for flexibility.
4. Applications
-
Three-phase motor control
-
Industrial automation and power distribution
-
Pumps, compressors, and conveyor systems
-
HVAC systems
-
General-purpose power switching
5. Compliance and Standards
-
IEC 60947-4-1 (Low-voltage switchgear and controlgear)
-
CE Certified
-
UL Listed
-
RoHS Compliant
6. Conclusion
The Schneider LC1D25F7 TeSys D Contactor is a high-performance and durable solution for motor control and power switching applications. With a 25A current rating, 110V AC coil, and robust design, it is an excellent choice for industrial automation, HVAC systems, and electrical control applications.
