Schneider E3SUPS20K3IB2 Easy UPS 3S 20 kVA 400V 3:1 UPS, 3 internal 7Ah modular battery strings

13 People watching this product now!
Brand:Schneider
Description

Description

Schneider E3SUPS20K3IB2 Easy UPS

3S 20 kVA 400V 3:1 UPS, 3 internal 7Ah modular battery strings

High-Performance Power Backup for Critical Applications

The Easy UPS 3S 20 kVA 400V 3:1 is a robust and efficient uninterruptible power supply designed for small and medium-sized data centers and electrical rooms. It ensures reliable power protection with double-conversion online technology, delivering consistent voltage output to safeguard critical systems.

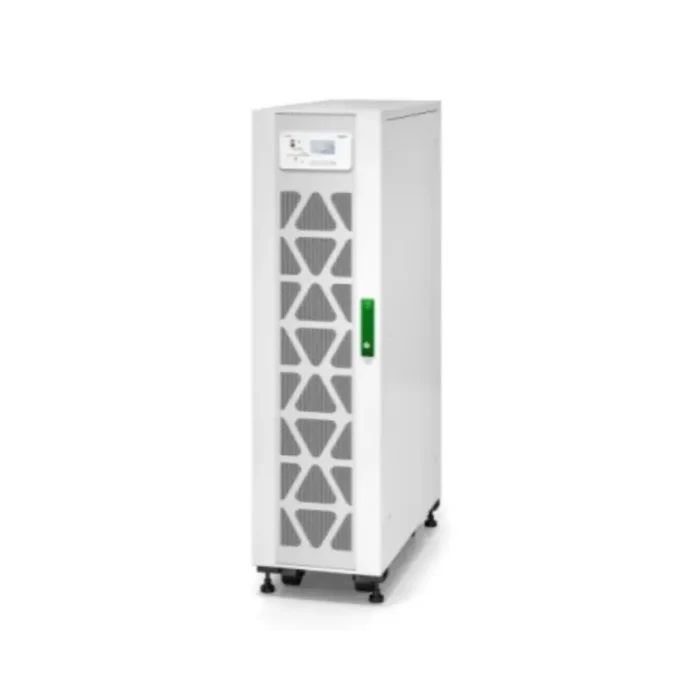

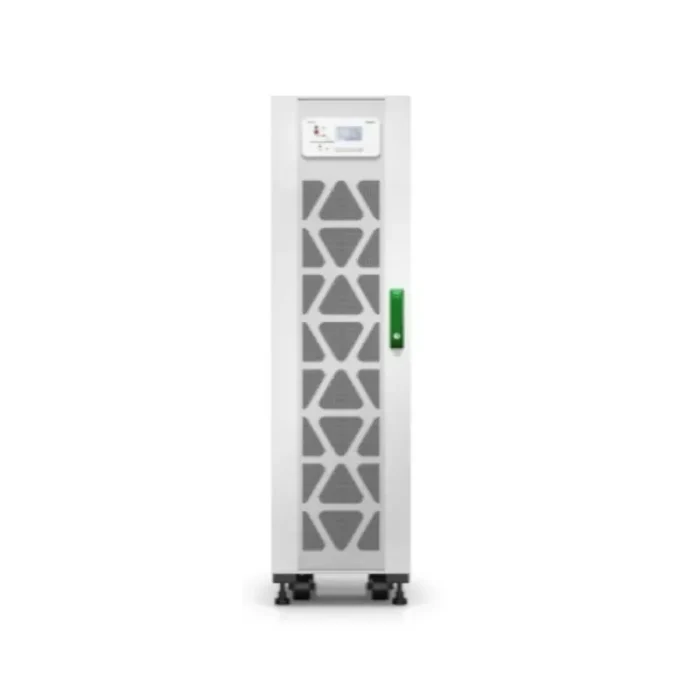

20 kVA UPS with a robust design for power outage protection

Easy UPS 3S 20 kVA – Reliable Power Protection

Optimized for Efficiency and Performance

This UPS supports a 20 kVA / 20 kW load with a power factor of 1.0, maximizing energy efficiency. It maintains an input power factor of 0.99 at full load while keeping harmonic distortion below 5%, ensuring stable performance without interfering with other electrical systems.

Versatile Voltage Compatibility for Various Setups

The UPS operates on a 400V three-phase input and provides a 230V single-phase output with options for 220V and 240V. This adaptability makes it suitable for diverse electrical infrastructures in IT, industrial, and commercial environments.

Built-In Battery System for Extended Backup Time

Equipped with three internal 7Ah modular battery strings, the UPS ensures continued operation during power outages. The VRLA (Valve-Regulated Lead-Acid) batteries provide stable performance and reliable backup power for mission-critical systems.

Three 7Ah internal battery modules providing reliable backup power

Modular Battery System for Extended Backup

Advanced Overload and Short-Circuit Protection

The Easy UPS 3S handles overloads of up to 125% for 10 minutes and 150% for 60 seconds, offering superior protection against unexpected power surges. It also features a maximum short-circuit current of 10 kA, safeguarding connected devices against sudden electrical faults.

Rugged Design for Harsh Environments

This UPS is built to perform in demanding conditions, featuring conformance-coated circuit boards and a dust filter for added protection. It operates within a temperature range of 0 to 40°C and supports up to 95% relative humidity, making it ideal for industrial and commercial spaces.

Compact and Space-Saving Construction

With a height of 140 cm, width of 38 cm, and depth of 90.7 cm, the UPS is designed for easy installation in tight spaces. Despite its powerful features, it remains manageable at 231 kg, allowing for easier placement in server rooms and electrical setups.

User-Friendly Features for Easy Management

The USB compatibility allows for seamless integration with management software, enabling remote monitoring and quick diagnostics. The circuit breaker and fuse protection ensure additional safety against electrical anomalies.

Low Noise and Efficient Heat Management

Operating at 60 dBA, this UPS runs quietly, making it suitable for office and industrial settings. The heat dissipation of 870W ensures efficient cooling, preventing overheating and extending the lifespan of components.

Certified for Compliance and Reliability

This UPS meets global standards with CE, EAC, and RCM certifications, ensuring compliance with electrical safety and performance requirements. The IP20 protection rating guarantees resistance against solid objects larger than 12.5mm.

Easy Installation and Maintenance

Designed for quick deployment and straightforward maintenance, the UPS comes with an installation guide and modular battery slots, allowing for hassle-free replacement. Its double-conversion online topology ensures uninterrupted power without frequent intervention.

Comprehensive Warranty and Support

The Easy UPS 3S includes a one-year on-site repair or replacement warranty with factory-authorized startup support, providing peace of mind for businesses relying on continuous power protection.

This UPS is a reliable, high-performance power backup solution that meets the demands of modern IT infrastructure, industrial operations, and commercial applications.
