Circuit Breakers – Comprehensive Guide to Electrical Protection

Circuit breakers are essential safety devices designed to protect electrical circuits from damage caused by overloads, short circuits, and other electrical faults. These devices automatically interrupt the electrical flow when excessive current is detected, preventing potential hazards such as equipment damage and fire risks. Whether in residential, commercial, or industrial applications, circuit breakers play a crucial role in ensuring electrical safety and system reliability.

Why Are Circuit Breakers Important?

Electrical protection is a key component of any safe electrical system. Without circuit breakers, power surges and faults could lead to dangerous situations, including fires, electrocution, and equipment failure. Unlike traditional fuses, which need to be replaced after tripping, circuit breakers offer the advantage of being resettable, making them a more cost-effective and reliable solution.

Types of Circuit Breakers

Circuit breakers come in various types, each designed to serve specific applications. Below are some of the most common types:

1. Miniature Circuit Breakers (MCBs)

MCBs are small, resettable devices used in residential and commercial electrical panels. They provide protection against overloads and short circuits, ensuring the safety of household appliances and office equipment.

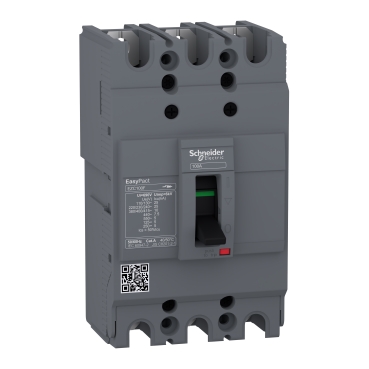

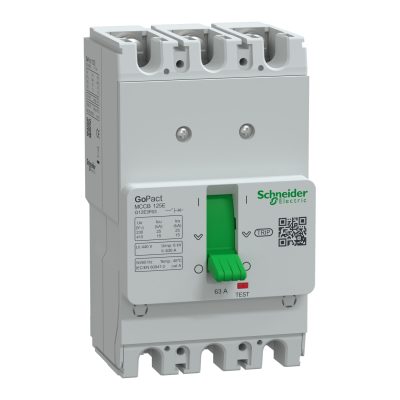

2. Molded Case Circuit Breakers (MCCBs)

MCCBs are designed for higher current capacities and are commonly used in industrial and commercial applications. These circuit breakers offer adjustable trip settings, allowing for greater control over electrical protection.

3. Air Circuit Breakers (ACBs)

ACBs are typically found in high-voltage applications where large electrical loads need protection. They use air as the arc-extinguishing medium and are commonly installed in industrial plants and power distribution systems.

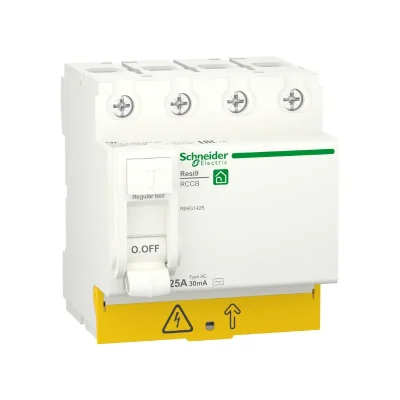

4. Residual Current Circuit Breakers (RCCBs)

RCCBs are specialized devices that protect against electrical shocks and leakage currents. They are especially useful in residential and commercial buildings to ensure human safety.

5. Smart Circuit Breakers

With advancements in technology, smart circuit breakers have emerged, offering remote control, real-time monitoring, and automated shutdown features. These breakers enhance efficiency, reduce downtime, and provide better system management.

How Circuit Breakers Work

Circuit breakers operate by detecting abnormal electrical conditions and interrupting the circuit to prevent damage. The working principle involves three main components:

1. Sensing Mechanism – Detects excessive current flow.
2. Trip Mechanism – Activates when the current exceeds the breaker’s rating.
3. Interruption Mechanism – Stops the flow of electricity to prevent hazards.
